Description

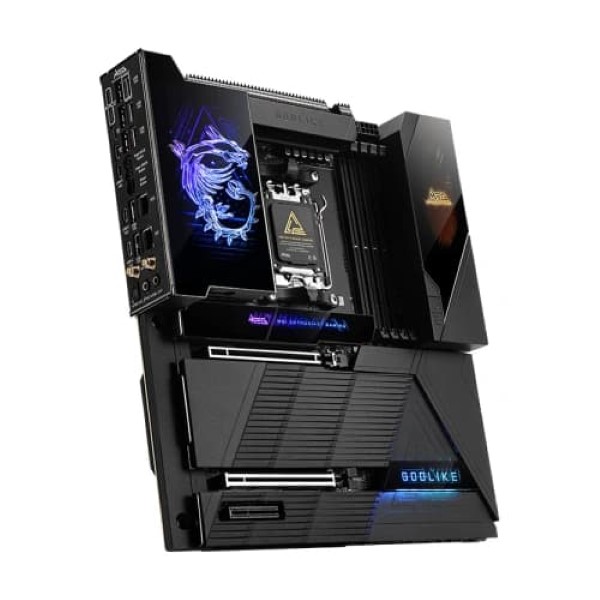

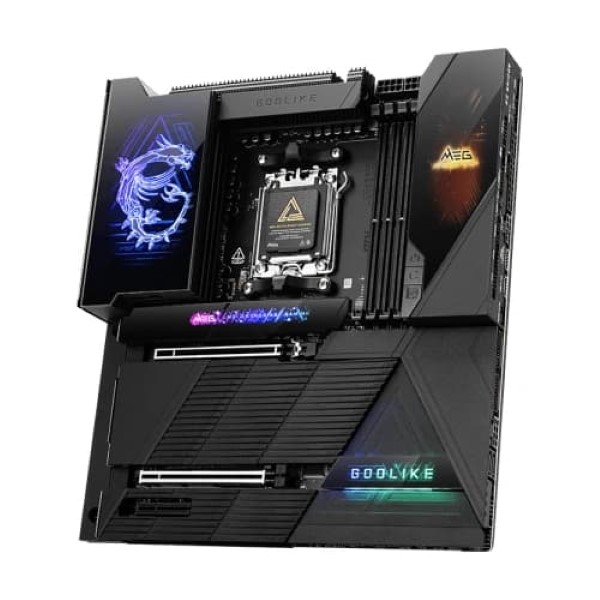

MSI MEG X870E Godlike WIFI DDR5 AMD AM5 E-ATX Motherboard
Features:
MSI MEG X870E Godlike WIFI Gaming Motherboard
Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
Supports DDR5 Memory, Dual Channel DDR5 8400+MT/s (OC)
Dynamic Dashboard III:
MSI MEG X870E Godlike WIFI a 3.99-inch LCD for real-time hardware monitoring, troubleshooting, BIOS updates, and personalized display options, enhancing the overall user experience.
M.2 XPANDER-Z SLIDER GEN5:
The one-slot-thick M.2 expansion card features dual high-speed Gen5 M.2 slots, and the EZ Slide design makes SSD upgrades effortless.
Ultra Performance:
MSI MEG X870E Godlike WIFI 24+2+1 Duet Rail Power System, 110A SPS, OC Engine, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 10-layer PCB made by 2oz thickened copper and server-grade level material.
Frozr Guard:
Wavy fin design, Direct Touch Cross Heat-pipe, MOSFET Baseplate, 9W/mK thermal pads, Double-Sided M.2 Shield Frozr and Frozr AI software ensure the utmost performance with low temperature.
EZ DIY:
EZ Link, EZ PCIe Release, EZ Magnetic M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna.
Ultra Connect:
10G LAN + 5G LAN, Full-speed Wi-Fi 7 Solution and USB4 – The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission.
Lightning Fast Game Experience:
MSI MEG X870E Godlike WIFI PCIe 5.0 slots, Lightning Gen 5 x4 M.2, Front USB 20G with 60W USB Power Delivery.
Audio Boost 5 HD:
Ultimate audio solution with latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience.
Built for unparalleled performance on the AMD X870E chipset and Ryzen 9000 processors, the MEG X870E GODLIKE equips true Wi-Fi 7, 10G Super LAN, high-speed USB4, Supplemental PCIe Power, and the revolutionary Dynamic Dashboard III. Dominate tournaments and immerse in extreme gaming with the MEG X870E GODLIKE.
The GODLIKE-exclusive EZ Link design consolidates most of the case front panel headers, fan headers, and RGB headers into the EZ Bridge and EZ Control Hub, simplifying installation and creating a cleaner aesthetic.
M.2 XPANDER-Z SLIDER GEN5
In addition to the 5 built-in M.2 slots, the MEG X870E GODLIKE also comes with the all-new M.2 XPANDER-Z SLIDER GEN5 card, providing even more high-speed storage expansion options
Additional information
| Motherboard brand chipset | |
|---|---|
| MOTHERBOARD CHIPSET | |
| Motherboard form factor | |
| Motherboard socket |
Brand
MSI
Specification
| Platform | AMD |
| Socket | AM5 |
| Cpu Type | Ryzen 9000,Ryzen 8000,Ryzen 7000 |
| Chipset | X870E |
| Memory Speed | up to 8400+ |
| Max Memory Support | 256 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | Supports AMD POR Speed and JEDEC Speed |
| Supports Memory Overclocking and AMD EXPOTM | |
| Supports Non-ECC, Un-buffered memory | |
| Supports CUDIMM, Clock Driver bypass mode only | |
| * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. | |
| ** Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or Brand Website. | |
| Graphics Port | 2x Type-C DisplayPort |
| USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz* | |
| * Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. | |
| Expansion Slots | 2x PCI-E x16 slot |
| 1x PCI-E x4 slot | |
| PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) | |
| PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) | |
| PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) | |
| PCI_E1 & PCI_E2 slots | |
| • Supports up to PCIe 5.0 x16/ x0 or x8/ x8 (For Ryzen™9000/ 7000 Series processors) | |
| • Supports up to PCIe 4.0 x8/ x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors) | |
| • Supports up to PCIe 4.0 x4/ x0 (For Ryzen™ 8500/ 8300 Series processors) | |
| PCI_E3 slot | |
| • Supports up to PCIe 4.0 x4 | |
| * PCI_E3 slot will run at x2 speed when installing device in the M2_4 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_4 slot. | |
| Please refer to the PCIe configuration table in the manual for more details. | |
| Wireless Networking | WiFi 7,Bluetooth 5.4 |
| Back Panel I/O Ports | USB 10Gbps (Type-A) |
| Flash BIOS Button | |
| Clear CMOS Button | |
| Smart Button | |
| 10G LAN | |
| 5G LAN | |
| Wi-Fi / Bluetooth | |
| HD Audio Connectors | |
| USB 40Gbps (Type-C) | |
| USB 10Gbps (Type-C) | |
| USB 10Gbps (Type-A) | |
| Optical S/PDIF-Out | |
| Internal I/O Connector | 1x Power Connector(ATX_PWR) |
| 2x Power Connector(CPU_PWR) | |
| 1x Power Connector(PCIE_PWR 8pin) | |
| 1x Front Type-C Quick Charge Connector(PD_PWR1) | |
| 1x CPU Fan | |
| 2x Combo Fan (Pump_Sys Fan) | |
| 1x EZ Conn-header (JAF_2) | |
| 2x Front Panel (JFP) | |
| 1x Chassis Intrusion (JCI) | |
| 1x Front Audio (JAUD) | |
| 2x Thermal Sensor connectors(T_SEN) | |
| 1x Tuning Controller connector(JDASH) | |
| 1x Addressable V2 RGB LED connector (JARGB_V2) | |
| V-check point | |
| 4x USB 2.0 ports | |
| 4x USB 5Gbps Type A ports | |
| 1x USB 10Gbps Type C ports | |
| 1x USB 20Gbps Type C ports | |
| Form Factor | E-ATX |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only. |
