Description

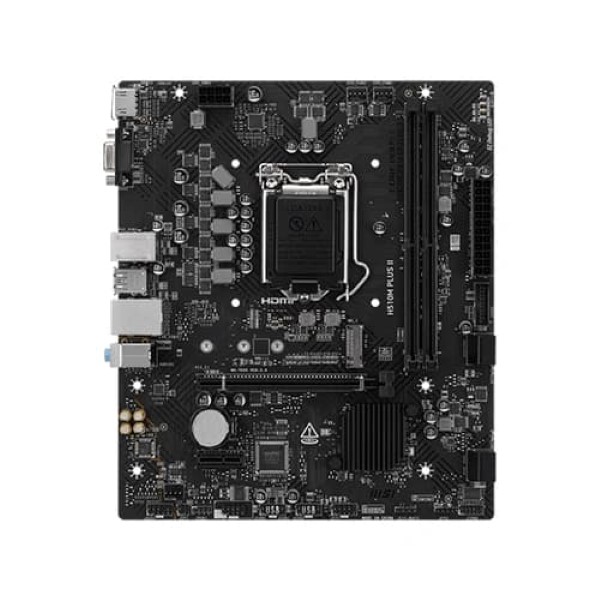

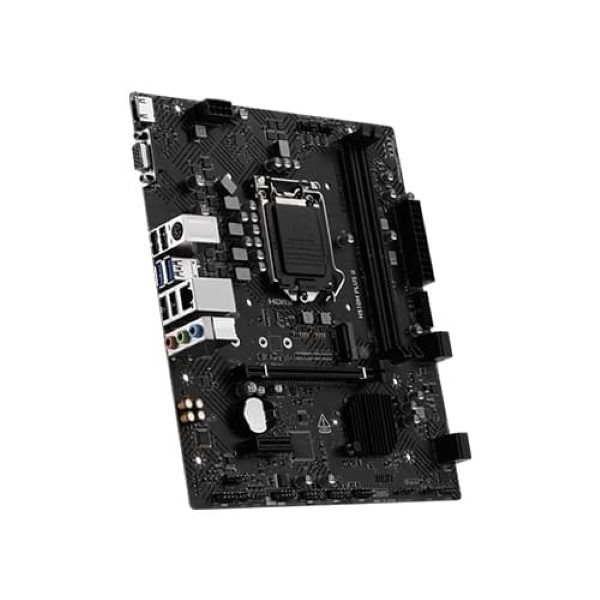

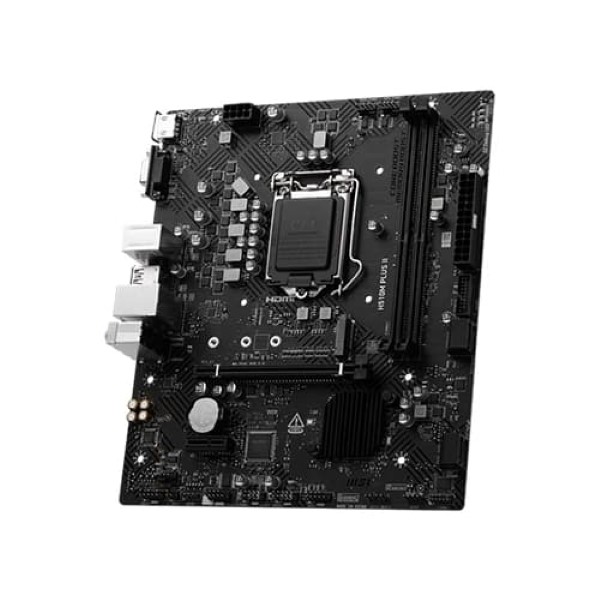

MSI H510M Plus II DDR4 Intel LGA1200 M-ATX Motherboard
Features:
MSI H510M Plus II Motherboard supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors for LGA 1200 socket
Supports DDR4 Memory 2933 MT/s (MAX)
Core Boost
MSI H510M Plus II with premium layout and digital power design to support more cores and provide better performance
Memory Boost:
Advanced technology to deliver pure data signals for the best performance, stability and compatibility
Audio Boost:
Reward your ears with studio grade sound quality
Steel Armor:
MSI H510M Plus II protecting VGA cards against bending and EMI for better performance, stability and strength.
Tag: MSI H510M Plus II
Additional information
| Motherboard brand chipset | |
|---|---|
| MOTHERBOARD CHIPSET | |
| Motherboard form factor | |
| Motherboard socket |
Brand
MSI
Specification
| Platform | INTEL |
| Socket | LGA1200 |
| Cpu Type | 11th Gen,10th Gen, Pentium Gold |
| Chipset | Z490 |
| Memory Speed | up to 2933 |
| Max Memory Support | 64 GB |
| Supported Memory Type | DDR4 |
| Channel Supported | Dual Channel |
| Memory Feature | Memory Support 2933/ 2666/ 2400/ 2133 MHz |
| Supports 1R 2133/ 2666/ 2933 MHz for Intel Core i9/ Core i7 CPU | |
| Supports 1R 2133/ 2666 MHz for Intel Core i5/ Core i3/ Pentium Gold and Celeron CPU | |
| Supports Dual-Channel mode | |
| Supports non-ECC, un-buffered memory | |
| Supports Intel Extreme Memory Profile (XMP) | |
| Graphics Port | 1x HDMI |
| Support HDMI 1.4, maximum resolution of 4K 30Hz* | |
| 1x VGA | |
| Support VGA, maximum resolution of 2048×1536 50Hz, 1920×1200 60Hz | |
| *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. | |
| Expansion Slots | 1x PCI-E x16 slot |
| 1x PCI-E x1 slot | |
| PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU) | |
| PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) | |

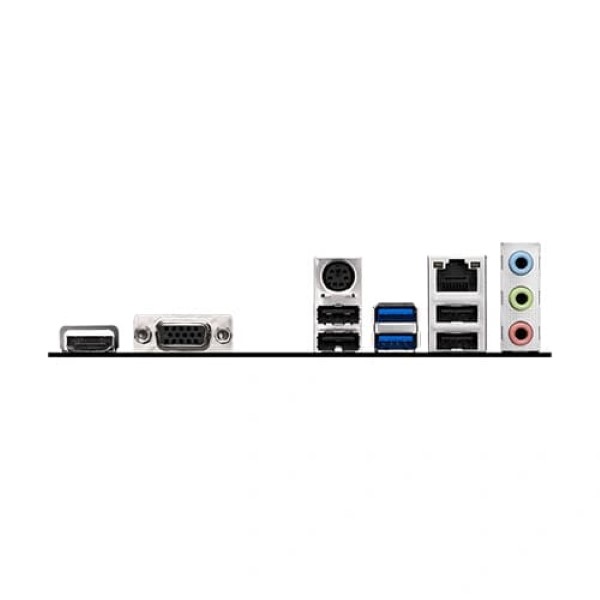

| Back Panel I/O Ports | HDMI |
| VGA | |
| Keyboard / Mouse | |
| USB 5Gbps Type-A | |
| LAN port | |
| Audio Connectors | |
| USB 2.0 | |
| Internal I/O Connector | 1x Power Connector(ATX_PWR) |
| 1x Power Connector(CPU_PWR) | |
| 1x CPU Fan | |
| 2x System Fan | |
| 2x Front Panel (JFP) | |
| 1x Chassis Intrusion (JCI) | |
| 1x Front Audio (JAUD) | |
| 1x Com Port (JCOM) | |
| 1x RGB LED connector(JRGB) | |
| 1x TPM pin header(Support TPM 2.0) | |
| 4x USB 2.0 ports | |
| 2x USB 5Gbps Type A ports | |
| Form Factor | Micro-ATX |
| Warranty | 3 Years |
| Note | Features, Price and Specifications are subject to change without notice. Images used for Representation purposes Only. |
