Chipset
|
AMD B850 |
| CPU |
Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors |
| Socket AM5 |
| Memory |
4x DDR5 UDIMM, Maximum Memory Capacity 256GB |
| Memory Support DDR5 8200 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s |
| Ryzen™ 9000 Series Processors max. overclocking frequency: |
| • 1DPC 1R Max speed up to 8200+ MT/s |
| • 1DPC 2R Max speed up to 6400+ MT/s |
| • 2DPC 1R Max speed up to 6400+ MT/s |
| • 2DPC 2R Max speed up to 4800+ MT/sSupports AMD POR Speed and JEDEC Speed |
| Supports Memory Overclocking and AMD EXPOTM |
| Supports Dual-Channel mode |
| Supports Non-ECC, Un-buffered memory |
| Supports CUDIMM, Clock Driver bypass mode only* |
| Onboard Graphics |
1x DisplayPort |
| Support DisplayPort 1.2, maximum resolution of 4K 60Hz* |
| *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed |
| SLOT |
4x PCI-E x16 slot |
| PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) |
| PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E1 slot |
| • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) |
| • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) |
| • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) |
| Audio |
Realtek® ALC897 |
| 7.1-Channel High Definition Audio |
| Storage |
3x M.2 |
| M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices |
| M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices |
| M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices |
| 4x SATA 6GM2_1 slot |
| • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) |
| • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) |
| RAID |
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| USB |
4x USB 2.0 (Rear) |
| 4x USB 2.0 (Front) |
| 1x USB 5Gbps Type A (Rear) |
| 4x USB 5Gbps Type A (Front) |
| 1x USB 5Gbps Type C (Front) |
| 1x USB 10Gbps Type A (Rear) |
| 2x USB 10Gbps Type C (Rear) |
| LAN |
Realtek® 8126VB 5G LAN |
| Internal I/O |
1x Power Connector(ATX_PWR) |
| 2x Power Connector(CPU_PWR) |
| 1x Power Connector(PCIE_PWR 8pin) |
| 1x CPU Fan |
| 1x Combo Fan (Pump_Sys Fan) |
| 4x System Fan |
| 1x EZ Conn-header (JAF_1) |
| 2x Front Panel (JFP) |
| 1x Chassis Intrusion (JCI) |
| 1x Front Audio (JAUD) |
| 1x Com Port (JCOM) |
| 1x Tuning Controller connector(JDASH) |
| 3x Addressable V2 RGB LED connector (JARGB_V2) |
| 1x RGB LED connector(JRGB) |
| 1x TPM pin header(Support TPM 2.0) |
| 4x USB 2.0 ports |
| 4x USB 5Gbps Type A ports |
| 1x USB 5Gbps Type C ports |
| Wireless LAN & Bluetooth |
Wi-Fi 7 Solution |
| The Wireless module is pre-installed in the M.2 (Key-E) slot |
| Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps |
| Supports 802.11 a/ b/ g/ n/ ac/ ax/ beSupports Bluetooth® 5.4**, MLO, 4KQAM |
| LED Feature |
4x EZ Debug LED |

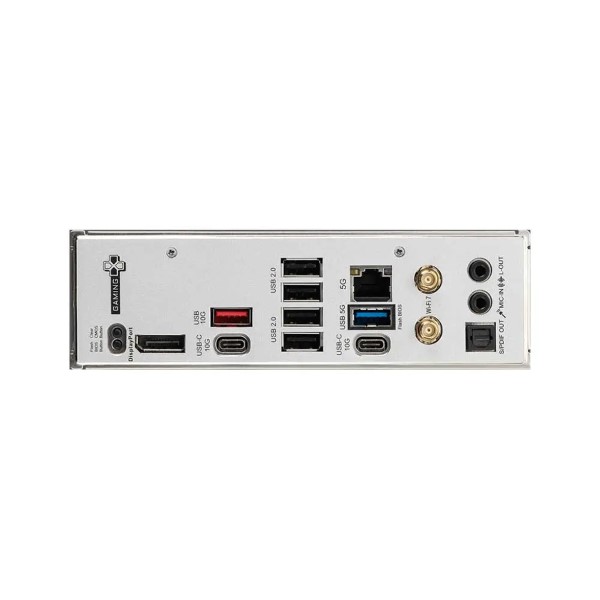

| Back Panel Ports |
1. Clear CMOS Button |
| 2. USB 10Gbps (Type-A) |
| 3. USB 2.0 |
| 4. 5G LAN |
| 5. Wi-Fi / Bluetooth |
| 6. Audio connectors |
| 7. Flash BIOS Button |
| 8. DisplayPort |
| 9. USB 10Gbps (Type-C) |
| 10. USB 10Gbps (Type-C) |
| 11. USB 5Gbps (Type-A) |
| 12. S/PDIF-OUT |
| Operating System |
Support for Windows® 11 64-bit |
| PCB Info |
ATX |
| 243.84mmx304.8mm |
| Warranty |
3 Year |
| Note** |
**Prices, Specifications & Features are subject to change without notice |
