Description

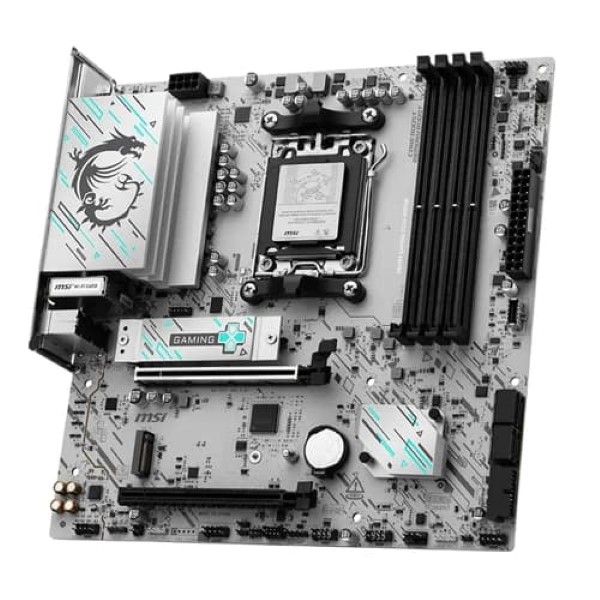

MSI B840M Gaming Plus WIFI6E DDR5 AMD AM5 M-ATX Motherboard
Features:
MSI B840M Gaming Plus WIFI6E Motherboard Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
Ultra Performance:
7+2+1 P-PAK Power System, 8-pin CPU power connector, Core Boost, Memory Boost, 6-layer PCB with 2oz thickened copper
Supports DDR5 Memory, Dual Channel DDR5 8000+ MT/s (OC)
Frozr Guard:
MSI B840M Gaming Plus WIFI6E extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop experience
Lightning Fast Game experience:
PCIe 4.0 slot, Lightning Gen 4 x4 M.2, Front USB Type-C
High-speed Connectivity: Wi-Fi 6E with 2.5G LAN – The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
EZ DIY:
MSI B840M Gaming Plus WIFI6E EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
Audio Boost:
Reward your ears with studio-grade sound quality for the most immersive gaming experience
The B840M GAMING WIFI6E is crafted to offer extensive connectivity, versatile tools, and Wi-Fi solution for gamers seeking a comprehensive experience. Featuring Wi-Fi 6E, 2.5G LAN, PCIe 4.0 solution and exclusive EZ DIY features, it is ready for 24/7 non-stop gaming optimized for AMD Ryzen™ 9000 series processors.
MSI B840M Gaming Plus WIFI6E motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
DIRECT 7+2+1 POWER DESIGN
Unleash and sustain excellent performance with an enhanced VRM design built with digital CPU power system, 8-pin power connector and exclusive Core Boost technology, the B840M GAMING WIFI6E is ready to sustain heavy gaming loadings.
M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
Additional information
| Motherboard brand chipset | |
|---|---|
| MOTHERBOARD CHIPSET | |
| Motherboard form factor | |
| Motherboard socket |
Brand
MSI
Specification
| Platform | AMD |
| Socket | AM5 |
| Cpu Type | Ryzen 9000,Ryzen 8000,Ryzen 7000 |
| Chipset | B840 |
| Memory Speed | up to 8000+ |
| Max Memory Support | 256 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | Supports AMD POR Speed and JEDEC Speed |
| Supports Memory Overclocking and AMD EXPOTM | |
| Supports Dual-Channel mode | |
| Supports Non-ECC, Un-buffered memory | |
| Supports CUDIMM, Clock Driver bypass mode only* | |
| * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. | |
| • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit Brand Website. | |
| Graphics Port | 1x HDMI |
| Expansion Slots | 2x PCI-E x16 slot |
| PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) | |
| PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset) | |
| PCI_E1 slot | |
| • Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors) | |
| • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) | |
| • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) | |
| Wireless Networking | Wi-Fi 6E,Bluetooth 5.3 |
| Back Panel I/O Ports | Clear CMOS Button |
| USB 10Gbps Type-A | |
| USB 2.0 | |
| 2.5G LAN | |
| Wi-Fi / Bluetooth | |
| Audio connectors | |
| Flash BIOS Button | |
| HDMI | |
| USB 10Gbps Type-C | |
| USB 5G | |
| Internal I/O Connector | 1x Power Connector(ATX_PWR) |
| 1x Power Connector(CPU_PWR) | |
| 1x CPU Fan | |
| 1x Combo Fan (Pump_Sys Fan) | |
| 3x System Fan | |
| 1x EZ Conn-header (JAF_1) | |
| 2x Front Panel (JFP) | |
| 1x Chassis Intrusion (JCI) | |
| 1x Front Audio (JAUD) | |
| 1x Com Port (JCOM) | |
| 1x Tuning Controller connector(JDASH) | |
| 3x Addressable V2 RGB LED connector (JARGB_V2) | |
| 1x RGB LED connector(JRGB) | |
| 1x TPM pin header(Support TPM 2.0) | |
| 4x USB 2.0 ports | |
| 2x USB 5Gbps Type A ports | |
| 1x USB 5Gbps Type C ports | |
| Form Factor | Micro-ATX |
| Warranty | 3 Years |
| Note | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only. |
