-44%

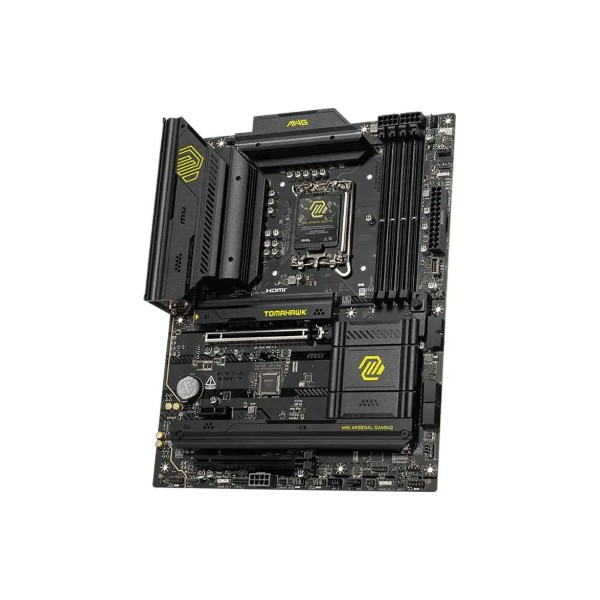

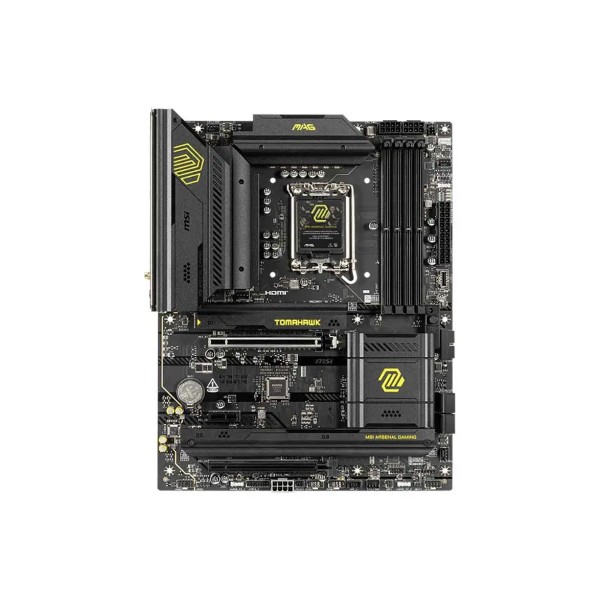

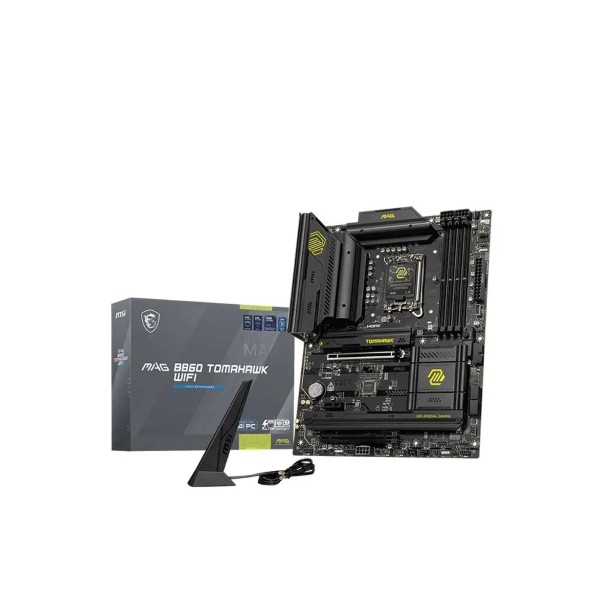

MSI MAG B860 Tomahawk WiFi DDR5 Intel LGA 1851 ATX Motherboard
Original price was: ₹41,250.₹23,290Current price is: ₹23,290.
In stock
Description
MSI MAG B860 Tomahawk WiFi DDR5 Intel LGA 1851 ATX Motherboard
MSI MAG B860 TOMAHAWK WIFI Motherboard is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with Killer Wi-Fi 7 solution and 5G LAN, Thunderbolt 4, PCIe 5.0 solutions, Supplemental PCIe Power and exclusive EZ DIY features, it’s ready for the battlefield of Intel Core Ultra processors.
- Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
- Supports DDR5 Memory, Dual Channel DDR5 9200+ MT/s (OC)
- Ultra Performance: 12+1+1+1 Duet Rail Power System 60A SPS, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material.
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna.
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
- Ultra Connect: Thunderbolt™ 4 port, Intel® Killer™ 5G LAN & Intel® Killer™ Wi-Fi 7 Solution – the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission.
- Audio Boost : Reward your ears with studio grade sound quality for the most immersive gaming experience
Additional information
| Motherboard brand chipset | |
|---|---|
| MOTHERBOARD CHIPSET | |
| Motherboard form factor | |
| Motherboard socket |
Brand
MSI
Specification
| Chipset | Intel B860 |
| CPU | Supports Intel® Core™ Ultra Processors (Series 2) |
| LGA 1851 | |
| Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB |
| Memory Support 9200 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s | |
| Max. overclocking frequency: | |
| • 1DPC 1R Max speed up to 9200+ MT/s | |
| • 1DPC 2R Max speed up to 7200+ MT/s | |
| • 2DPC 1R Max speed up to 6400+ MT/s | |
| • 2DPC 2R Max speed up to 5600+ MT/sSupports Intel® POR Speed and JEDEC Speed | |
| Supports Memory Overclocking and Intel® XMP 3.0 | |
| Supports Dual-Controller Dual-Channel mode | |
| Supports Non-ECC, Un-buffered memory | |
| Supports CUDIMM | |
| Onboard Graphics | 1x HDMI™ |
| Support HDMI™ 2.1 with FRL, maximum resolution of 8K 60Hz*/ ** | |
| 1x DisplayPort | |
| Support DisplayPort 1.4, maximum resolution of 4K 60Hz*/ ** | |
| 1x Type-C DisplayPort | |
| Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* | |
| SLOT | 2x PCI-E x16 slot |
| 1x PCI-E x1 slot | |
| PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) | |
| PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) | |
| PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)*PCI_E3 slot will run at x2 speed when installing PCIe device in PCI_E2 slot. | |
| Audio | Realtek® ALC897 Codec |
| 7.1-Channel High Definition Audio | |
| Supports S/PDIF output | |
| Storage | 3x M.2 |
| M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices | |
| M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices | |
| M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices | |
| 4x SATA 6G*If you install a 22110 SSD into the M2_2 slot, the M2_3 slot will only support 2242/ 2260 SSD. | |
| **Please refer to the manual for M.2 SSD heatsink restrictions. | |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Onboard Thunderbolt | Thunderbolt Resource CPU |
| 1x Thunderbolt4 ports (Rear) | |
| Supports up to 40Gbps transfer rate with Thunderbolt devices | |
| Supports up to 20Gbps transfer rate with USB4 devices | |
| Supports up to 10Gbps transfer rate with USB 3.2 devices | |
| Supports up to 5V/3A,15W power charging | |
| Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices | |
| Supports up to 8K display | |
| USB | 4x USB 2.0 (Rear) |
| 4x USB 2.0 (Front) | |
| 2x USB 5Gbps Type A (Front) | |
| 4x USB 10Gbps Type A (Rear) | |
| 1x USB 10Gbps Type C (Rear) | |
| 1x USB 10Gbps Type C (Front) | |
| 1x USB 40Gbps Type C (Rear) | |
| LAN | Intel® Killer™ E5000 5Gbps LAN |
| Internal I/O | 1x Power Connector(ATX_PWR) |
| 2x Power Connector(CPU_PWR) | |
| 1x Power Connector(PCIE_PWR 8pin) | |
| 1x CPU Fan | |
| 1x Combo Fan (Pump_Sys Fan) | |
| 5x System Fan | |
| 2x Front Panel (JFP) | |
| 1x Chassis Intrusion (JCI) | |
| 1x Front Audio (JAUD) | |
| 1x Tuning Controller connector(JDASH) | |
| 3x Addressable V2 RGB LED connector (JARGB_V2) | |
| 2x RGB LED connector(JRGB) | |
| 1x TPM pin header(Support TPM 2.0) | |
| 4x USB 2.0 ports | |
| 2x USB 5Gbps Type A ports | |
| 1x USB 10Gbps Type C ports | |
| Wireless LAN & Bluetooth | Intel® Killer™ BE1750x Wi-Fi 7 |
| The Wireless module is pre-installed in the M.2 (Key-E) slot | |
| Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps | |
| Supports 802.11 a/ b/ g/ n/ ac/ ax/ beSupports Bluetooth® 5.4**, MLO, 4KQAM | |
| LED Feature | 4x EZ Debug LED |
| 1x EZ Memory Detection LED | |

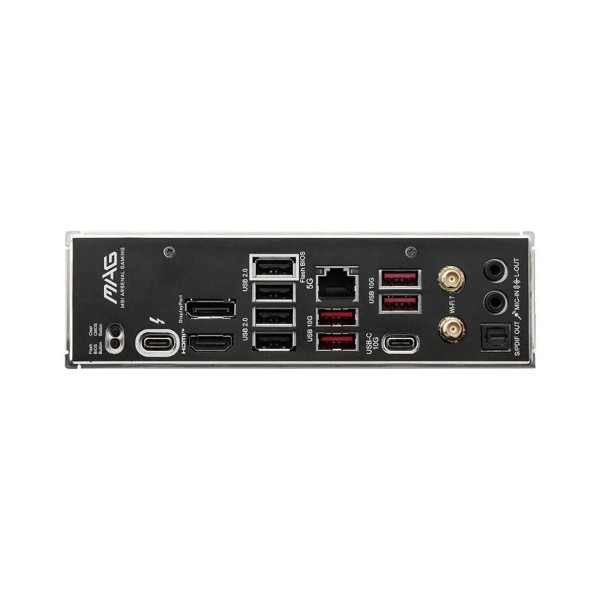

| Back Panel Ports | 1. Clear CMOS Button |
| 2. DisplayPort | |
| 3. USB 2.0 (Flash BIOS Port) | |
| 4. 5G LAN | |
| 5. USB 10Gbps Type-A | |
| 6. Audio Connectors | |
| 7. Flash BIOS Button | |
| 8. Thunderbolt™ 4 40Gbps (Type-C) | |
| 9. HDMI™ | |
| 10. USB 2.0 | |
| 11. USB 10Gbps Type-A | |
| 12. USB 10Gbps Type-C | |
| 13. Wi-Fi / Bluetooth | |
| 14. S/PDIF-OUT | |
| Operating System | Support for Windows® 11 64-bit |
| PCB Info | ATX |
| 243.84mmx304.8mm | |
| Warranty | 3 Year |
| Note** | **Prices, Specifications & Features are subject to change without notice |
