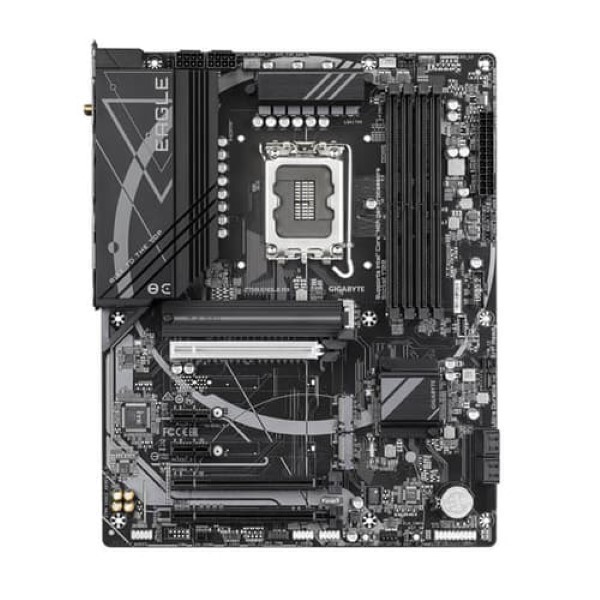

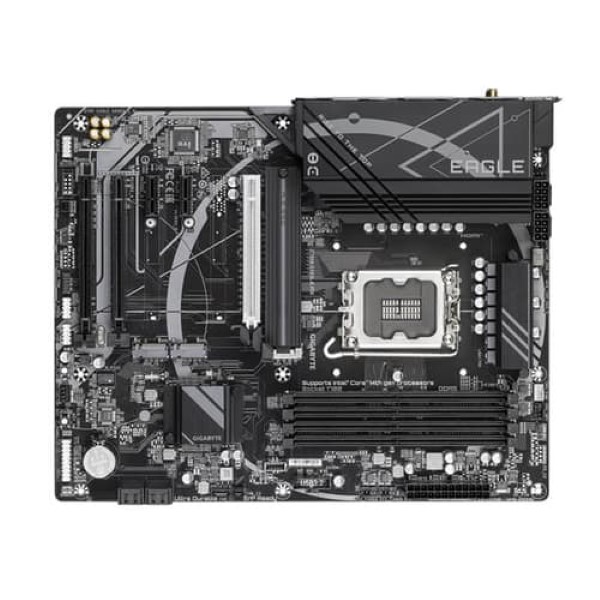

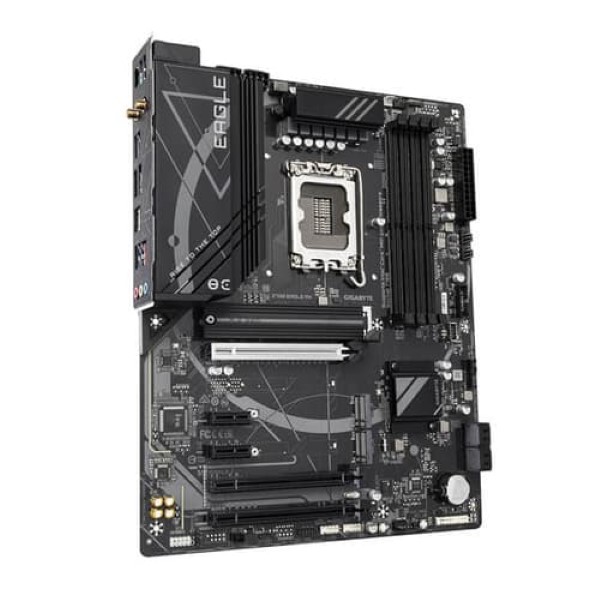

Gigabyte Z790 Eagle AX Wi-Fi DDR5 Intel LGA1700 ATX Gaming Motherboard
Original price was: ₹36,000.₹20,410Current price is: ₹20,410.
Out of stock
Description
Gigabyte Z790 Eagle AX Wi-Fi DDR5 Intel LGA1700 ATX Gaming Motherboard
Features:
Gigabyte Z790 Eagle AX Wi-Fi Motherboard Supports Intel Core 14th/ 13th /12th processors
Unparalleled Performance：
Twin 12*+1+１ Phases Digital VRM Solution
Dual Channel DDR5：
4*DIMMs with XMP 3.0 Memory Module Support
Next Generation Storage：
Gigabyte Z790 Eagle AX Wi-Fi 3*PCIe 4.0 x4 M.2 Connectors
Advanced Thermal Design & M.2 Thermal Guard:
To Ensure VRM Power Stability & M.2 SSD Performance
EZ-Latch：
PCIe 5.0×16 Slot with Quick Release Design
Fast Networks：
2.5GbE LAN & Wi-Fi 6E 802.11ax
Extended Connectivity：
DP, HDMI, Rear USB-C® 10Gb/s
Smart Fan 6：
Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus：
Gigabyte Z790 Eagle AX Wi-Fi Update BIOS Without Installing the CPU, Memory and Graphics Card
Durable Performance
GIGABYTE Ultra Durableâ„¢ motherboards built with optimal components inside out provide the prime performance and timeless platform.
Future Connectivity
The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage
802.11ax Wi-Fi 6E
The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.
2.5GbE LAN
Supercharge your gaming with 2.5GbE LAN Achieve lightning-fast speeds, minimal lag, and unbeatable performance to elevate your gaming setup and dominate the competition.
Easy Friendly
Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.
Additional information
| Motherboard brand chipset | |
|---|---|
| MOTHERBOARD CHIPSET | |
| Motherboard form factor | |
| Motherboard socket |
Brand
Gigabyte
Specification
| Platform | INTEL |
| Socket | LGA1700 |
| Cpu Type | 14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron Processors |
| Chipset | Z790 |
| Memory Speed | up to 7600 |
| Max Memory Support | 256 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for Extreme Memory Profile (XMP) memory modules | |
| (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of | |
| DRAM modules, please refer to “Memory Support List” on Visit Brand website for more information.) | |
| Graphics Port | 1 x HDMI port,1 x DisplayPort |
| Expansion Slots | CPU: |
| 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) | |
| The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. | |
| Chipset: | |
| 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) | |
| 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4) | |
| 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3) | |
| Wireless Networking | Wi-Fi 6E,BLUETOOTH 5.3 |

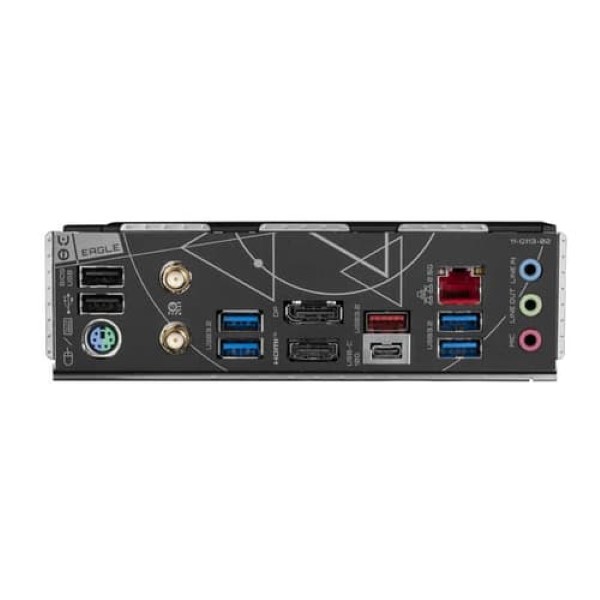

| Back Panel I/O Ports | 1 x PS/2 keyboard/mouse port |
| 1 x USB Type-C port, with USB 3.2 Gen 2 support | |
| 1 x USB 3.2 Gen 2 Type-A port (red) | |
| 4 x USB 3.2 Gen 1 ports | |
| 2 x USB 2.0/1.1 ports | |
| 2 x SMA antenna connectors (1T1R) | |
| 1 x HDMI port | |
| 1 x DisplayPort | |
| 1 x RJ-45 port | |
| 3 x audio jacks | |
| Internal I/O Connector | 1 x 24-pin ATX main power connector |
| 2 x 8-pin ATX 12V power connectors | |
| 1 x CPU fan header | |
| 1 x CPU fan/water cooling pump header | |
| 3 x system fan headers | |
| 1 x system fan/water cooling pump header | |
| 2 x addressable LED strip headers | |
| 3 x M.2 Socket 3 connectors | |
| 4 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x S/PDIF Out header | |
| 1 x USB Type-C header, with USB 3.2 Gen 1 support | |
| 1 x USB 3.2 Gen 1 header | |
| 2 x USB 2.0/1.1 headers | |
| 2 x Thunderboltâ„¢ add-in card connectors | |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
| 1 x reset button | |
| 1 x Q-Flash Plus button | |
| 1 x reset jumper | |
| 1 x Clear CMOS jumper | |
| Form Factor | ATX |
| Warranty | 3 Years |
| Note | Features, Price and Specifications are subject to change without notice. Images used for Representation Purpose Only |
