| Platform |
AMD |
| Socket |
AM5 |
| Cpu Type |
Ryzen 9000, Ryzen 8000, Ryzen 7000 |
| Chipset |
B650 |
| Memory Speed |
up to 8000 |
| Max Memory Support |
256 GB |
| Supported Memory Type |
DDR5 |
| Channel Supported |
Dual Channel |
| Memory Feature |
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
| Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules |
| Graphics Port |
1 x DisplayPort,1 x HDMI |
| Expansion Slots |
x PCI Express x16 slot (PCIEX16), integrated in the CPU: |
| AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x16 mode |
| AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode |
| AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode |
| * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
| Chipset: |
| 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
| Wireless Networking |
WiFi 6E,Bluetooth 5.3 |

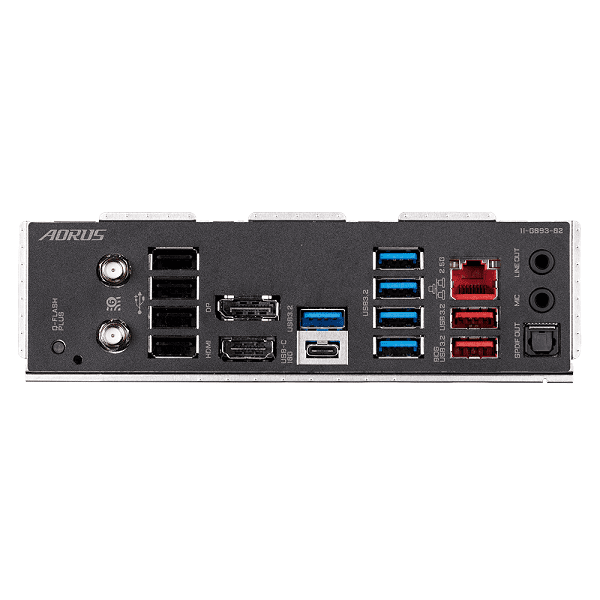

| Back Panel I/O Ports |
1 x Q-Flash Plus button |
| 2 x SMA antenna connectors (2T2R) |
| 1 x DisplayPort |
| 1 x HDMI port |
| 1 x USB Type-C® port, with USB 3.2 Gen 2 support |
| 2 x USB 3.2 Gen 2 Type-A ports (red) |
| 5 x USB 3.2 Gen 1 ports |
| 4 x USB 2.0/1.1 ports |
| 1 x RJ-45 port |
| 1 x optical S/PDIF Out connector |
| 2 x audio jacks |
| Internal I/O Connector |
1 x 24-pin ATX main power connector |
| 1 x 8-pin ATX 12V power connector |
| 1 x CPU fan header |
| 1 x water cooling CPU fan header |
| 3 x system fan headers |
| 1 x system fan/water cooling pump header |
| 2 x addressable LED strip headers |
| 2 x RGB LED strip headers |
| 1 x CPU cooler LED strip/RGB LED strip header |
| 2 x M.2 Socket 3 connectors |
| 4 x SATA 6Gb/s connectors |
| 1 x front panel header |
| 1 x front panel audio header |
| 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support |
| 1 x USB 3.2 Gen 1 header |
| 2 x USB 2.0/1.1 headers |
| 1 x serial port header |
| 1 x THB_U4 add-in card connector |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
| 1 x reset button |
| 1 x reset jumper |
| 1 x Clear CMOS jumper |
| Form Factor |
Micro-ATX |
| Note |
Features, Price and Specifications are subject to change without notice. Images used for Representation Purpose Only |
