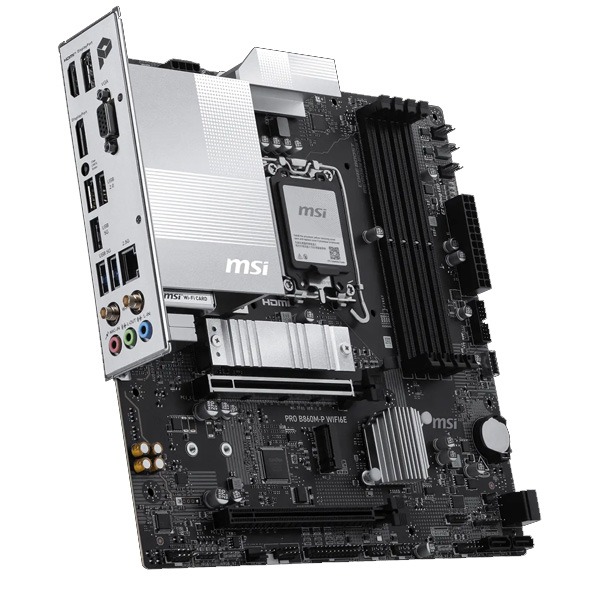

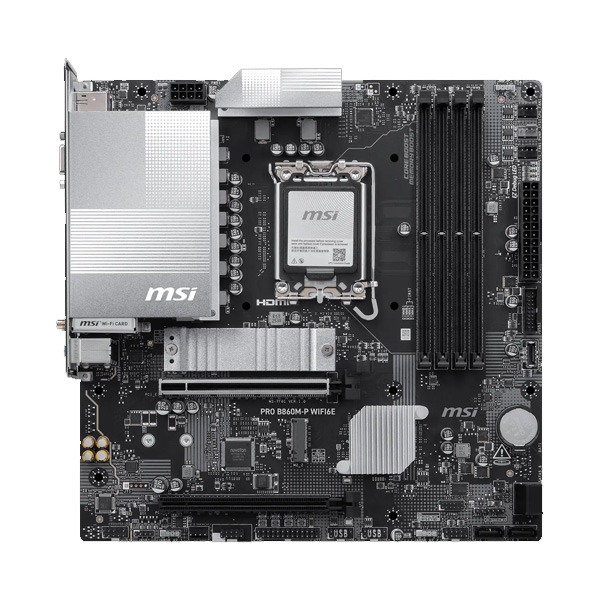

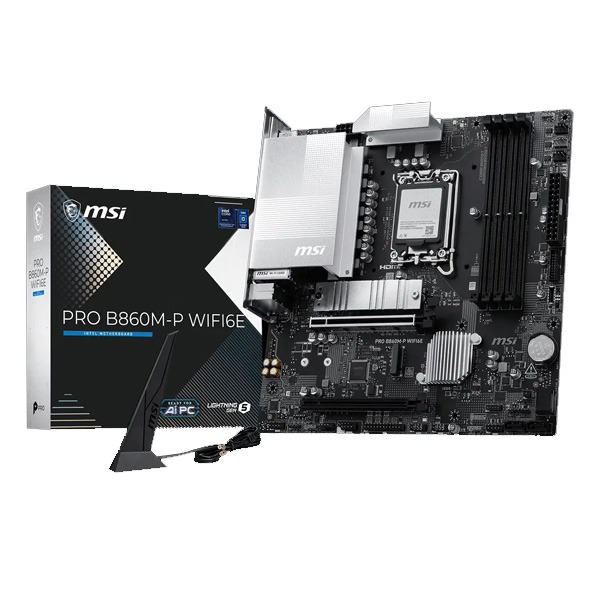

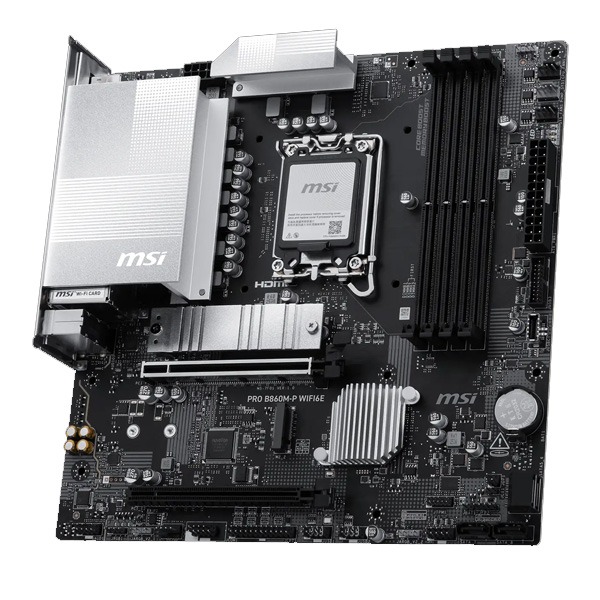

MSI B860M-P Wifi 6E DDR5 Intel LGA 1851 M-ATX Motherboard

Name: MSI B860M-P Wifi 6E DDR5 Intel LGA 1851 M-ATX Motherboard
Brand: MSI
SKU: PRO-B860M-P-WIFI6E
Price: 18990 INR
Availability: OutOfStock

Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket

Supports DDR5 Memory, Dual Channel DDR5 8800+ MT/s (OC)

Ultra Performance: Direct 6 phases with P-PAK, 8-pin CPU power connector, Core Boost, Memory Boost, 6-layer PCB

Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads, and M.2 Shield Frozr are built for high performance system and non-stop experience

EZ DIY: EZ PCIe Clip II and EZ Antenna

Lightning Fast experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2

2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection

Audio Boost: Reward your ears with studio-grade sound quality for the most immersive gaming experience.

General Info
Model Name	PRO B860M-P WIFI6E
Form Factor	mATX (243.84mm x 243.84mm)
Operating System	Support for Windows® 11 64-bit
Processor & Chipset
CPU Support	Supports Intel® Core™ Ultra Processors (Series 2)
CPU Socket	LGA 1851
Chipset	INTEL B860 Chipset
Memory
Memory Slots	4x DDR5 UDIMM
Max Memory Capacity	256GB
Supported Frequencies	DDR5 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
1DPC 1R Max Speed	Up to 8800+ MT/s
1DPC 2R Max Speed	Up to 7200+ MT/s
2DPC 1R Max Speed	Up to 6400+ MT/s
2DPC 2R Max Speed	Up to 5600+ MT/s
Memory Features	Dual-Channel mode, Non-ECC, Un-buffered, CUDIMM, Intel XMP 3.0 support
Onboard Graphics
HDMI™	1x HDMI™ 2.1 port with TMDS, maximum resolution of 4K 60Hz
DisplayPort	2x DisplayPort 1.4 port with HBR2, maximum resolution of 4K 60Hz
VGA	1x VGA, max resolution of 2048x1536 50Hz / 1920x1200 60Hz
Expansion Slots
PCI-E x16 Slots	2x PCI-E x16 slot
PCI_E1	Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2	Gen PCIe 4.0 supports up to x4 (From Chipset)
Storage
M.2 Slots	2x M.2 Slots
M.2_1	PCIe 5.0 x4 (From CPU), supports 2280/2260 devices
M.2_2	PCIe 4.0 x4 (From Chipset), supports 2280/2260 devices
SATA Ports	4x SATA 6Gb/s
RAID Support	Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices
Networking
LAN	Realtek® 8125 2.5Gbps LAN
Wireless LAN	Wi-Fi 6E, Supports 802.11 a/b/g/n/ac/ax (2.4GHz / 5GHz / 6GHz up to 2.4Gbps)
Bluetooth	Bluetooth® 5.3
Audio
Audio Codec	Realtek® ALC897 Codec, 7.1-Channel High Definition Audio
USB
Rear USB	2x USB 2.0, 3x USB 5Gbps Type-A
Front USB	4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 5Gbps Type-C
Internal I/O Connectors
Power Connectors	1x ATX_PWR, 1x CPU_PWR
Cooling Connectors	1x CPU Fan, 1x Combo Fan (Pump_Sys Fan), 2x System Fan
RGB/LED Connectors	3x Addressable V2 RGB (JARGB_V2), 1x RGB LED (JRGB)
Other Connectors	2x Front Panel, 1x Chassis Intrusion, 1x Front Audio, 1x Printer Port, 1x Com Port, 1x TPM header

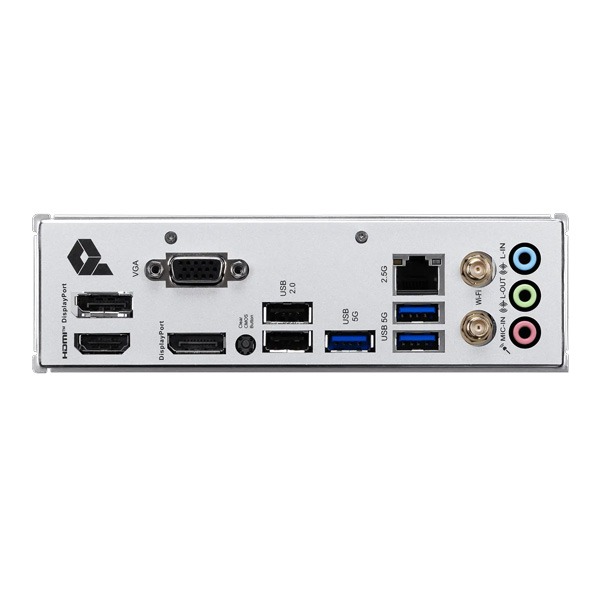

Back Panel I/O Ports
Ports	2x DisplayPort, 1x VGA, 1x HDMI, 1x 2.5G LAN, Audio Connectors, Wi-Fi/Bluetooth Antenna, Clear CMOS Button, USB Ports (Type-A)
