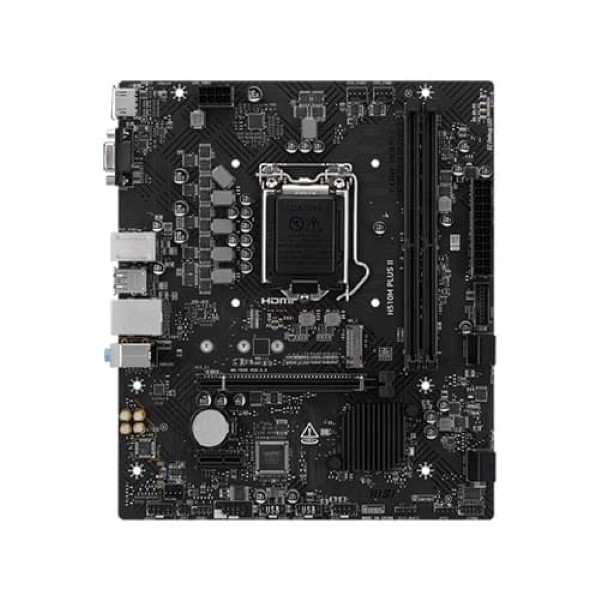

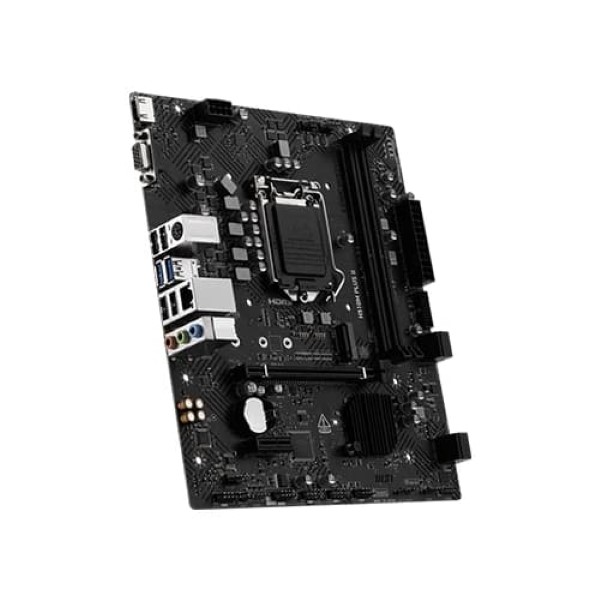

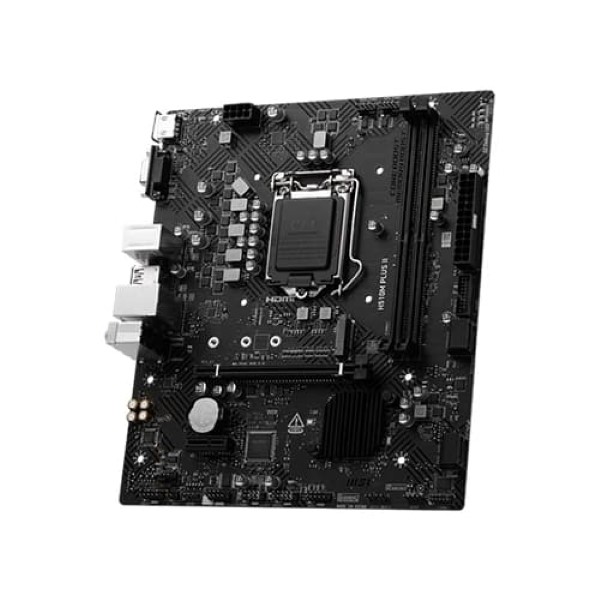

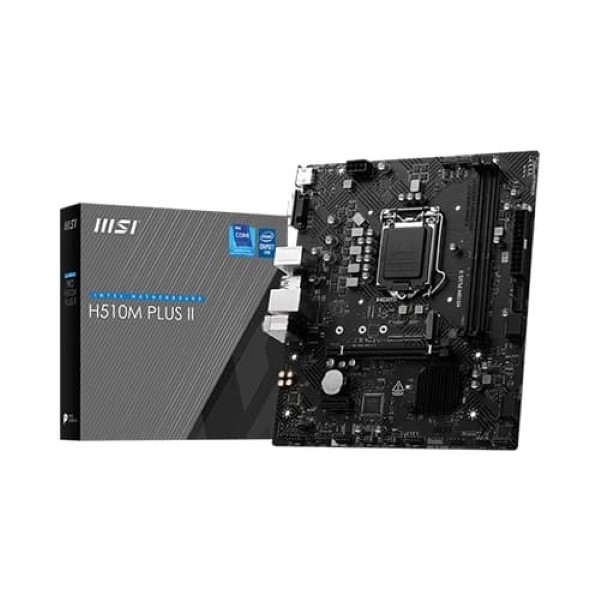

MSI H510M Plus II DDR4 Intel LGA1200 M-ATX Motherboard

Features:

MSI H510M Plus II Motherboard  supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors for LGA 1200 socketSupports DDR4 Memory 2933 MT/s (MAX)

Core Boost

MSI H510M Plus II with premium layout and digital power design to support more cores and provide better performance

Memory Boost:

Advanced technology to deliver pure data signals for the best performance, stability and compatibility

Audio Boost:

Reward your ears with studio grade sound quality

Steel Armor:

MSI H510M Plus II protecting VGA cards against bending and EMI for better performance, stability and strength.
Platform INTEL
Socket LGA1200
Cpu Type 11th Gen,10th Gen, Pentium Gold
Chipset Z490
Memory Speed up to 2933
Max Memory Support 64 GB
Supported Memory Type DDR4
Channel Supported Dual Channel
Memory Feature Memory Support 2933/ 2666/ 2400/ 2133 MHz
Supports 1R 2133/ 2666/ 2933 MHz for Intel Core i9/ Core i7 CPU
Supports 1R 2133/ 2666 MHz for Intel Core i5/ Core i3/ Pentium Gold and Celeron CPU
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)
Graphics Port 1x HDMI
Support HDMI 1.4, maximum resolution of 4K 30Hz*
1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 1920x1200 60Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Expansion Slots 1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

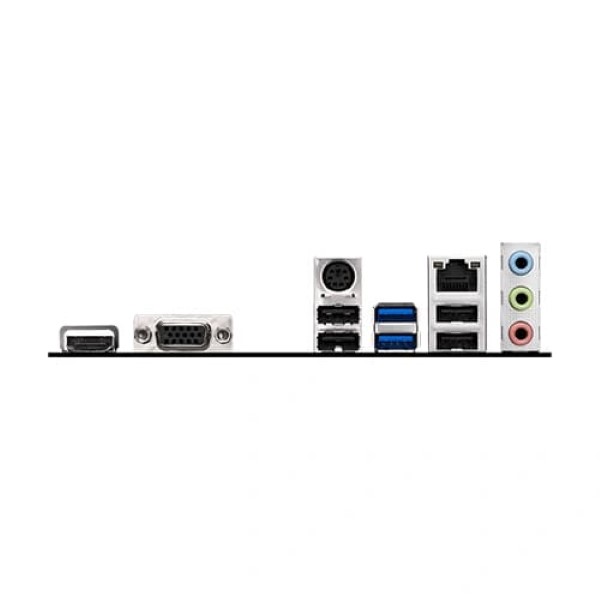

Back Panel I/O Ports HDMI
VGA
Keyboard / Mouse
USB 5Gbps Type-A
LAN port
Audio Connectors
USB 2.0
Internal I/O Connector 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
Form Factor Micro-ATX
Warranty 3 Years
Note Features, Price and Specifications are subject to change without notice. Images used for Representation purposes Only.
