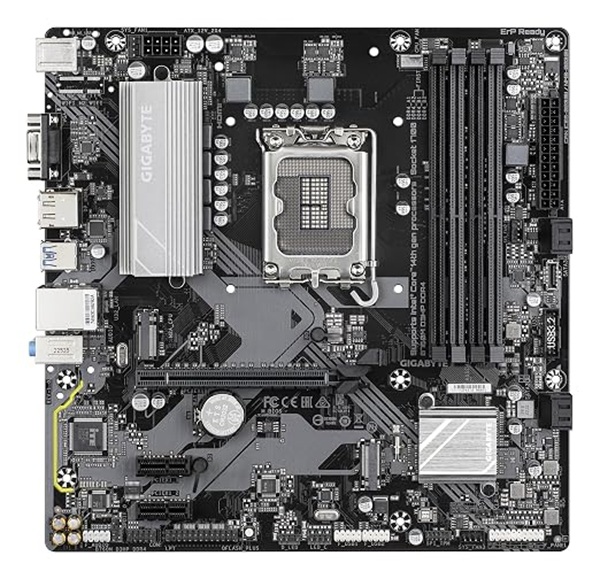

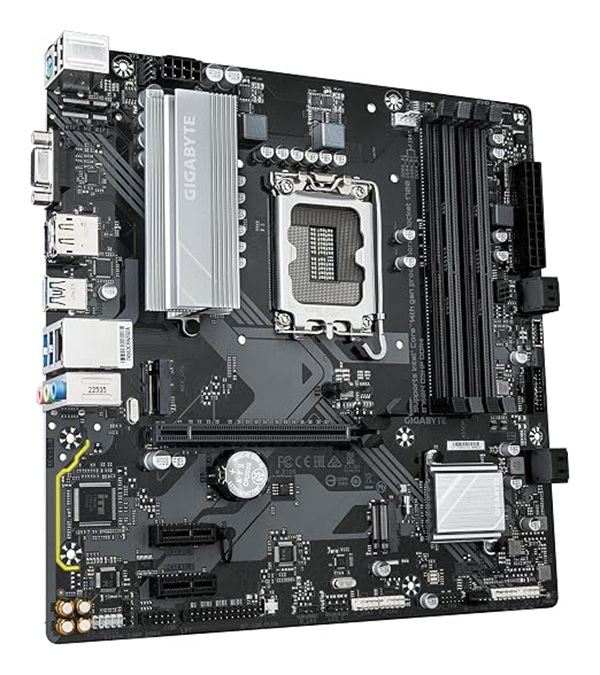

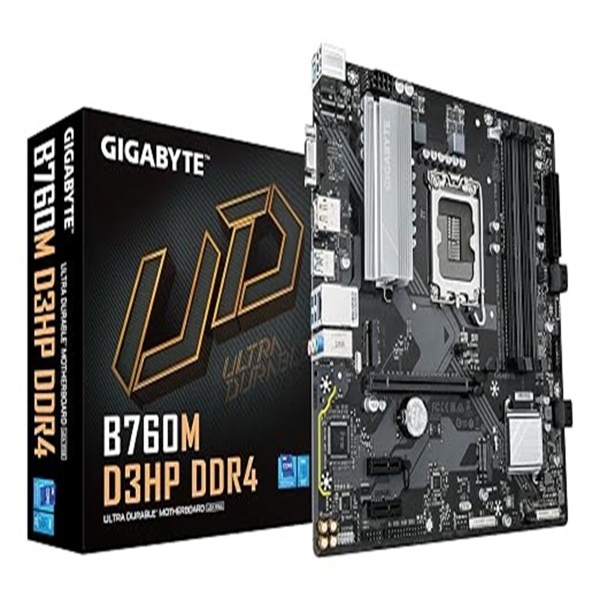

Gigabyte B760M D3HP DDR4 Intel LGA1700 Micro ATX Motherboard
Description
The GIGABYTE B760M D3HP DDR4 is a reliable Micro ATX motherboard built around the Intel B760 chipset and designed for Intel LGA1700 processors. It supports Intel Core processors from the 12th, 13th and 14th Gen, making it suitable for modern gaming PCs, office systems, productivity computers, content creation and everyday high-performance builds.
The motherboard supports DDR4 memory, making it a practical choice for customers who already have DDR4 RAM or want to build a cost-effective Intel PC without moving to DDR5. It features 4 DDR4 DIMM slots and supports up to 128GB of system memory, depending on the configuration.
For storage, the B760M D3HP DDR4 provides M.2 NVMe SSD support along with SATA 6Gb/s ports, allowing customers to install a fast NVMe SSD for the operating system and applications while adding SATA SSDs or hard drives for additional storage.
For graphics and expansion, it includes a PCIe x16 slot for a dedicated graphics card, making it suitable for gaming and GPU-based workloads. The board also provides multiple USB connectivity options and integrated display outputs for compatible Intel processors with integrated graphics.
Use Cases
1. Gaming PC Build
The GIGABYTE B760M D3HP DDR4 is suitable for building a modern Intel gaming PC with compatible 12th, 13th or 14th Gen Intel processors. It supports DDR4 memory, a PCIe 4.0 x16 graphics-card slot and PCIe 4.0 NVMe SSD storage.
Suitable for:
- 1080p gaming
- 1440p gaming
- Esports gaming
- Gaming with a dedicated NVIDIA or AMD graphics card
- Gaming + everyday multitasking
2. Budget-Friendly Intel Performance PC
For customers who already own DDR4 RAM and want to move to an Intel LGA1700 platform, this motherboard can be used to build a cost-conscious performance PC without changing to DDR5 memory.
Suitable for:
- Home computing
- Office work
- Business applications
- Browsing and multitasking
- Online classes and meetings
- General productivity
3. Content Creation & Editing PC
With support for up to 128GB DDR4 RAM and two PCIe 4.0 M.2 SSD slots, the motherboard can be used as the foundation for a content-creation PC when paired with an appropriate Intel processor, GPU and sufficient memory.
Suitable for:
- Photoshop
- Lightroom
- Premiere Pro
- DaVinci Resolve
- Graphic design
- Photo editing
- Video editing
4. DDR4 Upgrade PC
A major use case is for customers who want an Intel B760 motherboard with DDR4 support.
The board has 4 DDR4 DIMM slots and supports up to 128GB RAM, allowing customers to reuse or expand their existing DDR4 memory, subject to compatibility.
5. Dual-NVMe Storage PC
The B760M D3HP DDR4 provides 2 PCIe 4.0 M.2 connectors along with 4 SATA 6Gb/s ports. This makes it suitable for systems requiring multiple SSDs and/or HDDs.
Example configuration:
- M.2 SSD 1 → Windows + applications
- M.2 SSD 2 → Games + projects
- SATA SSD/HDD → Additional storage
6. Compact Micro-ATX PC
The motherboard uses a Micro-ATX form factor measuring 24.4 × 24.4 cm, making it suitable for compact desktop builds while still providing a full PCIe x16 slot and multiple storage options.
7. Multi-Monitor Productivity PC
The motherboard provides D-Sub, HDMI and DisplayPort outputs and supports up to three displays simultaneously when supported by the processor's integrated graphics.
This can be useful for:
- Office work
- Trading/workstation setups
- Monitoring dashboards
- Business applications
- Multitasking
Common Buying Questions
Q1. Which processors are compatible with GIGABYTE B760M D3HP DDR4?
The motherboard uses the Intel LGA1700 socket and supports compatible 14th Gen, 13th Gen and 12th Gen Intel Core processors, along with supported Intel Pentium Gold and Celeron processors. The exact CPU should be checked against GIGABYTE's CPU support list.
Q2. Does B760M D3HP DDR4 support DDR4 RAM?
Yes. This particular model supports DDR4 memory and has 4 DDR4 DIMM slots. It supports up to 128GB of system memory.
Q3. Can I use DDR5 RAM on B760M D3HP DDR4?
No. The B760M D3HP DDR4 is specifically designed for DDR4 memory. DDR5 RAM is not compatible with its DDR4 DIMM slots.
Q4. What is the maximum RAM supported?
The motherboard supports up to 128GB DDR4 RAM across four DIMM slots, with up to 32GB supported per DIMM according to GIGABYTE's specifications.
Q5. What DDR4 RAM speed does it support?
It supports DDR4 speeds from 2133 MT/s up to DDR4-5333 MT/s through overclocking, depending on the processor, memory configuration and supported modules. DDR4-3200 is among the standard supported speeds.
Q6. Does it support XMP?
Yes. The motherboard supports Intel XMP memory modules, allowing compatible DDR4 memory kits to operate using their supported XMP profiles.
Q7. How many M.2 slots does B760M D3HP DDR4 have?
It has 2 M.2 connectors, supporting PCIe 4.0 x4/x2 NVMe SSDs.
Q8. Does it support NVMe SSD?
Yes. Both M.2 connectors support compatible PCIe 4.0 NVMe SSDs.
Q9. How many SATA ports does it have?
The motherboard has 4 SATA 6Gb/s connectors, allowing customers to connect compatible SATA SSDs and HDDs.
Q10. Can I use an RTX graphics card with this motherboard?
Yes. It has a PCIe 4.0 x16 slot for a compatible dedicated graphics card, so it can be paired with NVIDIA GeForce RTX or AMD Radeon graphics cards, subject to the GPU's physical and power requirements.
Q11. Is GIGABYTE B760M D3HP DDR4 good for gaming?
It can be used for a gaming PC with a compatible Intel processor, DDR4 RAM, dedicated graphics card and NVMe SSD. Actual gaming performance depends primarily on the CPU, GPU, RAM configuration and game.
Q12. Is it compatible with Intel Core i5?
Yes. Compatible Intel Core i5 processors from supported 12th, 13th and 14th Gen families can be used, subject to the specific CPU support list and BIOS version.
Q13. Can I use Intel Core i7 with this motherboard?
Yes, compatible LGA1700 Core i7 processors are supported. For higher-performance CPUs, customers should select an appropriate CPU cooler, power supply and case airflow for the complete system.
Q14. Is this motherboard suitable for video editing?
Yes. It can be used for a video-editing PC when paired with an appropriate Intel processor, adequate DDR4 RAM, fast NVMe storage and a suitable graphics card.
Q15. Is B760M D3HP DDR4 a Micro-ATX motherboard?
Yes. It is a Micro-ATX motherboard, measuring approximately 24.4 × 24.4 cm.
Q16. Which PC cabinet is compatible with B760M D3HP DDR4?
Because it is a Micro-ATX motherboard, it can be installed in compatible Micro-ATX and ATX cabinets. Always check the cabinet's motherboard support and clearance for the selected graphics card and CPU cooler.
Q17. Does it have Wi-Fi?
The standard B760M D3HP DDR4 specification does not list onboard Wi-Fi. Customers requiring wireless connectivity should consider a separate Wi-Fi PCIe adapter/USB adapter or a Wi-Fi motherboard variant.
Q18. Does it have Bluetooth?
The standard B760M D3HP DDR4 does not list an integrated Bluetooth module. Bluetooth can be added using a compatible Wi-Fi/Bluetooth adapter.
Q19. Does it have Ethernet/LAN?
Yes. It features a Realtek Gigabit Ethernet LAN controller, supporting 10/100/1000 Mbps network connections.
Q20. Does it support PCIe 4.0?
Yes. The primary PCIe x16 slot supports PCIe 4.0, and the two M.2 connectors support PCIe 4.0 NVMe SSDs.
Q21. Does it support multiple monitors?
Yes. The motherboard provides D-Sub, HDMI and DisplayPort outputs and supports up to three displays simultaneously when supported by the installed processor's integrated graphics.
Q22. Can I use the motherboard without a graphics card?
Yes, provided the installed Intel processor has integrated graphics. The motherboard includes display outputs, but processors with an “F” suffix, such as many Intel Core i5/i7/i9 F-series models, do not have integrated graphics. In that situation, a dedicated graphics card is required.
Q23. Is B760M D3HP DDR4 suitable for an office PC?
Yes. It can be used for office, business and productivity systems with a compatible Intel processor and sufficient RAM/storage.
Q24. Does it support Windows?
GIGABYTE lists Windows support for this motherboard. For a new system, customers should use a currently supported Windows version and confirm driver availability for their chosen configuration.
