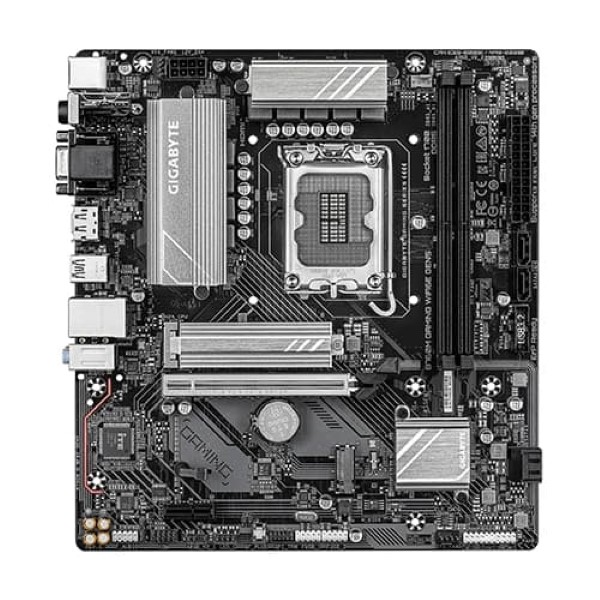

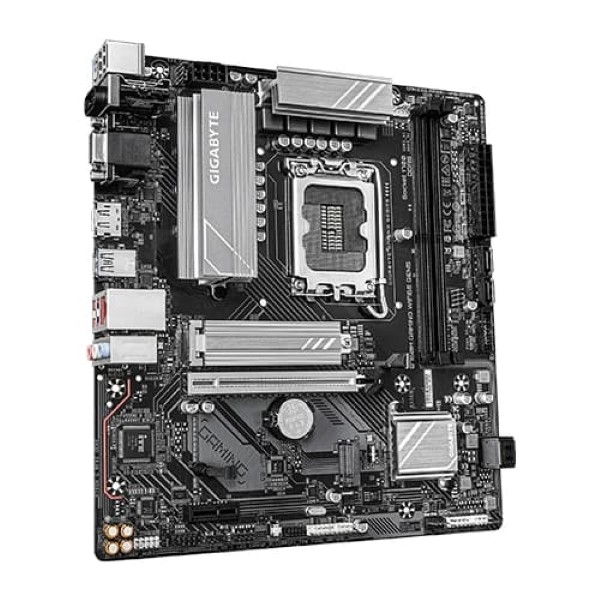

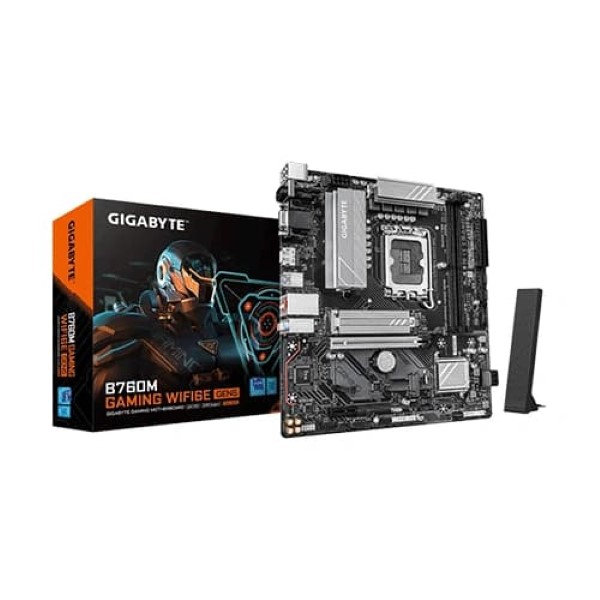

Gigabyte B760M Gaming WiFi6E M-ATX DDR5 Motherboard
In stock
Out of stock
₹12,100.00
- B760M-GAMING-WIFI6E-GEN5
- GIGABYTE B760M GAMING, Gigabyte B760M Gaming WiFi6E
FAQs
Yes, we provide GST billing for all eligible purchases. You will receive a GST invoice with your order.
Yes, this product includes official brand warranty as per the manufacturer’s terms.
Yes, EMI options (including No-cost EMI on select cards) may be available at checkout depending on your bank and order value.
Orders placed before the daily cut-off time are dispatched the same day (working days). Actual delivery time depends on your pincode.
| Platform | INTEL |
| Socket | LGA 1700 |
| Cpu Type | 14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron Processors |
| Chipset | B760 |
| Memory Speed | up to 8000 |
| Max Memory Support | 128 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for Extreme Memory Profile (XMP) memory modules | |
| (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) | |
| Graphics Port | 1x HDMI, 1x DisplayPort, 1x D-Sub |
| Expansion Slots | CPU: |
| 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 | |
| The PCIEX16 slot can only support a graphics card or an NVMe SSD. | |
| Chipset: | |
| 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 | |
| Wireless Networking | WiFi 6E,Bluetooth 5.3 |

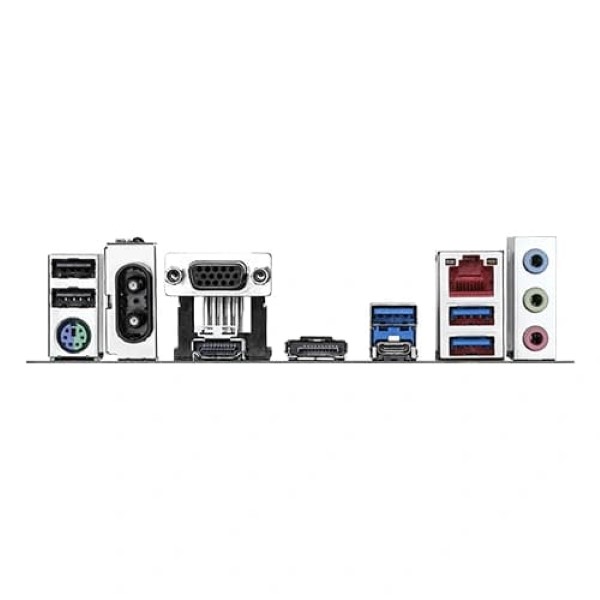

| Back Panel I/O Ports | 2 x USB 2.0/1.1 ports |
| 1 x PS/2 keyboard/mouse port | |
| 2 x antenna connectors (2T2R) | |
| 1 x D-Sub port (Note) | |
| 1 x HDMI port (Note) | |
| 1 x DisplayPort (Note) | |
| 3 x USB 3.2 Gen 1 ports | |
| 1 x USB Type-C port, with USB 3.2 Gen 1 support | |
| 1 x RJ-45 port | |
| 3 x audio jacks | |
| Internal I/O Connector | 1 x 24-pin ATX main power connector |
| 1 x 8-pin ATX 12V power connector | |
| 1 x CPU fan header | |
| 3 x system fan headers | |
| 2 x addressable RGB Gen2 LED strip headers | |
| 1 x RGB LED strip header | |
| 2 x M.2 Socket 3 connectors | |
| 4 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x S/PDIF Out header | |
| 1 x USB 3.2 Gen 1 header | |
| 2 x USB 2.0/1.1 headers | |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
| 1 x serial port header | |
| 1 x Q-Flash Plus button | |
| 1 x reset jumper | |
| 1 x Clear CMOS jumper | |
| Form Factor | Micro-ATX |
| Warranty | 3 Years |
| Note | Features, Price and Specifications are subject to change without notice. Images used for Representation Purpose Only |
