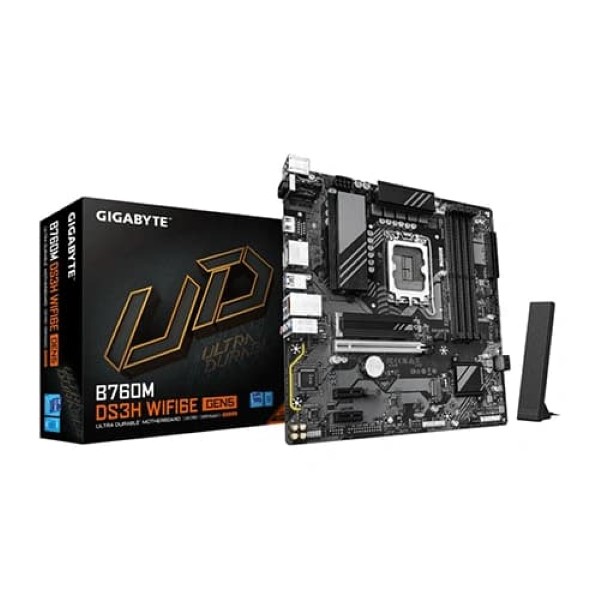

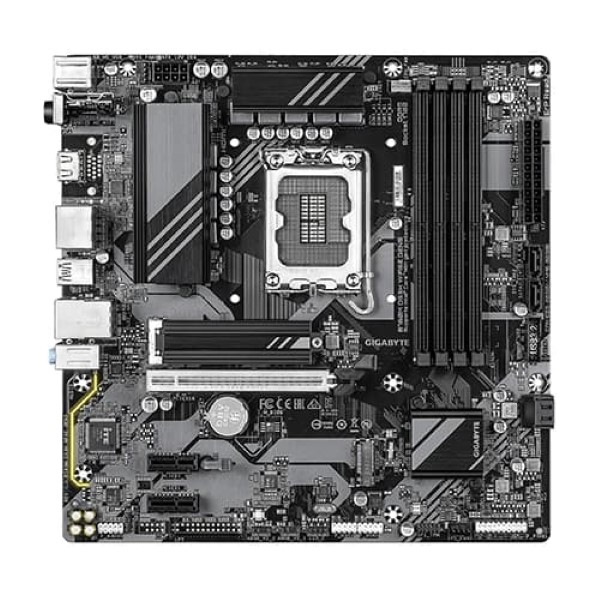

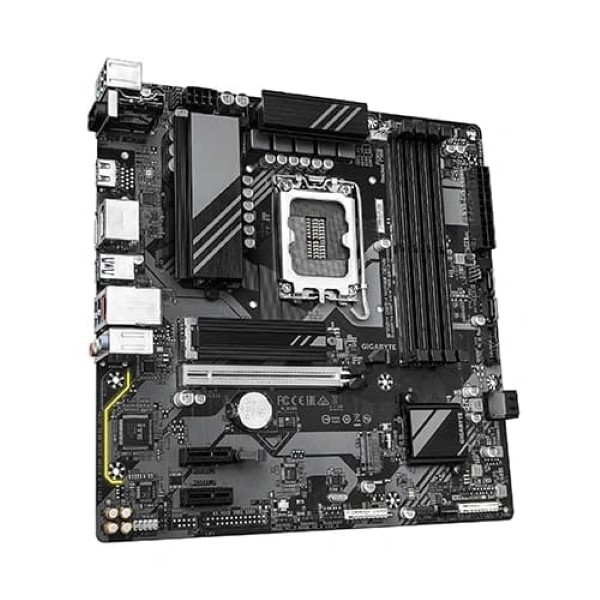

GIGABYTE B760M DS3H WIFI6E GEN5 M-ATX DDR5 Motherboard
In stock
Out of stock
₹14,140.00
- B760M-DS3H-WF6E-GEN5
- GIGABYTE B760M DS3H
FAQs
Yes, we provide GST billing for all eligible purchases. You will receive a GST invoice with your order.
Yes, this product includes official brand warranty as per the manufacturer’s terms.
Yes, EMI options (including No-cost EMI on select cards) may be available at checkout depending on your bank and order value.
Orders placed before the daily cut-off time are dispatched the same day (working days). Actual delivery time depends on your pincode.
| Platform | INTEL |
| Socket | LGA1700 |
| Cpu Type | 14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron |
| Chipset | B760 |
| Memory Speed | up to 7600 |
| Max Memory Support | 256 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for Extreme Memory Profile (XMP) memory modules | |
| (The CPU andmemory configurationmay affect the supportedmemory types, data rate (speed), and number of DRAM modules | |
| , please refer to "Memory Support List" on Brand website for more information.) | |
| Graphics Port | 2 x DisplayPort, 1 x HDMI |
| Expansion Slots | CPU: |
| - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 | |
| * The PCIEX16 slot can only support a graphics card or an NVMe SSD. | |
| Chipset: | |
| - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 | |
| Wireless Networking | Wi-Fi 6E,Bluetooth 5.3 |

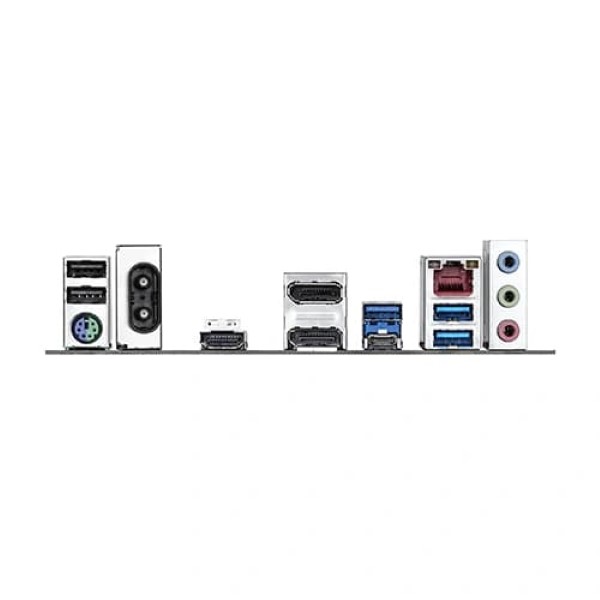

| Back Panel I/O Ports | 2 x USB 2.0/1.1 ports |
| 1 x PS/2 keyboard/mouse port | |
| 2 x antenna connectors (2T2R) | |
| 1 x HDMI port (Note) | |
| 2 x DisplayPorts (Note) | |
| 3 x USB 3.2 Gen 1 ports | |
| 1 x USB Type-C port, with USB 3.2 Gen 2 support | |
| 1 x RJ-45 port | |
| 3 x audio jacks | |
| Internal I/O Connector | 1 x 24-pin ATX main power connector |
| 1 x 8-pin ATX 12V power connector | |
| 1 x CPU fan header | |
| 3 x system fan headers | |
| 2 x addressable RGB Gen2 LED strip headers | |
| 1 x RGB LED strip header | |
| 2 x M.2 Socket 3 connectors | |
| 4 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x USB 3.2 Gen 1 header | |
| 2 x USB 2.0/1.1 headers | |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
| 1 x S/PDIF Out header | |
| 1 x Q-Flash Plus button | |
| 1 x reset jumper | |
| 1 x Clear CMOS jumper | |
| Form Factor | Micro-ATX |
| Warranty | 3 Years |
| Note | Features, Price and Specifications are subject to change without notice. Images used for Representation Purpose Only |
