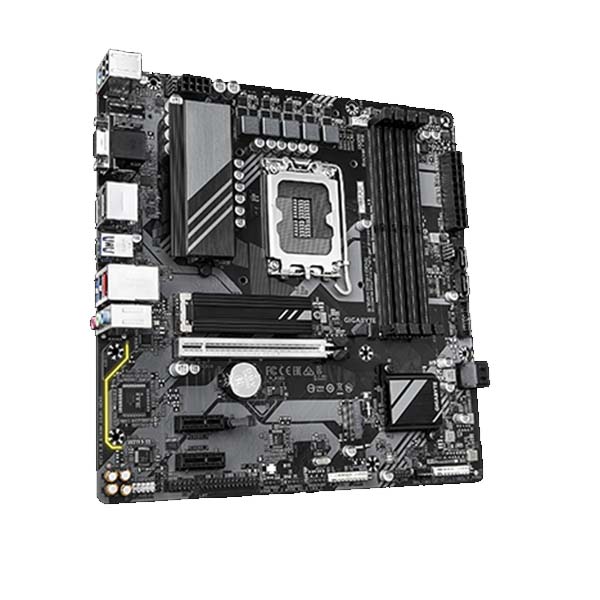

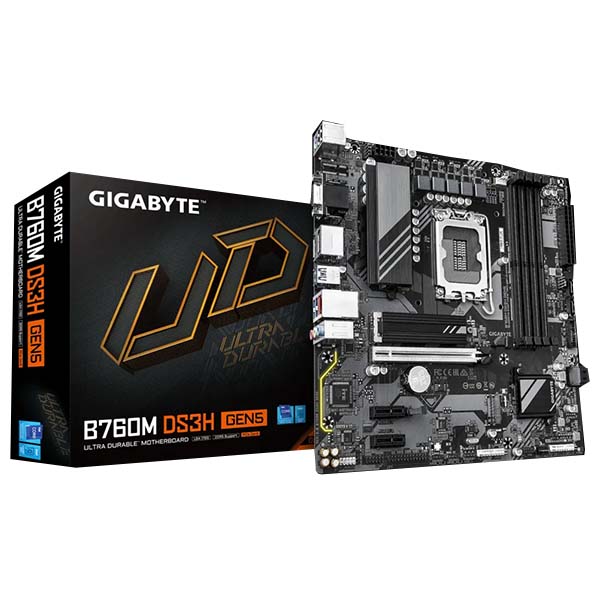

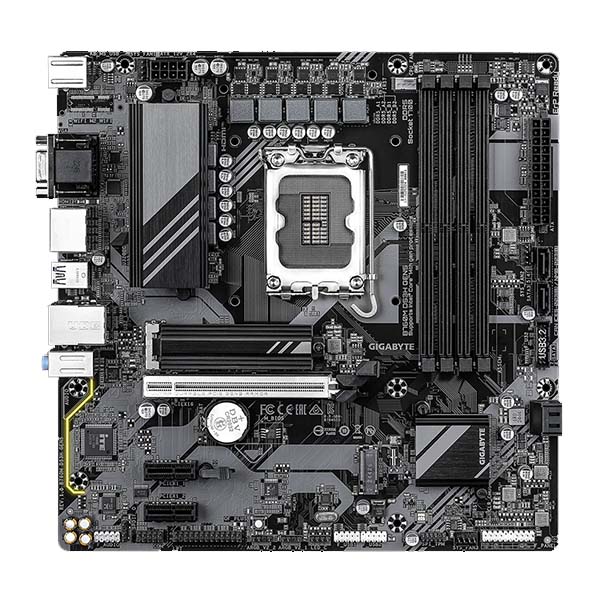

Gigabyte B760M DS3H GEN5 DDR5 INTEL LGA1700 M-ATX Motherboard

Name: Gigabyte B760M DS3H GEN5 DDR5 INTEL LGA1700 M-ATX Motherboard
Brand: Gigabyte
SKU: B760M-DS3H-GEN5
Price: 12400 INR
Availability: InStock

Express to PCIE5 Performance

The new Gigabyte B760M DS3H GEN5 motherboards provides the most efficient solution to enjoy boosted performance of PCIe Gen5 on the existing platform. PCIe 5.0 doubles the data transfer rate of PCIe 4.0 from 16 GT/s to 32 GT/s per lane. This substantial increase in bandwidth particularly benefits high-performance graphics cards, storage devices, and AI accelerators that demand faster data movement.

Durable Performance

Gigabyte B760M DS3H GEN5 motherboards built with optimal components inside out provide the prime performance and timeless platform.

PCIe UD Slot

GIGABYTE's one-piece stainless-steel shielding design reinforces the PCIe Slots, providing the extra strength required to support heavy graphics cards.

UD Power Connector

Our innovative UD Power Connector design enhances power conductivity and thermal dissipation.

Solid Pins

Delivers superior conductivity and signal transmission and reduces metal wear from repeated connections

VRM Thermal

Gigabyte B760M DS3H GEN5 Durable VRM heatsinks keep your system cool and efficient.

Hybrid VRM Design

The best VRM design ever built with the highest quality components. Delivers enhanced system performance with ultimate hardware scalability.

Smart Fan 6

Cool. Quiet. Customized.

Unlock DDR5 Performance

GIGABYTE is offering a tested and proven platform with extreme memory performance boost.

Future Connectivity

The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.

2.5G LAN

Gigabyte B760M DS3H GEN5 design deliver blisteringly fast transfer speeds to ensure the most stable transmission environment when the system is performing cloud computing or providing external computing services.

Connecting the Future - USB3.2 Gen 2 Type-C®

USB 3.2 Gen 2 provides USB 3.2 Gen 2 ports with speeds up to 10Gbps. With twice the bandwidth compared to its previous generation as well as backwards compatibility with USB 2.0 and USB 3.2 Gen1, the much improved USB 3.2 Gen 2 protocol is available over the new reversible USB Type-C™ and the traditional USB Type-A connector for better compatibility over a wider range of devices.

CPU Support	LGA1700 socket: Supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® processors
Chipset	Intel® B760 Express
Memory	- DDR5 5600/5200/4800/4400 MT/s (i9/i7) - DDR5 4800/4400 MT/s (i5/i3/Pentium/Celeron) - 4x DDR5 DIMM (up to 256 GB) - ECC/non-ECC Un-buffered DIMMs
Graphics (iGPU)	- D-Sub (1920x1200@60Hz) - HDMI 2.1 (4096x2160@60Hz) - 2x DisplayPort 1.2 (4096x2304@60Hz) - Quad display support
Audio	Realtek® Audio CODEC, 7.1-channel HD Audio, S/PDIF Out
LAN	Realtek® 2.5GbE LAN
Expansion Slots	- 1x PCIe x16 (Gen5) - 2x PCIe x1 (Gen3)
Storage	- 2x M.2 PCIe 4.0 x4/x2 (2280) - 4x SATA 6Gb/s - RAID 0, 1, 5, 10
USB Ports	- 1x USB-C 3.2 Gen 2 - 5x USB 3.2 Gen 1 (3 rear, 2 internal) - 6x USB 2.0 (2 rear, 4 internal via headers)
Internal Headers	24-pin ATX, 8-pin 12V, 3x fan, RGB Gen2, TPM, SPDIF, front panel, serial, parallel, USB headers, reset/CMOS jumper, Q-Flash Plus
Back Panel I/O	2x USB 2.0, PS/2, D-Sub, HDMI, 2x DisplayPort, 3x USB 3.2 Gen 1, 1x USB-C 3.2 Gen 2, RJ-45, 3x Audio jacks
I/O Controller	iTE® I/O Controller
Monitoring	Voltage, temperature, fan speed, water flow rate, fan fail warning, smart fan control
BIOS	128 Mbit flash, UEFI BIOS, Q-Flash, Q-Flash Plus
Software	Norton Internet Security (OEM), GIGABYTE Control Center (GCC)
OS Support	Windows 11/10 64-bit
Form Factor	Micro ATX, 24.4cm x 24.4cm
