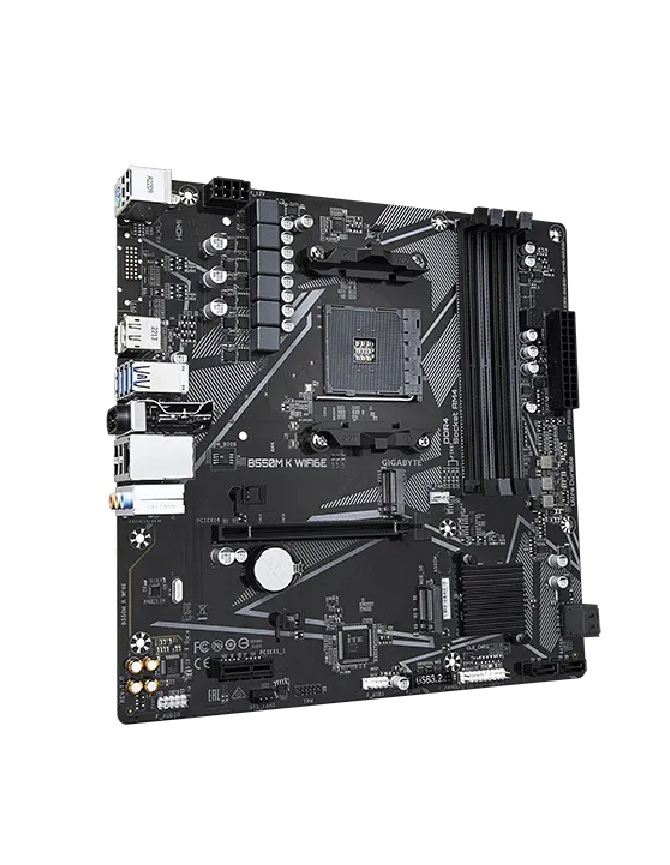

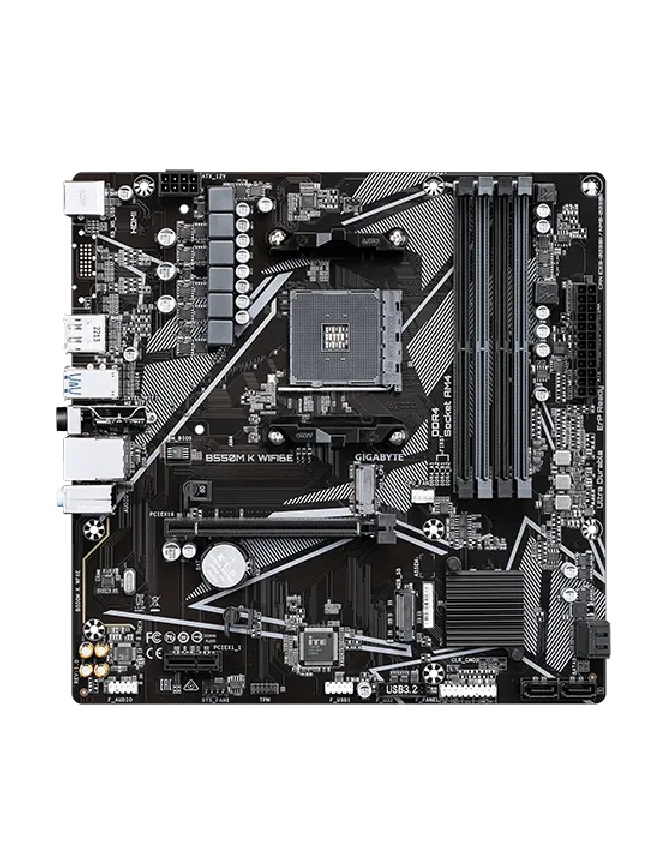

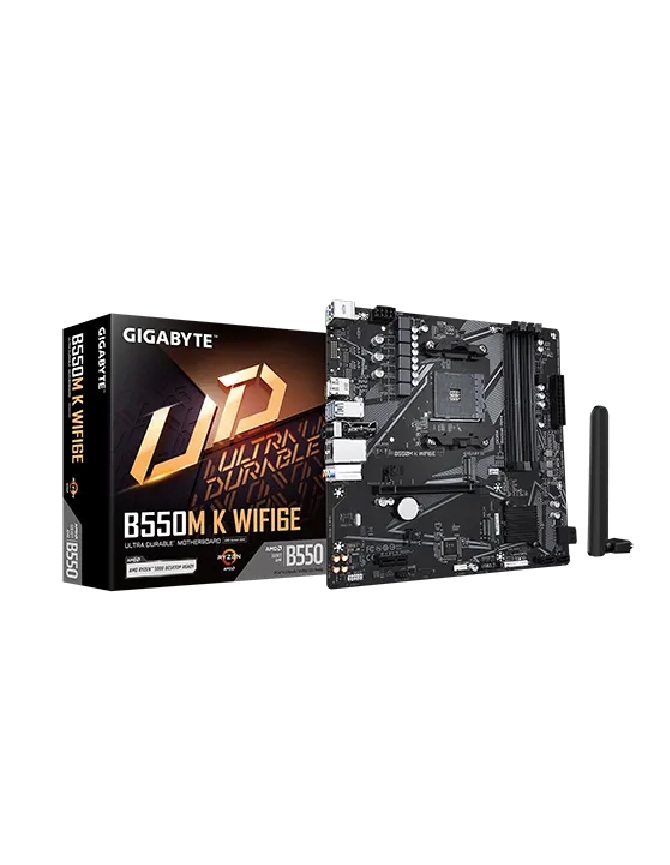

Gigabyte B550M K Wifi6E AMD AM4 M-ATX Motherboard
The GIGABYTE B550M K WIFI6E is a compact Micro ATX motherboard designed for AMD Ryzen processors using the AM4 socket. Powered by the AMD B550 chipset, it supports AMD Ryzen 5000, 5000 G-Series, 4000 G-Series, 3000 and 3000 G-Series processors.
It features 4 DDR4 DIMM slots supporting up to 128GB of system memory, with memory speeds up to DDR4-4733 MT/s (O.C.). For graphics, it provides a PCIe 4.0 x16 slot, while storage is supported through 2 × M.2 connectors and 4 × SATA 6Gb/s ports.

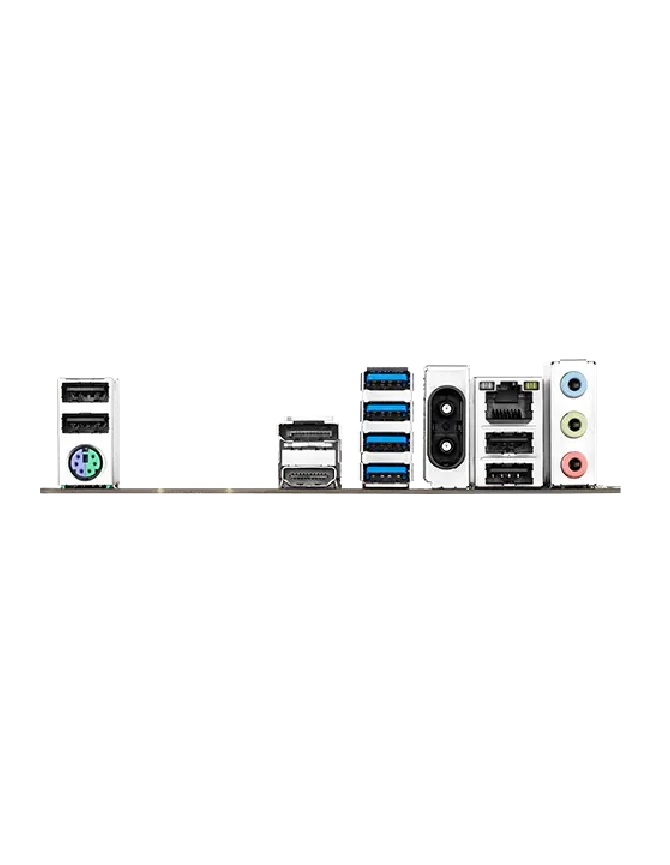

For wireless connectivity, the B550M K WIFI6E includes MediaTek Wi-Fi 6E with 2.4GHz, 5GHz and 6GHz support, along with Bluetooth 5.3. It also features Gigabit LAN, HDMI 2.1, DisplayPort 1.4, Smart Fan 6 and Q-Flash support.
With its compact Micro ATX design and modern connectivity, the B550M K WIFI6E is suitable for AMD Ryzen gaming PCs, home/office systems, multitasking and everyday performance builds.
The GIGABYTE B550M K WIFI6E is a Micro ATX motherboard for compatible AMD Ryzen processors using the AM4 socket. It is a practical choice for an AM4 gaming PC, a compact work computer, or an upgrade that needs built-in Wi-Fi. With four DDR4 memory slots, two M.2 SSD connectors, Wi-Fi 6E, Bluetooth 5.3 and Gigabit LAN, it covers the essentials without requiring a separate wireless adapter.
Use cases
Gaming PC: Pair a compatible Ryzen processor with a dedicated graphics card and an NVMe SSD. The main graphics slot supports PCIe 4.0 x16 with supported Ryzen 3000 and 5000 Series processors.
Home or office desktop: Built-in Wi-Fi, Bluetooth and wired LAN give you several ways to connect. The Micro ATX size suits a compact case that supports this motherboard format.
Work and multitasking: Four DDR4 slots support up to 128 GB of memory, giving you flexibility to choose a RAM configuration for everyday work or more demanding applications.
Existing AM4 upgrade: If you already own a compatible Ryzen CPU and DDR4 RAM, this board offers built-in wireless networking and room for additional storage. Check your exact parts against GIGABYTE’s compatibility lists first.
Common buying questions
Which CPUs does it support?
Selected AMD Ryzen 3000 and 5000 Series processors, including compatible 3000, 4000 and 5000 G-Series models. Your exact CPU may require a particular BIOS version.
Can I install two M.2 SSDs?
Yes. The CPU-connected slot can support PCIe 4.0 with a compatible processor. The second slot supports PCIe 3.0 x2 SSDs, so the two slots do not have identical capabilities. The board also has four SATA 6 Gb/s ports.
Does it have Wi-Fi and Bluetooth?
Yes. It includes Wi-Fi 6E, Bluetooth 5.3 and Gigabit Ethernet. Using the Wi-Fi 6 GHz band requires compatible network equipment and local availability.
Will the HDMI or DisplayPort work without a graphics card?
Only if your installed processor has compatible integrated graphics. With a CPU that has no integrated graphics, you will need a dedicated graphics card for display output.
Does it support DDR5 or AM5?
No. This motherboard uses DDR4 Memory and the AMD AM4 socket. It does not support DDR5 RAM or AM5 processors.
Before ordering, confirm that your CPU is on GIGABYTE’s support list, your case supports Micro ATX, and the motherboard revision matches the specifications you need. These details are based on GIGABYTE’s published B550M K WIFI6E specifications
