| Model |
|
| Brand |
ASRock |
| Model |

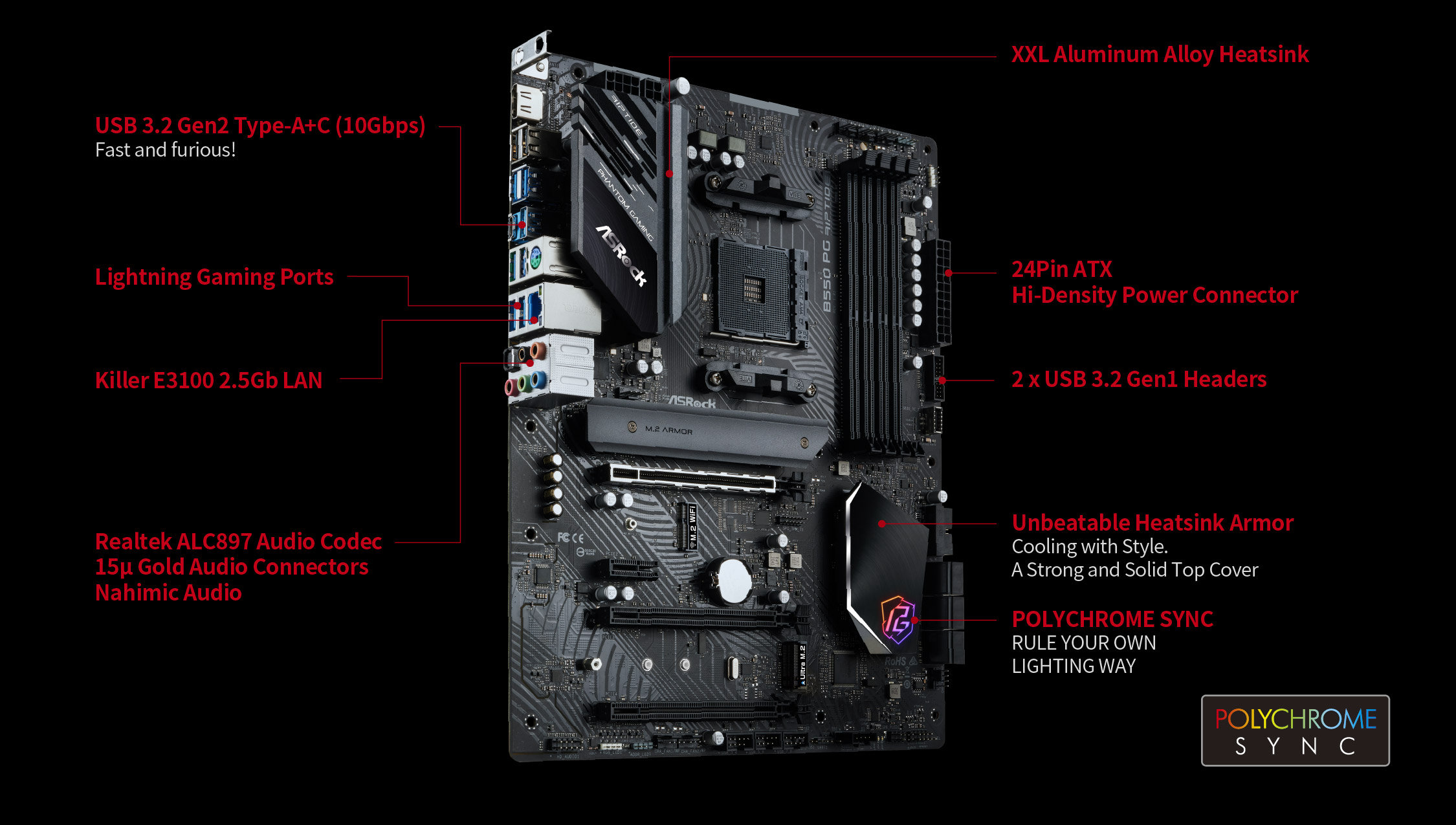

B550 PG RIPTIDE |
| Supported CPU |
|
| CPU Socket Type |
AM4 |
| CPU Type |
Supports AMD Ryzen 5000 Series / 4000 G-Series / 3000 Series Processors * |
|
|
|
* Not compatible with AMD Ryzen 5 3400G and Ryzen 3 3200G. |
| Chipsets |
|
| Chipset |
AMD B550 |
| Memory |
|
| Number of Memory Slots |
4x288pin (DDR4) |
| Memory Standard |
DDR4 4933+(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 (AMD Ryzen series CPUs (Vermeer&Matisse), APUs (Renoir))* |
|
|
|
* For Ryzen Series APUs (Renoir), ECC is only supported with PRO CPUs. |
| Maximum Memory Supported |
128GB |
| Channel Supported |
Dual Channel |
| ECC Supported |
Yes |
| Buffer Supported |
Un-buffered |
| Expansion Slots |
|
| PCI Express 4.0 x16 |
1 x PCI Express 4.0 x16* |
|
|
|
* Actual support may vary by CPU. |
|
* Supports NVMe SSD as boot disks. |
| PCI Express 3.0 x16 |
2 x PCI Express 3.0 x16* |
|
|
|
* Supports NVMe SSD as boot disks. |
|
* If PCIE2 or PCIE4 is occupied, PCIE3 will downgrade to x2 mode. |
| PCI Express x1 |
1 x PCI Express 3.0 x1 |
| Other Slots |
15µ Gold Contact in VGA PCIe Slot (PCIE1) |
|
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
| Storage Devices |
|
| SATA 6Gb/s |
6 x SATA 6Gb/s |
| M.2 |
1 x Hyper M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Renoir)* |
|
|
|
1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)* |
|
|
|
* If M2_2 is occupied, SATA3_5_6 will be disabled. |
|
* Supports NVMe SSD as boot disks. |
|
* Supports ASRock U.2 Kit. |
| SATA RAID |
0/1/10 |
| Onboard Video |
|
| Onboard Video Chipset |
Supported only by CPU with integrated graphic |
| Onboard Audio |
|
| Audio Chipset |
Realtek ALC897 |
| Audio Channels |
7.1 Channels |
| Onboard LAN |
|
| LAN Chipset |
Killer E3100G |
| Max LAN Speed |
10/100/1000/2500Mbps |
| Rear Panel Ports |
|
| Back I/O Ports |
1 x Antenna Mounting Bracket |
|
1 x PS/2 Mouse/Keyboard Port |
|
1 x HDMI Port |
|
1 x Optical SPDIF Out Port |
|
1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) |
|
1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) |
|
6 x USB 3.2 Gen1 Ports (Supports ESD Protection)* |
|
2 x USB 2.0 Ports (Supports ESD Protection) |
|
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
|
HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) |
|
|
|
* USB3_56 are the Lightning Gaming Ports. |
| Internal I/O Connectors |
|
| Onboard USB |
3 x USB 2.0 Headers (Support 6 USB 2.0 ports) (Supports ESD Protection) |
|
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection) |
|
1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection) |
| Other Connectors |
1 x SPI TPM Header |
|
1 x Power LED and Speaker Header |
|
2 x RGB LED Headers* |
|
2 x Addressable LED Headers** |
|
1 x CPU Fan Connector (4-pin)*** |
|
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** |
|
5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** |
|
1 x Front Panel Audio Connector |
|
1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card only) |
|
|
|
* Support in total up to 12V/3A, 36W LED Strip. |
|
** Support in total up to 5V/3A, 15W LED Strip. |
|
*** The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. |
|
**** The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. |
|
***** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. |
|
***** CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP, CHA_FAN4/WP and CHA_FAN5/WP can auto detect if 3-pin or 4-pin fan is in use. |
| Physical Spec |
|
| Form Factor |
ATX |
| LED Lighting |
None RGB |
| Dimensions (W x L) |
12.0″ x 9.6″ |
| Power Pin |
1 x 24 pin ATX Power Connector (Hi-Density Power Connector) |
|
1 x 8 pin 12V Power Connector (Hi-Density Power Connector) |
|
1 x 4 pin 12V Power Connector (Hi-Density Power Connector) |
| Features |
|
| Features |
Unique Feature: |
|
ASRock USB 3.2 Gen2 |
|
ASRock Front Panel USB 3.2 Gen2 Type-C Header (10 Gb/s) |
|
ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s) |
|
ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s) |
|
ASRock Super Alloy |
|
XXL Aluminum Alloy Heatsink |
|
Premium 60A Power Choke |
|
50A Dr. MOS |
|
Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke) |
|
Matte Black PCB |
|
High Density Glass Fabric PCB |
|
2oz Copper PCB |
|
Killer 2.5G LAN |
|
ASRock Lightning Gaming Port |
|
ASRock Steel Slot Gen4 |
|
ASRock Full Coverage M.2 Heatsink |
|
ASRock Hyper M.2 (PCIe Gen4x4) |
|
ASRock POST Status Checker (PSC) |
|
ASRock Full Spike Protection (for all USB, Audio, LAN Ports) |
|
ASRock Live Update & APP Shop |
|
|
|
BIOS: |
|
256Mb AMI UEFI Legal BIOS with GUI support |
|
Supports “Plug and Play” |
|
ACPI 5.1 compliance wake up events |
|
Supports jumperfree |
|
SMBIOS 2.3 support |
|
CPU, VDDCR_SOC, DRAM, VPPM, +1.8V Voltage Multi-adjustment |
|
|
|
Software and UEFI: |
|
Software |
|
ASRock Motherboard Utility (Phantom Gaming Tuning) |
|
ASRock Killer LAN Software |
|
ASRock Polychrome SYNC* |
|
UEFI |
|
ASRock Full HD UEFI |
|
ASRock Instant Flash |
|
* These utilities can be downloaded from ASRock Live Update & APP Shop. |
|
|
|
Support CD: |
|
Drivers, Utilities, Antivirus Software (Trial Version), Google Chrome Browser and Toolbar |
|
|
|
Hardware Monitor: |
|
Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans |
|
Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans |
|
Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans |
|
Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, CPU VDD 1.8V |
|
|
|
OS: |
|
Microsoft Windows 10 64-bit / 11 64-bit |
|
|
|
Certifications: |
|
FCC, CE |
|
ErP/EuP ready (ErP/EuP ready power supply is required) |
|
CEC Tier II ready |
| Packaging |
|
| Package Contents |
Accessories: |
|
Quick Installation Guide, Support CD, I/O Shield |
|
2 x SATA Data Cables |
|
1 x Graphics Card Holder |
|
x Screws for M.2 Sockets
|
|
1 x Standoff for M.2 Socket |
