SILVERSTONE SX700-G SFX 700 WATT 80 PLUS GOLD CERTIFICATION FULLY MODULER PSU WITH ACTIVE PFC

Availability:

In stock


  • Support standard SFX form factor
  •  Silent running 92mm FDB fan with 18 dBA minimum
  •  All Japanese capacitors
  •  High efficiency with 80 PLUS Gold certification
  •  Class-leading single +12V rail
  •  Strict ±3% voltage regulation and low ripple & noise
  •  100% modular cables
  •  All cable with flexible flat arrays
  •  Dual EPS 8pin with multiple PCI-E 8 / 6pin connectors support (V1.1)

11,449 16,999

In stock

SILVERSTONE SX700-G SFX 700 WATT 80 PLUS GOLD CERTIFICATION FULLY MODULER PSU WITH ACTIVE PFC



  • SILVERSTONE SX700-G SFX Designed for 80 PLUS Gold level of efficiency to reduce wasted heat and save on electricity.



  • Built-in 92mm FDB fan has excellent airflow and low noise, perfect for quiet home or office use.

  • 100% modular cable design for easy removal in a case with cable routed and tied down.

  • Silverstone’s flexible flat cables have much greater flexibility to allow for tighter folding and management of cables.

  • Equipped with Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking.

  • ±3% regulation and low ripple & noise performance for high stability.







SKU: SST-SX700-G Category: Tags: , , , ,

Brand

Silverstone

Founded in 2003, SilverStone is an established leader in its field, with an elite team of engineers; we started our quest of providing products that create inspirations.  We have since expanded the lines of products as well as types of products we produce, giving our customers a wide selection of choices.

With distribution centers in different areas of the globe, SilverStone products can be seen all over the world, not just for computer users but also for home entertainment use.  Providing leisure with integration of advanced technologies that is functional and making them enjoyable to use.

Here at SilverStone Technology, we continue to pride ourselves in providing the highest level of standards in designing and manufacturing computer enclosures, power supplies, and accessories.  Our pursuit for the first class aesthetic appeal is relentless; our teams of devoted engineers are constantly searching for the best technologies that suit end-users with different needs and will make our products as technologically sound as they are beautiful.

Read more at https://bit.ly/3a0Wbo8

PSU Watts

Model No. SST-SX700-G
Max. DC Output 700W
Power density 882W per liter
Load Range
+3.3V +5V +12V +5VSB -12V
Max.(Amps) 22A 22A 58.4A 2.5A 0.3A
Peak (Amps) / / / / /
Min.(Amps) 0A 0A 0A 0A 0A
Range (%) ±3% ±3% ±3% ±5% ±10%
Line Reg.(%) ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p) 50mV 50mV 120mV 50mV 120mV
Color Black(Lead-Free Paint)
Combined +3.3V & +5V 110W
Combined +12V 700W
Input Voltage 90V ~ 264V
Input Frequency Range 47Hz ~ 63Hz
PFC Active PFC (PF>0.9 at full load)
Efficiency 87% ~ 90% at 20% ~ 100% loading
MTBF 100,000 hours
Operating temperature 0°C ~ 40°C
Protection Over current protection
Over power protection
Over voltage protection
Short circuit protection
Under voltage protection
Over temperature protection

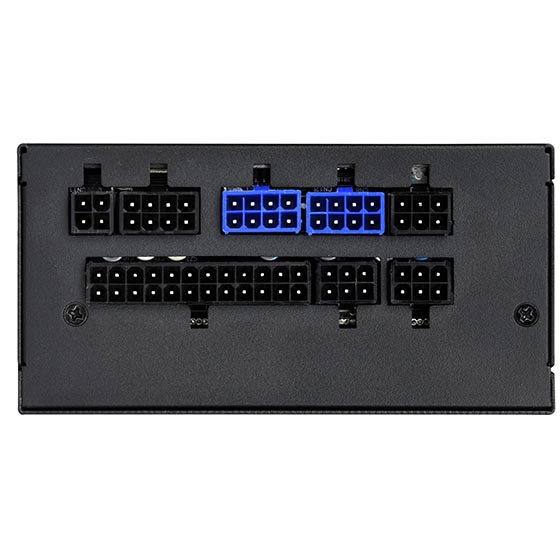

Connectors V1.0
1 x 24 / 20-Pin motherboard connector (300mm)
1 x 8 / 4-Pin EPS / ATX 12V connector (400mm)
2 x 8 / 6-Pin PCIe connector (400mm / 150mm)
2 x 8 / 6-Pin PCIe connector (550mm / 150mm)
6 x SATA connector (“300mm / 200mm / 100mm” x 2)
3 x 4-Pin Peripheral connector (300mm / 200mm / 200mm)
1 x 4-Pin Floppy connector (100mm)
V1.1
1 x 24 / 20-Pin motherboard connector (300mm)
*1 x 8-Pin EPS and 1 x 4-Pin + 4-Pin ATX 12V connector (400mm / 150mm)
2 x 8 / 6-Pin PCIe connector (400mm / 150mm)
2 x 8 / 6-Pin PCIe connector (550mm / 150mm)
6 x SATA connector (“300mm / 200mm / 100mm” x 2)
3 x 4-Pin Peripheral connector (300mm / 200mm / 200mm)
1 x 4-Pin Floppy connector (100mm)
Cooling System Single 92mm FDB fan
Form factor SFX
Noise Level 18 dBA minimum
Dimension 125 mm (W) x 63.5 mm (H) x 100 mm (D)
4.92″ (W) x 2.5″ (H) x 3.94″ (D)
Weight 1.4 Kg
Certification 80 PLUS Gold
Other
Compatible with ATX12V v2.4
