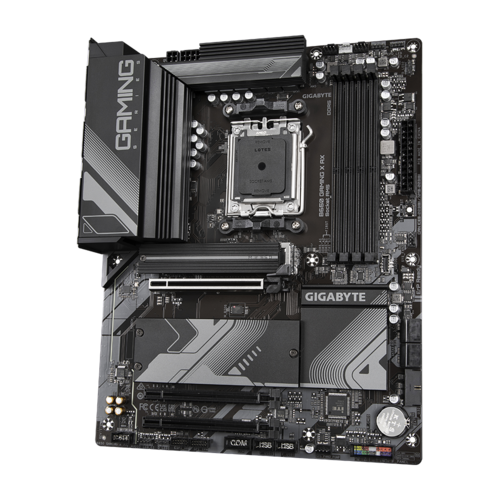

Gigabyte B650 Gaming X AX V2 (Wi-Fi) AMD AM5 DDR5 ATX Motherboard
Out of stock
₹20,490 ₹29,890
Out of stock
Gigabyte B650 Gaming X AX V2 (Wi-Fi) AMD AM5 DDR5 ATX Motherboard
Gigabyte B650 GAMING X AX V2 Supports AMD Ryzen 7000 Series Processors, Dual Channel DDR5 RAM, Advanced Thermal Design & M.2 Thermal Guard, 2.5GbE LAN & Wi-Fi 6E 802.11ax
- AMD Socket AM5:B650 Gaming X AX V2 Motherboard Supports AMD Ryzen™ 7000 Series Processors
- Unparalleled Performance : Direct 8+2+1 Phases Digital VRM Solution
- Dual Channel DDR5:4SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- SuperSpeed Storage:3PCIe 4.0 x4 M.2 Connectors
- Advanced Thermal Design & M.2 Thermal Guard : To Ensure VRM Power Stability & 25110 M.2 SSD Performance
- PCIe x16 EZ-Latch : with Quick Release & Screwless Design
- Fast Networks:2.5GbE LAN & Wi-Fi 6E 802.11ax
- Extended Connectivity : DP, HDMI, Rear USB-C® 10Gb/s, Front USB-C® 20Gb/s
- Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card
MOTHERBOARD CHIPSET | |
---|---|
Motherboard Brand and Chipset | |
MOTHERBOARD FORM FACTOR | |
MOTHERBOARD SOCKET |
CPU | AMD Socket AM5, support for: AMD Ryzenâ„¢ 7000 Series Processors |
Chipset | AMD B650 |
Memory | Support for DDR5 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules |
4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory | |
Dual channel memory architecture | |
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
Support for AMD Extended Profiles for Overclocking (AMD EXPOâ„¢) and Extreme Memory Profile (XMP) memory modules | |
Onboard Graphics | Integrated Graphics Processor: |
1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz | |
Support for DisplayPort 1.4 version and HDR. | |
1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz | |
Support for HDMI 2.1 version and HDCP 2.3. | |
Support native HDMI 2.1 TMDS compatible ports. | |
Audio | Realtek® Audio CODEC |
High Definition Audio | |
2/4/5.1/7.1-channel | |
LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
Wireless Communication module | AMD Wi-Fi 6E RZ616 (MT7922A22M) (For PCB rev. 1.0) |
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands | |
BLUETOOTH 5.2 | |
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate | |
Intel® Wi-Fi 6E AX210 (For PCB rev. 1.1) | |
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands | |
BLUETOOTH 5.3 | |
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate | |
Expansion Slots | CPU: |
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) | |
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. | |
Chipset: | |
2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2) | |
Storage Interface | CPU: |
2 x M.2 connectors (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU, M2B_CPU) | |
Chipset: | |
1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB) | |
4 x SATA 6Gb/s connectors | |
USB | CPU: |
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support | |
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel | |
1 x USB 3.2 Gen 1 port on the back panel | |
CPU + USB 2.0 Hub: | |
3 x USB 2.0/1.1 ports on the back panel | |
Chipset: | |
1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header | |
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) | |
4 x USB 2.0/1.1 ports available through the internal USB headers | |
Internal I/O Connectors | 1 x 24-pin ATX main power connector |
1 x 8-pin ATX 12V power connector | |
1 x 4-pin ATX 12V power connector | |
1 x CPU fan header | |
1 x water cooling CPU fan header | |
2 x system fan headers | |
1 x system fan/water cooling pump header | |
2 x addressable LED strip headers | |
2 x RGB LED strip headers | |
1 x CPU cooler LED strip/RGB LED strip header | |
3 x M.2 Socket 3 connectors | |
4 x SATA 6Gb/s connectors | |
1 x front panel header | |
1 x front panel audio header | |
1 x USB Type-C® header, with USB 3.2 Gen 2×2 support | |
1 x USB 3.2 Gen 1 header | |
2 x USB 2.0/1.1 headers | |
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
1 x serial port header | |
1 x reset button | |
1 x reset jumper | |
1 x Clear CMOS jumper | |
Back Panel Connectors | 2 x SMA antenna connectors (2T2R) |
1 x Q-Flash Plus button | |
1 x DisplayPort | |
1 x HDMI port | |
1 x USB Type-C® port, with USB 3.2 Gen 2 support | |
1 x USB 3.2 Gen 2 Type-A port (red) | |
3 x USB 3.2 Gen 1 ports | |
3 x USB 2.0/1.1 ports | |
1 x RJ-45 port | |
3 x audio jacks | |
I/O Controller | iTE® I/O Controller Chip |
H/W Monitoring | Voltage detection |
Temperature detection | |
Fan speed detection | |
Water cooling flow rate detection | |
Fan fail warning | |
Fan speed control | |
BIOS | 1 x 256 Mbit flash |
Use of licensed AMI UEFI BIOS | |
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
Unique Features | Support for GIGABYTE Control Center (GCC) |
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. | |
Support for Q-Flash | |
Support for Q-Flash Plus | |
Bundled Software | Norton® Internet Security (OEM version) |
LAN bandwidth management software | |
Operating System | Support for Windows 11 64-bit |
Support for Windows 10 64-bit | |
Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
Warranty | 3 Years |
