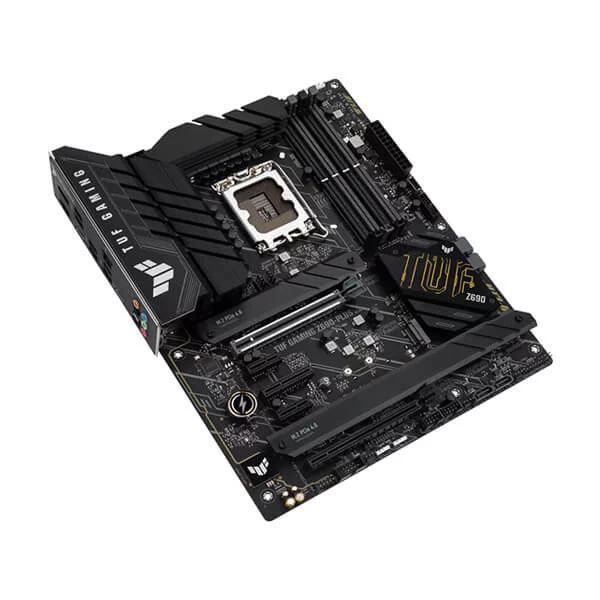

CPU |
Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
Chipset |
Intel® Z690 |
Memory |
4 x DIMM, Max. 128GB, DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory |
Dual Channel Memory Architectur |
e Supports Intel® Extreme Memory Profile (XMP) |
OptiMem II |
Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration |
Graphics |
1 x DisplayPort** |
1 x HDMI® port*** |
Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates |
Supports max. 4K@60Hz as specified in DisplayPort 1.4 |
Supports 4K@60Hz as specified in HDMI 2.1. |
VGA resolution support depends on processors’ or graphic cards’ resolution. |
Expansion Slots |
Intel® 12th Gen Processors |
1 x PCIe 5.0 x16 slot |
Intel® Z690 Chipset |
1 x PCIe 3.0 x16 slot (supports x4 mode) |
1 x PCIe 3.0 x4 slot |
2 x PCIe 3.0 x1 slots |
Supports Intel® Optane Memory H Series on PCH-attached PCIe slot |
Storage |
Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports |
Intel® 12th Gen Processors |
M.2_1 slot (Key M), type 2242/2260/2280/22110 |
Intel® 12th Gen processors support PCIe 4.0 x4 mode |
Intel® Z690 Chipset |
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) |
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) |
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
4 x SATA 6Gb/s ports |
Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. |
Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots. |
Ethernet |
1 x Intel® 2.5Gb Ethernet |
TUF LANGuard |
USB |
Rear USB (Total 8 ports) |
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) |
2 x USB 3.2 Gen 2 ports (2 x Type-A) |
5 x USB 3.2 Gen 1 ports (4 x Type-A + 1 x USB Type-C®) |
Front USB (Total 7 ports) |
1 x USB 3.2 Gen 2 connector (supports USB Type-C®) |
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports |
2 x USB 2.0 headers support additional 4 USB 2.0 ports |
Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC |
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking |
– Supports up to 24-Bit/192 kHz playback |
Audio Features – |
Audio Shielding |
– Rear optical S/PDIF out port – Premium audio capacitors |
– Dedicated audio PCB layers |
Audio Cover |

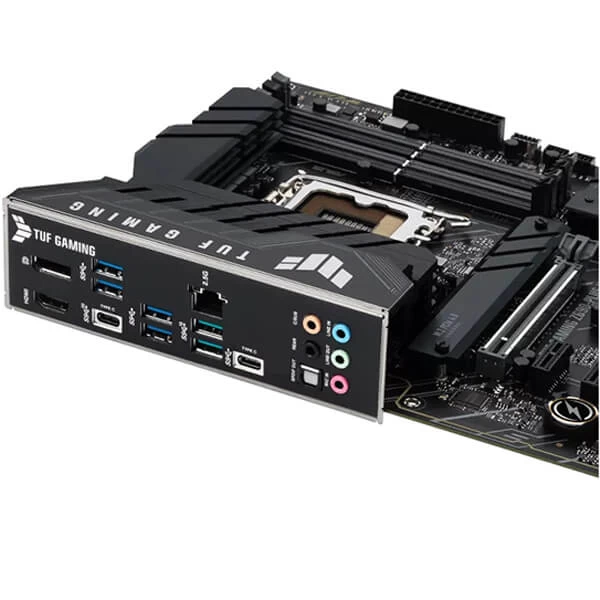

Back Panel I/O Ports |
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) |
2 x USB 3.2 Gen 2 ports (2 x Type-A) |
5 x USB 3.2 Gen 1 ports (4 x Type-A + 1 x USB Type-C®) |
1 x DisplayPor |
t 1 x HDMI® port |
1 x Intel® 2.5Gb Ethernet port |
5 x Audio jacks |
1 x Optical S/PDIF out port |
Internal I/O Connectors |
Fan and Cooling related |
1 x 4-pin CPU Fan header |
1 x 4-pin CPU OPT Fan header |
1 x 4-pin AIO Pump header |
4 x 4-pin Chassis Fan headers |
Power related |
1 x 24-pin Main Power connecto |
r 1 x 8-pin +12V Power connector |
1 x 4-pin +12V Power connector |
Storage related |
4 x M.2 slots (Key M) |
4 x SATA 6Gb/s ports |
USB |
1 x USB 3.2 Gen 2 connector (supports USB Type-C®) |
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports |
2 x USB 2.0 headers support additional 4 USB 2.0 ports |
Miscellaneous |
3 x Addressable Gen 2 headers |
1 x AURA RGB header |
1 x Clear CMOS header |
1 x COM Port header |
1 x Front Panel Audio header (AAFP) |
1 x 20-3 pin System Panel header with Chassis intrude function |
1 x Thunderbolt™ header |
Special Features |
ASUS TUF PROTECTION |
DIGI+ VRM (- Digital power design with DrMOS) |
Enhanced DRAM Overcurrent Protection |
ESD Guards |
TUF LANGuard – |
Overvoltage Protection |
Safeslot |
Stainless-Steel Back I/O |
ASUS Q-Design |
M.2 Q-Latch |
Q-DIMM |
Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) |
Q-Slot |
ASUS Thermal Solution |
M.2 heatsink |
VRM heatsink design |
ASUS EZ DIY |
CPU Socket lever protector |
ProCool |
Pre-mounted I/O shield – |
SafeDIMM |
AURA Sync |
AURA RGB header |
Addressable Gen 2 headers |
Software Features |
ASUS Exclusive Software |
Armoury Crate |
AURA Creator |
AURA Sync |
Fan Xpert 4 – |
Two-Way AI Noise Cancelation |
AI Suite 3 |
Performance And Power Saving Utility |
TurboV EVO |
EPU |
DIGI+ VRM |
TUF GAMING CPU-Z |
DTS Audio Processing |
Norton Anti-virus software (Free Trial version) |
WinRAR |
UEFI BIOS |
ASUS EZ DIY – |
ASUS CrashFree BIOS 3 |
ASUS EZ Flash 3 |
ASUS UEFI BIOS EZ Mode |
BIOS |
192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
Manageability |
WOL by PME, PXE |
Accessories |
Cables |
2 x SATA 6Gb/s cables |
Miscellaneous |
2 x M.2 Rubber Packages |
1 x M.2 SSD screw package |
1 x TUF GAMING sticker |
Installation Media |
1 x Support DVD |
Documentation |
1 x TUF Certification card |
1 x User guide |
Operating System |
Windows® 11 64-bit, Windows® 10 64-bit |
Form Factor |
ATX Form Factor |
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
Warranty |
3 Years |
