ASUS ROG Strix B660-A Gaming WiFi Intel 12th Gen LGA1700 DDR4 ATX motherboard

Availability:

Out of stock


23,190 28,999

Out of stock

Compare

ASUS ROG STRIX B660-A GAMING WIFI INTEL 12TH GEN LGA 1700 DDR4 ATX MOTHERBOARD

ASUS ROG STRIX B660-A WIFI DDR4 Motherboard

  • Intel LGA 1700 socket: ASUS ROG STRIX B660-A WIFI DDR4 Motherboard is Ready for 12th Gen Intel Core, Pentium Gold and Celeron processors
  • Optimal Power Solution: 12+1 power stages with ProCool power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors
  • Optimized Thermal Design: Integrated I/O cover, VRM heatsinks with high conductivity thermal pads, and three onboard M.2 heatsinks
  • High-performance Networking: On-board Intel WIFI 6 (802.11ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard
  • Best Gaming Connectivity: Supports HDMI 2.1 and DisplayPort 1.4 output, three M.2 slots, as well as USB 3.2 Gen 2×2 Type-C
  • Intelligent Control: ASUS-exclusive AI Cooling, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
  • DIY Friendly Design: M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack button and Q-LED
  • Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 headers

ROG Strix B660-A Gaming WiFi D4 features Aura Sync

SKU: STRIXB660A-G-WFD4 Category: Tags: , , , , , , ,
MOTHERBOARD CHIPSET

Motherboard Brand and Chipset

MOTHERBOARD FORM FACTOR

MOTHERBOARD SOCKET

Model
Brand ASUS
Series ROG
Model STRIX B660-A GAMING WIFI D4
Supported CPU
CPU Socket Type LGA 1700
* Designed with dual mounting holes compatible with both Intel LGA1700 and LGA1200 cooling brackets.
CPU Type Supports 12th Gen Intel Core / Pentium Gold / Celeron Processors
* Refer to www.asus.com for CPU support list.
Supported CPU Technologies Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0*
* Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipsets
Chipset Intel B660
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic
Memory
Number of Memory Slots 4x288pin (DDR4)
Memory Standard DDR4 5333(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4000(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133*
* Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported 128GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 5.0 x16 1 x PCI Express 5.0 x16
* Actual support may vary by CPU.
* Please check PCIe bifurcation table in support site.
PCI Express 3.0 x16 1 x PCIe 3.0 x16
* Supports x4 mode.
PCI Express x1 2 x PCIe 3.0 x1
Storage Devices
SATA 6Gb/s 4 x SATA 6Gb/s
M.2 Intel 12th Gen Processors:
M.2_1 slot (Key M), type 2242/2260/2280/22110
– Intel 12th Gen processors support PCIe 4.0 x4 mode.
Intel B660 Chipset:
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
Intel Optane Ready Yes
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
Audio Channels 7.1 Channels
Onboard LAN
LAN Chipset Intel 2.5Gb Ethernet
Max LAN Speed 10/100/1000/2500Mbps
Wireless LAN Wi-Fi 6
802.11 a/b/g/n/ac/ax
Bluetooth Bluetooth 5.2
Rear Panel Ports
Back I/O Ports 1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C)
1 x USB 3.2 Gen 2 port(s) (1 x Type-A)
3 x USB 3.2 Gen 1 port(s) (2 x Type-A + 1 x USB Type-C)
4 x USB 2.0 port(s) (4 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi Module
1 x Intel 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack button
Internal I/O Connectors
Onboard USB 1 x USB 3.2 Gen 2 connector (support USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 10-1pin header + 1 USB 2.0 4pin header support additional 3 USB 2.0 ports
Other Connectors Fan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s)
1 x 4-pin AIO Pump header(s)
3 x 4-pin Chassis Fan header(s)
Power related
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt header
Physical Spec
Form Factor ATX
LED Lighting RGB
Dimensions (W x L) 12.0″ x 9.6″
Power Pin 1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Windows Compatibility
Windows 11 Supported
Features
Features Special Features:
Extreme Engine Digi+
-5K Black Metallic Capacitors
ASUS Q-Design
– M.2 Q-Latch
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink
– VRM heatsink design
ASUS EZ DIY
– BIOS FlashBack button
– BIOS FlashBack LED
– CPU Socket lever protector
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM
AURA Sync
– AURA RGB header(s)
– Addressable Gen 2 header(s)
Software Features:
ROG Exclusive Software
– GameFirst VI
– ROG CPU-Z
– Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
– Sonic Radar III
– DTS Sound Unbound
– Anti-virus software
ASUS Exclusive Software
Armoury Crate
– AIDA64 Extreme (60 days free trial)
– AURA Creator
– AURA Sync
– Fan Xpert 4
– Two-Way AI Noise Cancelation
AI Suite 3
– Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
Turbo app
MyAsus
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
FlexKey
MemTest86
BIOS:
192 Mb Flash ROM, UEFI AMI BIOS
Manageability:
WOL by PME, PXE
Operating System:
Windows 11 64-bit, Windows 10 64-bit
Packaging

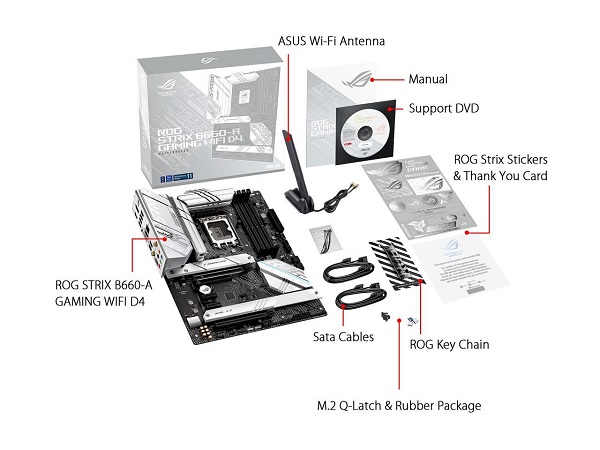

Package Contents Accessories:
Cables
4 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x M.2 Rubber Package(s)
1 x M.2 Q-Latch package(s)
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
Installation Media
1 x Support DVD
Documentation
1 x User guide
