Description

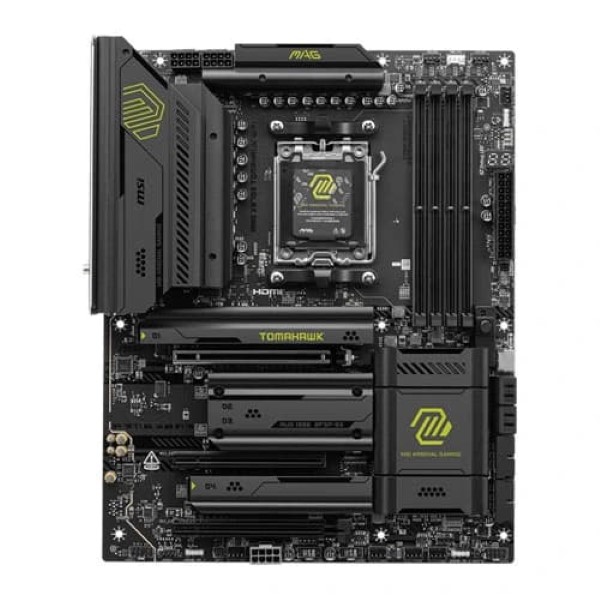

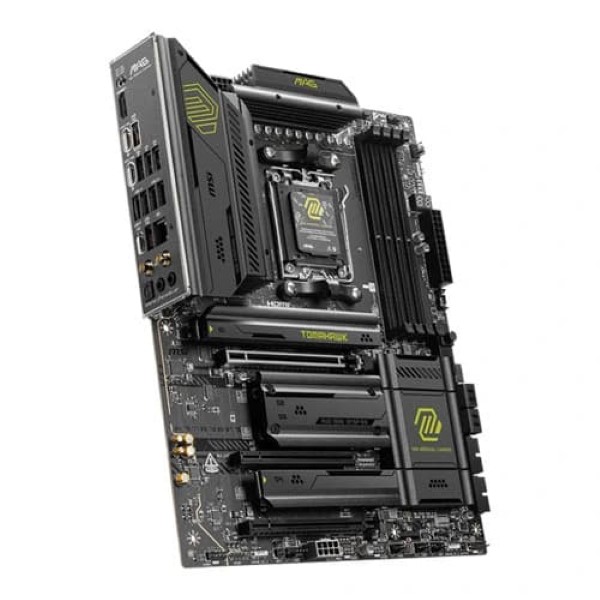

MSI MAG X870E Tomahawk WIFI DDR5 AMD AM5 ATX Gaming Motherboard
Features:
MSI MAG X870E Tomahawk WIFI Gaming Motherboard is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds.
Coming up with true Wi-Fi 7 solution, 5G LAN, USB 40Gbps, PCIe 5.0 solutions, Supplemental PCIe Power, and exclusive EZ DIY features, it’s ready for the battlefield of AMD Ryzen 9000 series processors.
Enlarged Chipset Heatsink
The MSI MAG X870E Tomahawk WIFI enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.
THE NEXT GEN WI-FI SOLUTION – WI-FI 7
Wi-Fi 7 is the latest wireless solution that takes a huge leap forward with multiple improvements to meet the traffic demand brought and the growing number of wireless devices.
EZ PCIe Release
An easy-to-access physical button release mechanism that can help remove any PCIe card with a single tap, making it much easier to upgrade to a new GPU or other compatible device, streamlining the entire process and enhancing user experience.
14+2+1 DRPS Power Design
Unleash and sustain maximum performance with a flagship VRM design built with a total of 14+2+1 digital power phases. Combining dual power connectors and 80A Smart Power Stage, MAG X870E TOMAHAWK WIFI is ready for the challenge of high-end processors
Optimized PCB Solution
The MSI MAG X870E Tomahawk WIFI is PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads
Additional information
| Motherboard brand chipset | |
|---|---|
| MOTHERBOARD CHIPSET | |
| Motherboard form factor | |
| Motherboard socket |
Brand
MSI
Specification
| Platform | AMD |
| Socket | AM5 |
| Cpu Type | Ryzen 9000,Ryzen 8000,Ryzen 7000 |
| Chipset | X870 |
| Memory Speed | up to 8400+ |
| Max Memory Support | 256 GB |
| Supported Memory Type | DDR5 |
| Memory Feature | Supports AMD POR Speed and JEDEC Speed |
| Supports Memory Overclocking and AMD EXPO™ | |
| Supports Dual-Channel mode | |
| Supports Non-ECC, Un-buffered memory | |
| Supports CUDIMM, Clock Driver bypass mode only* | |
| * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. | |
| • The DIMM slots on this motherboard have double-sided latches. | |
| • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit Brand Website. | |
| Graphics Port | 1x HDMI,2x Type-C DisplayPort |
| Expansion Slots | 3x PCI-E x16 slot |
| PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) | |
| PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) | |
| PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) | |
| PCI_E1 slot | |
| • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) | |
| • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) | |
| • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) | |
| Wireless Networking | WiFi 7,Bluetooth 5.4 |

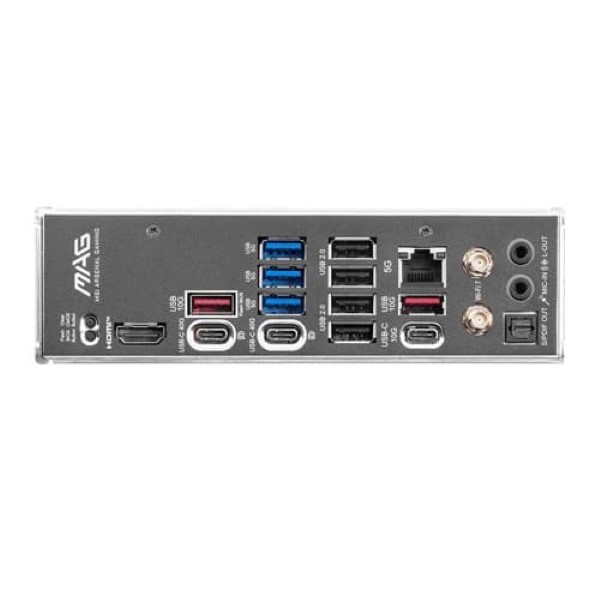

| Back Panel I/O Ports | Clear CMOS Button |
| USB 10Gbps Type-A | |
| USB 5Gbps Type-A | |
| USB 2.0 | |
| 5G LAN | |
| Wi-Fi / Bluetooth | |
| Audio connectors | |
| Flash BIOS Button | |
| HDMI™ | |
| USB 40Gbps Type-C | |
| USB 10Gbps Type-C | |
| USB 10Gbps Type-A | |
| Internal I/O Connector | 1x Power Connector(ATX_PWR) |
| 2x Power Connector(CPU_PWR) | |
| 1x Power Connector(PCIE_PWR 8pin) | |
| 1x CPU Fan | |
| 1x Combo Fan (Pump_Sys Fan) | |
| 6x System Fan | |
| 1x EZ Conn-header (JAF_2) | |
| 2x Front Panel (JFP) | |
| 1x Chassis Intrusion (JCI) | |
| 1x Front Audio (JAUD) | |
| 3x Addressable V2 RGB LED connector (JARGB_V2) | |
| 1x RGB LED connector(JRGB) | |
| 1x TPM pin header(Support TPM 2.0) | |
| 4x USB 2.0 ports | |
| 4x USB 5Gbps Type A ports | |
| 1x USB 20Gbps Type C ports | |
| Form Factor | ATX |
| Warranty | 3 Years |
| Note | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only. |
