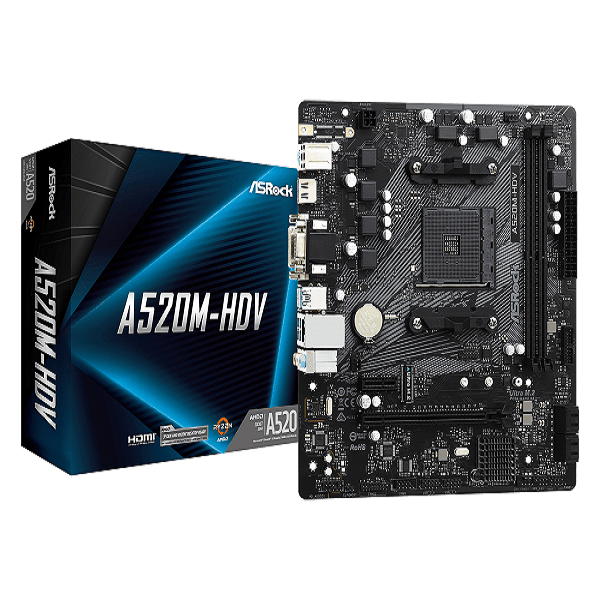

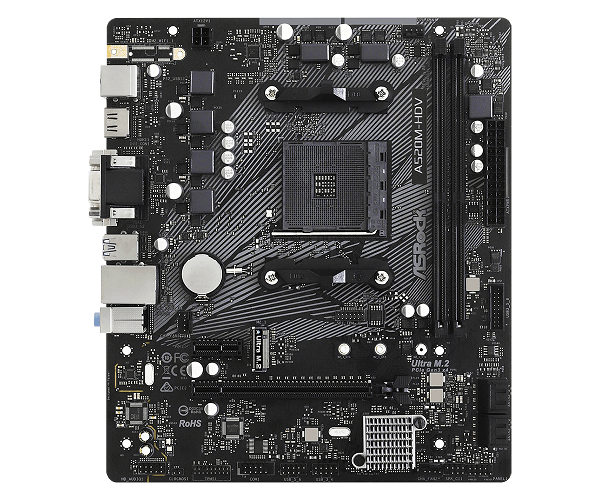

ASROCK A520M HDV MOTHERBOARD

Availability:

Out of stock


  • Supports AMD AM4 Socket Ryzen™ 3000, 4000 G-Series and 5000 Series Desktop Processors*
  • 6 Phase Power Design
  • Supports DDR4 4733+ (OC)
  • 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
  • Graphics Output Options: D-Sub, DVI-D, HDMI
  • 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
  • 4 x SATA3, 1 x Ultra M.2(Gen3 x4 & SATA3)
  • 6 x USB 3.2 Gen1(4 x Rear, 2 x Front)
    6 x USB 2.0(2 x Rear, 4 x Front)
  • Realtek Gigabit LAN

5,479 6,099

Out of stock

Compare

ASROCK A520M HDV MOTHERBOARD

A520 MOTHERBOARD FOR EVERYONE

All Essentials You Need For Computing

Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)

The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.

AMD SMART ACCESS MEMORY

Conventional PC systems processor can only access a fraction of graphics memory and limits system performance. With AMD Smart Access Memory, the data channel gets expanded to harness the full potential of GPU memory, removes the bottleneck and increase performance.

HDMI 4k @60Hz

Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.

3 Graphics Outputs

Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.

Premium 50A Power Choke

Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

High Density Glass Fabric PCB

High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

Sapphire Black PCB

Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

Live Update & APP Shop

ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

SKU: A520M-HDV Categories: , ,
MOTHERBOARD CHIPSET

Motherboard Brand and Chipset

MOTHERBOARD FORM FACTOR

MOTHERBOARD SOCKET

  • Unique Feature
    ASRock Super Alloy
    – Premium 50A Power Choke
    – Sapphire Black PCB
    – High Density Glass Fabric PCB
    ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
    ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
    ASRock Live Update & APP Shop
  • CPU
    – Supports AMD AM4 Socket Ryzen™ 3000, 4000 G-Series and 5000 Series Desktop Processors*
    – 6 Power Phase design

    *Not compatible with AMD Ryzen™ 5 3400G and Ryzen™ 3 3200G.
  • Chipset
    – AMD A520
  • Memory
    – Dual Channel DDR4 Memory Technology
    – 2 x DDR4 DIMM Slots
    – AMD Ryzen series CPUs (Vermeer) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
    – AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
    – AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
    – Max. capacity of system memory: 64GB**
    – Supports Extreme Memory Profile (XMP) memory modules
    – 15μ Gold Contact in DIMM Slots

    *For Ryzen Series APUs (Renoir), ECC is only supported with PRO CPUs.
    Please refer to below table for AMD non-XMP memory frequency support. For more details.Ryzen Series CPUs (Vermeer):

    Ryzen Series CPUs (Matisse):

    Ryzen Series CPUs:

    SR: Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label
    DR: Dual rank DIMM, 2Rx4 or 2Rx8 on DIMM module label

    **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

  • BIOS
    – 128Mb AMI UEFI Legal BIOS with GUI support
    – Supports “Plug and Play”
    – ACPI 5.1 compliance wake up events
    – Supports jumperfree
    – SMBIOS 2.3 support
    – CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment
  • Graphics
    – Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
    – DirectX 12, Pixel Shader 5.0
    – Shared memory default 2GB. Max Shared memory supports up to 16GB.**
    – Three graphics output options: D-Sub, DVI-D and HDMI
    – Supports Triple Monitor
    – Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz
    – Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz
    – Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
    – Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
    – Supports HDR (High Dynamic Range) with HDMI 2.1
    – Supports HDCP 2.3 with DVI-D and HDMI 2.1 Ports
    – Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port
    – Supports Microsoft® PlayReady

    *Actual support may vary by CPU

    **The Max shared memory 16GB requires 32GB system memory installed.

  • Audio
    – 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
    – Supports Surge Protection
  • LAN
    – PCIE x1 Gigabit LAN 10/100/1000 Mb/s
    – Realtek RTL8111H
    – Supports Wake-On-LAN
    – Supports Lightning/ESD Protection
    – Supports Energy Efficient Ethernet 802.3az
    – Supports PXE
  • Slots
    – 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
    – 1 x PCI Express 3.0 x1 Slot

    *Supports NVMe SSD as boot disks
  • Storage
    – 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
    – 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*

    *Supports NVMe SSD as boot disks
    Supports ASRock U.2 Kit
  • Connector
    – 1 x SPI TPM Header
    – 1 x COM Port Header
    – 1 x Chassis Intrusion and Speaker Header
    – 1 x CPU Fan Connector (4-pin)*
    – 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)**
    – 1 x 24 pin ATX Power Connector
    – 1 x 4 pin 12V Power Connector
    – 1 x Front Panel Audio Connector
    – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
    – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

    *The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

    **The Chassis Fan supports the water cooler fan of maximum 1A (12W) fan power.
    CHA_FAN2 can auto detect if 3-pin or 4-pin fan is in use.

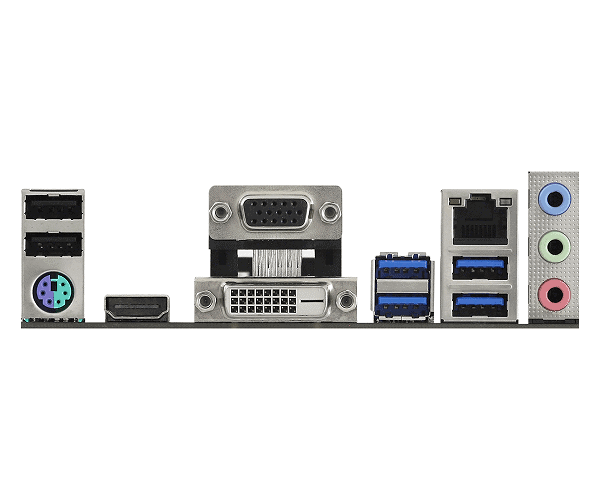

  • Rear Panel I/O
    – 1 x PS/2 Mouse/Keyboard Port
    – 1 x D-Sub Port
    – 1 x DVI-D Port
    – 1 x HDMI Port
    – 2 x USB 2.0 Ports (Supports ESD Protection)
    – 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
    – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    – HD Audio Jacks: Line in / Front Speaker / Microphone
  • Software and UEFI
    Software
    – ASRock Motherboard Utility (A-Tuning)
    – ASRock XFast LAN
    UEFI
    – ASRock Full HD UEFI
    – ASRock Instant Flash

    *These utilities can be downloaded from ASRock Live Update & APP Shop.
  • Support CD
    – Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
  • Accessories
    – Quick Installation Guide, Support CD, I/O Shield
    – 2 x SATA Data Cables
    – 1 x Screw for M.2 Socket
  • Hardware Monitor
    – Temperature Sensing: CPU, Chassis Fans
    – Fan Tachometer: CPU, Chassis Fans
    – Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis Fans
    – Fan Multi-Speed Control: CPU, Chassis Fans
    – CASE OPEN detection
    – Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
  • Form Factor
    – Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm
    – Solid Capacitor design
  • OS
    – Microsoft® Windows® 10 64-bit
  • Certifications
    – FCC, CE
    – ErP/EuP ready (ErP/EuP ready power supply is required)
