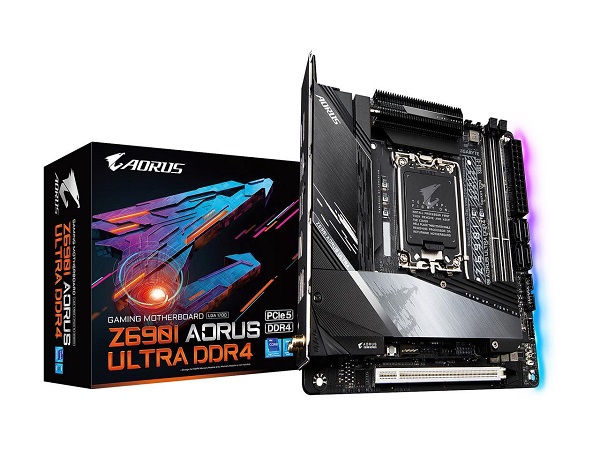

Gigabyte Z690 I Aorus Ultra DDR4 Intel 12th Gen LGA1700 Mini-ITX Motherboard

Availability:

Out of stock


  • Supports 12th Gen Intel® Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • Intel® Optane™ Memory Ready
  • Direct 10+2+1 Phases Digital VRM Solution with 105A Power Stage*
  • Advanced Thermal Design with Fins-Array II, Thermal Guard III and Heatpipe
  • Blazing Fast Intel® 2.5GbE LAN with cFosSpeed
  • Intel® WIFI 6 802.11ax 2T2R & BT5 with AORUS Antenna
  • AMP-UP Audio with ALC4080 and WIMA for Rear 120dB SNRHDMI 2.0 supports Premium 4K
  • Dual Ultra-Fast NVMe PCIe 4.0* x4 M.2 with Thermal Guard III
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strip
  • Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

32,790 52,000

Out of stock

Compare

GIGABYTE Z690I AORUS ULTRA DDR4 INTEL 12TH GEN LGA1700 MINI-ITX MOTHERBOARD

GIGABYTE Z690I A ULTRA DDR4 UNPARALLELED PERFORMANCE

  • With technology moving so fast, GIGABYTE still keep up with the latest trends and provide our customers with advanced features and latest technology. GIGABYTE Z690I A ULTRA DDR4 Series motherboards come with upgraded power solution, latest storage standards and outstanding connectivity to enable optimize performance for gaming.

ADVANCED THERMAL SOLUTION

  • GIGABYTE Z690I A ULTRA DDR4 Series Motherboards’ Un-throttled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming.

NEXT GENERATION CONNECTIVITY

  • GIGABYTE Z690I A ULTRA DDR4 Series Motherboards let you experience ultimate connection flexibility and blazing data-transfer speed with next generation network, storage, and WIFI connectivity.

DEFINITIVE AESTHETICS

  • GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.

ULTRA DURABLE

  • GIGABYTE Ultra Durable™ features its product durability and high-quality manufacturing process. GIGABYTE Z690I A ULTRA DDR4 motherboards use the best components and reinforce every slots to make each of them solid and durable.
MOTHERBOARD CHIPSET

Motherboard Brand and Chipset

MOTHERBOARD FORM FACTOR

MOTHERBOARD SOCKET

Model
Brand GIGABYTE
Series AORUS
Model Z690I AORUS ULTRA DDR4
Supported CPU
CPU Socket Type LGA 1700
* Dedicated LGA1700 mounting bracket is required.
CPU Type Supports 12th Gen Intel Core / Pentium Gold / Celeron Processors
Chipsets
Chipset Intel Z690
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic
Memory
Number of Memory Slots 2×288pin
Memory Standard DDR4 5333(OC) / DDR4 5133(OC)/DDR4 5000(OC) / 4933(OC) / 4800(OC) / 4700(OC) / 4600(OC) / 4500(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3666(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3300(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133
Maximum Memory Supported 64GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 5.0 x16 1 x PCI Express 5.0 x16
Storage Devices
SATA 6Gb/s 4 x SATA 6Gb/s
M.2 CPU:
1 x M.2 connector on the back of the GC-Z690I BTB PLUG (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector on the front of GC-Z690I BTB PLUG (Socket 3, M key, type 2242/2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
Intel Optane Ready Yes
* System acceleration with Intel Optane Memory can only be enabled on the M.2 connectors supported by the Chipset.
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset Realtek ALC4080
Audio Channels 2 Channels
Onboard LAN
LAN Chipset Intel 2.5GbE LAN chip
Max LAN Speed 10/100/1000/2500Mbps
Wireless LAN Intel Wi-Fi 6 AX201
WIFI a/b/g/n/ac/ax
Bluetooth Bluetooth 5.2

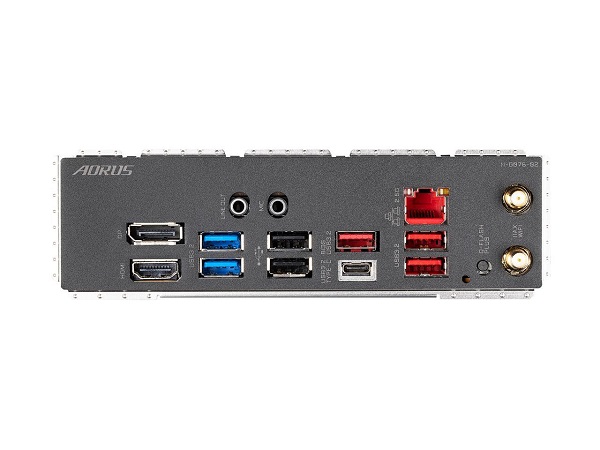

Rear Panel Ports
Back I/O Ports 2 x SMA antenna connectors (2T2R)
1 x DisplayPort
1 x HDMI port
1 x USB Type-C port, with USB 3.2 Gen 2×2 support
3 x USB 3.2 Gen 2 Type-A ports (red)
2 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x Q-Flash Plus button
1 x RJ-45 port
2 x audio jacks
Internal I/O Connectors
Onboard USB 1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
Other Connectors 1 x external power connector**
1 x CPU fan header
1 x water cooling CPU fan header
2 x system fan headers(SYS_FAN1/SYS_FAN2**)
1 x addressable LED strip header**
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x reset button**
1 x reset jumper
1 x Clear CMOS jumper
* All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
** The connector is on the front of GC-Z690I BTB PLUG.
Physical Spec
Form Factor Mini ITX
LED Lighting RGB
Dimensions (W x L) 6.7″ x 6.7″
Power Pin 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Windows Compatibility
Windows 11 Supported
Features
Features I/O Controller:
iTE I/O Controller Chip
H/W Monitoring:
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS:
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features:
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Bundled Software:
Norton Internet Security (OEM version)
cFosSpeed
Operating System:
Support for Windows 10 64-bit
