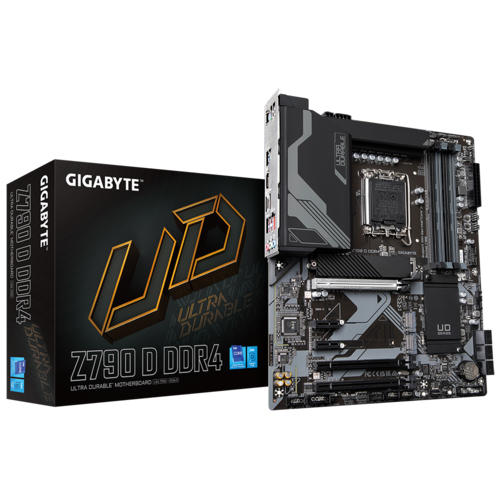

GIGABYTE Z790 D DDR4 INTEL 13TH & 12TH GEN LGA 1700 ATX MOTHERBOARD
GIGABYTE Z790 D DDR4 Motherboard
Intel® Socket LGA 1700:GIGABYTE Z790 D DDR4 Motherboard Supports 13th and 12th Gen Series Processors
Unparalleled Performance:Twin 16*+1+1 Phases Digital VRM Solution
Dual Channel DDR4:4*SMD DIMMs with XMP 3.0 Memory Module Support
Next Generation Storage:3*PCIe 4.0 x4 M.2 Connectors
Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
EZ-Latch Plus:PCIe 5.0 x16 Slot with Quick Release & Screwless Design
Fast Networks:2.5GbE LAN
Extended Connectivity:HDMI, Front USB-C® 5Gb/s, Rear USB-C® 20Gb/s
Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
MOTHERBOARD CHIPSET | |
---|---|
Motherboard Brand and Chipset | |
MOTHERBOARD FORM FACTOR | |
MOTHERBOARD SOCKET |
CPU | LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors |
L3 cache varies with CPU | |
Chipset | Intel® Z790 Express Chipset |
Memory | Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules |
4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory | |
Dual channel memory architecture | |
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
Support for Extreme Memory Profile (XMP) memory modules | |
Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support: |
1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz | |
* Support for HDMI 2.0 version and HDCP 2.3. | |
1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz | |
* Support for DisplayPort 1.2 version and HDCP 2.3 | |
Audio | Realtek® Audio CODEC |
High Definition Audio | |
2/4/5.1/7.1-channel | |
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. | |
Support for S/PDIF Out | |
LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
Expansion Slots | CPU: |
1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) | |
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. | |
Chipset: | |
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) | |
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4) | |
2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3) | |
Support for AMD CrossFireâ„¢ technology (PCIEX16 and PCIEX4) | |
Storage Interface | CPU: |
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) | |
Chipset: | |
2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB) | |
6 x SATA 6Gb/s connectors | |
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices | |
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices | |
USB | Chipset: |
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support | |
1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header | |
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel | |
6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) | |
Chipset+1 USB 2.0 Hub: | |
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) | |
Internal I/O Connectors | 1 x 24-pin ATX main power connector |
1 x 8-pin ATX 12V power connector | |
1 x 4-pin ATX 12V power connector | |
1 x CPU fan header | |
1 x water cooling CPU fan header | |
3 x system fan headers | |
1 x system fan/water cooling pump header | |
2 x addressable LED strip headers | |
2 x RGB LED strip headers | |
3 x M.2 Socket 3 connectors | |
6 x SATA 6Gb/s connectors | |
1 x front panel header | |
1 x front panel audio header | |
1 x S/PDIF Out header | |
1 x USB Type-C® header, with USB 3.2 Gen 1 support | |
1 x USB 3.2 Gen 1 header | |
2 x USB 2.0/1.1 headers | |
1 x serial port header | |
2 x Thunderboltâ„¢ add-in card connectors | |
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
1 x reset button | |
1 x Q-Flash Plus button | |
1 x reset jumper | |
1 x Clear CMOS jumper | |
Back Panel Connector | 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support |
1 x USB 3.2 Gen 2 Type-A port (red) | |
4 x USB 3.2 Gen 1 ports | |
2 x USB 2.0/1.1 ports | |
1 x HDMI 2.0 port | |
1 x RJ-45 port | |
3 x audio jacks | |
I/O Controller | iTE® I/O Controller Chip |
H/W Monitoring | Voltage detection |
Temperature detection | |
Fan speed detection | |
Water cooling flow rate detection | |
Fan fail warning | |
Fan speed control | |
BIOS | 1 x 256 Mbit flash |
Use of licensed AMI UEFI BIOS | |
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
Unique Features | Support for GIGABYTE Control Center (GCC) |
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. | |
Support for Q-Flash | |
Support for Q-Flash Plus | |
Support for Smart Backup | |
Bundled Software | Norton® Internet Security (OEM version) |
LAN bandwidth management software | |
Operating System | Support for Windows 11 64-bit |
Support for Windows 10 64-bit | |
Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
Warranty | 3 Years |
