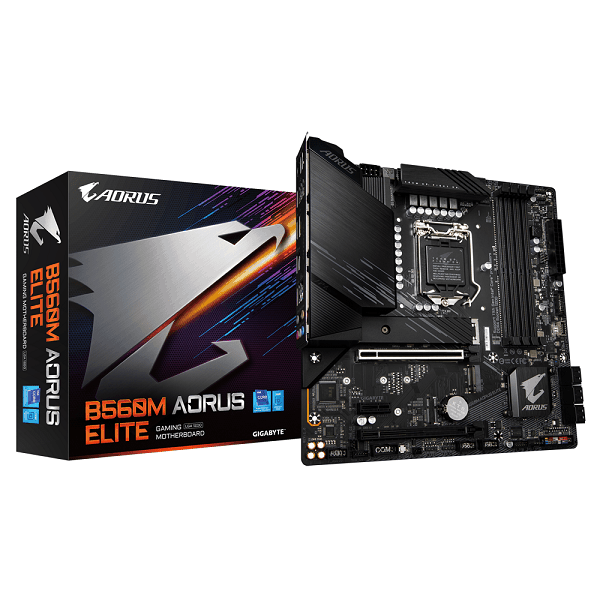

GIGABYTE B560M AORUS ELITE MOTHERBOARD
Free Shipping
GIGABYTE B560M AORUS ELITE MOTHERBOARD
, ,

GIGABYTE B560M AORUS ELITE MOTHERBOARD

Availability:

Out of stock
Add to wishlist
Compare
  • Supports 11th and 10th Gen Intel® Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Direct 12+1 Phases Digital VRM with Low RDS(on) MOSFETs
  • Shielded Memory Routing for Better Memory Overclocking
  • Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
  • Fast 2.5GbE LAN with Bandwidth Management
  • Dual Ultra-Fast NVMe PCIe 4.0*/3.0 x4 M.2 with Thermal Guard
  • Rear USB 3.2 Gen2 Type-C® and Front USB3.2 Gen1 Type-C® for Connecting Devices
  • Pre-installed IO Shield for Easy and Quick Installation
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

₹12,890 ₹18,900

Out of stock

Compare

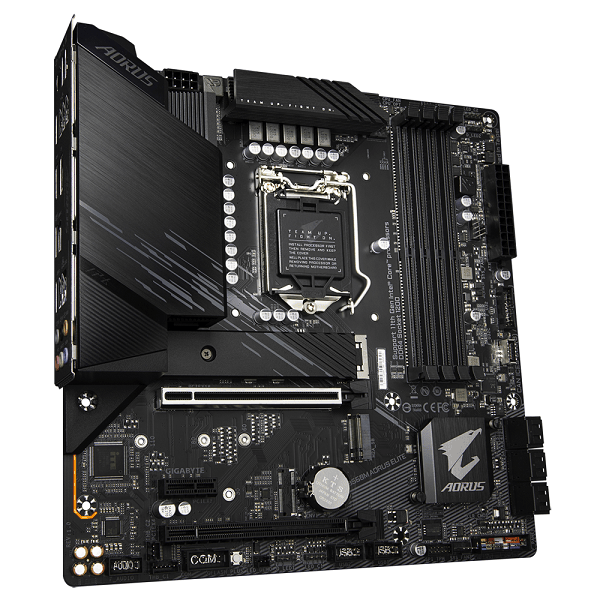

GIGABYTE B560M AORUS ELITE MOTHERBOARD

ADVANCED THERMAL SOLUTION

B560M AORUS uses high performance Fully Covered thermal design with high coverage MOSFET Heatsinks and thick thermal pad, providing ultimate MOSFET cooling performance for enthusiasts, overclockers and gamers.

PERFORMANCE

With the best quality components and GIGABYTE R&D design capability, the B560M AORUS is a true beast among motherboards.

DEFINITIVE AESTHETICS

B560M AORUS ELITE features RGB FUSION 2.0 and offers users the option to control onboard, external light strips, and/or AORUS devices with RGB/ Addressable RGB LEDs to make their PC more unique and stylish.

ULTRA DURABLE

GIGABYTE is reputable for its product durability and high quality manufacturing process. Needless to say, we use the best components we can find for the B560M AORUS motherboard and reinforce every slot to make each of them solid and durable.

GIGABYTE BIOS & APP CENTER

Good software goes hand in hand with perfect hardware. GIGABYTE motherboard bundled several useful and intuitive software to help users to control every aspect of motherboard.

SKU: B560M AORUS ELITE Categories: , ,
MOTHERBOARD CHIPSET

MOTHERBOARD FORM FACTOR

MOTHERBOARD SOCKET

  • CPU

    LGA1200 package:

    1. 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
    2. 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors*
      * Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.
    3. L3 cache varies with CPU

    (Please refer to “CPU Support List” for more information.)

  • Chipset
    1. Intel® B560 Express Chipset
  • Memory
    1. 11th Generation Intel® Core™ i9/i7/i5 processors:
      Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
    2. 10th Generation Intel® Core™ i9/i7 processors:
      Support for DDR4 2933/2666/2400/2133 MHz memory modules
    3. 10th Generation Intel® Core™ i5/i3 /Pentium®/Celeron® processors:
      Support for DDR4 2666/2400/2133 MHz memory modules
    4. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    5. Dual channel memory architecture
    6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    8. Support for Extreme Memory Profile (XMP) memory modules

    (Please refer “Memory Support List” for more information.)

  • Onboard Graphics

    Integrated Graphics Processor-Intel® HD Graphics support:

    1. 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
      * Support for HDMI 1.4 version and HDCP 2.3.
    2. 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
      * Support for DisplayPort 1.2 version, HDCP 2.3

    (Graphics specifications may vary depending on CPU support.)

  • Audio
    1. Realtek® Audio codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
  • LAN
    1. Realtek®2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
  • Expansion Slots
        1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
          * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

      (The PCIEX16 slot conforms to PCI Express 4.0 standard.)*

      1. *Supported by 11th Generation processors only.
    1. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
    2. 1 x PCI Express x1 slot
      (The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)
  • Multi-Graphics Technology
    1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
  • Storage Interface

    CPU:

    1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)*
      * Supported by 11th Generation processors only.

    Chipset:

    1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)

    6 x SATA 6Gb/s connectors
    * Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
    Intel® Optane™ Memory Ready

  • USB

    Chipset:

    1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen2 support
    2. 1 x USB 3.2 Gen2 Type-A ports (red) on the back panel
    3. 3 x USB 3.2 Gen1 ports (2 ports on the back panel, 1 port available through the internal USB header)
    4. 2 x USB 2.0/1.1 ports on the back panel

    Chipset+USB 3.2 Gen 1 Hub:

    1. 1 x USB Type-C® port with USB 3.2 Gen1 support, available through the internal USB header
    2. 2 x USB 3.2 Gen1 ports available through the internal USB header

    Chipset+ 2 USB 2.0 Hubs:

    1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 1 x water cooling CPU fan header
    5. 3 x system fan headers
    6. 2 x addressable LED strip headers
    7. 2 x RGB LED strip headers
    8. 6 x SATA 6Gb/s connectors
    9. 2 x M.2 Socket 3 connectors
    10. 1 x front panel header
    11. 1 x front panel audio header
    12. 1 x USB Type-C® header, with USB 3.2 Gen 1 support
    13. 1 x USB 3.2 Gen 1 header
    14. 2 x USB 2.0/1.1 headers
    15. 2 x Thunderbolt™ add-in card connectors
    16. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    17. 1 x serial port header
    18. 1 x Clear CMOS jumper
    19. 1 x Q-Flash Plus button

    ＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

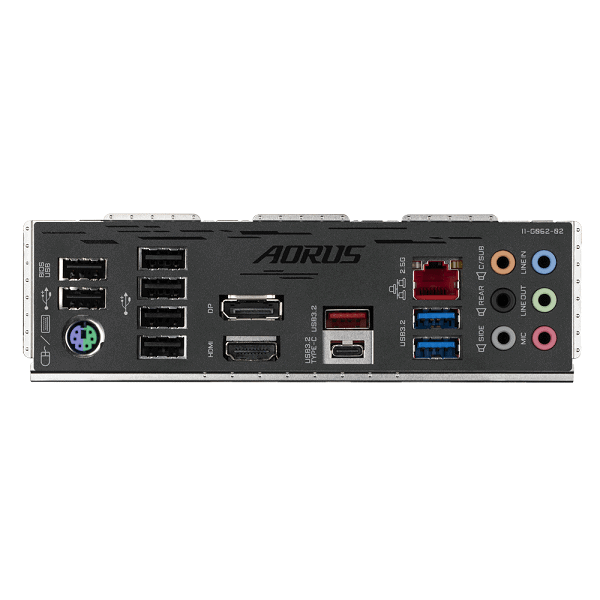

  • Back Panel Connectors
    1. 1 x PS/2 keyboard/mouse port
    2. 1 x USB Type-C® port, with USB 3.2 Gen2 support
    3. 1 x USB 3.2 Gen2 Type-A port (red)
    4. 2 x USB 3.2 Gen1 ports
    5. 6 x USB 2.0/1.1 ports
    6. 1 x DisplayPort
    7. 1 x HDMI port
    8. 1 x RJ-45 port
    9. 6 x audio jacks
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Water cooling flow rate detection
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS
    1. 1 x 256 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      @BIOS
      EasyTune
      Fast Boot
      Game Boost
      ON/OFF Charge
      RGB Fusion
      Smart Backup
      System Information Viewer
    2. Support for Q-Flash Plus
    3. Support for Q-Flash
    4. Support for Xpress Install
  • Bundled Software
    1. Norton® Internet Security (OEM version)
    2. Realtek® 8125 Gaming LAN Bandwidth Control Utility
  • Operating System
    1. Support for Windows 10 64-bit
  • Form Factor
    1. Micro ATX Form Factor; 24.4cm x 24.4cm
