Thermaltake Divider 500TG Air Tempered Glass Mid Tower Cabinet(CA-1T4-00M1WN-02)

Availability:

Out of stock


The Divider 500 TG Air is an ATX mid-tower case that comes with one 120mm standard front fan, one 120mm standard rear fan, two airflow-optimized mesh panels at the front and top, two durable 3mm tempered glass windows on the left and right sides. Additionally, the case comes with two symmetrical triangular panels one in tempered glass and the other in steel which are available for more options.

22,490

Out of stock

Compare

THERMALTAKE DIVIDER 500TG AIR TEMPERED GLASS MID TOWER CABINET(CA-1T4-00M1WN-02)

Divider 500 TG Air ATX Mid Tower Chassis

  • Thermaltake designed a brand-new case series that contains a mixture of open frame styled elements and customizable options blending all the functionalities into the Divider Series.

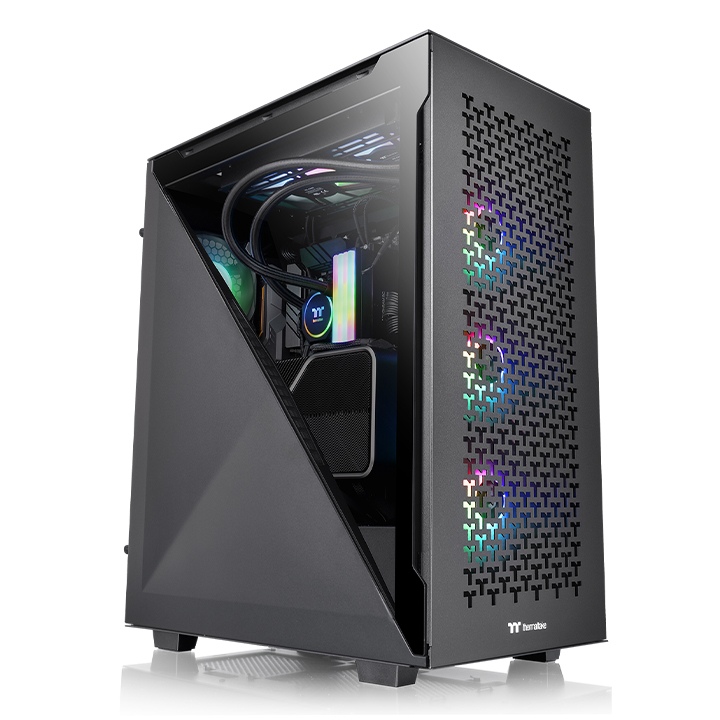

  • The most exceptional feature of the THERMALTAKE DIVIDER 500 TG Air Mid Tower Case is the two symmetrical triangular pieces comprised of a steel panel and tempered glass window on the left and right sides. These panels are tool-free and easy to remove, offering a clear view of the components inside.
  • Extra two symmetrical triangular options of tempered glass and steel panel enriches the appearance of the case when building the system. Additionally, the air edition comes with two airflow-optimized mesh panels at the front and top for massive airflow.
  • The THERMALTAKE DIVIDER 500 TG Air Mid Tower Case is the next-gen gaming PC case for regular users, enthusiasts, and gamers, giving them unprecedented satisfaction.

Avant-Grade Style Side Panels – Left Side

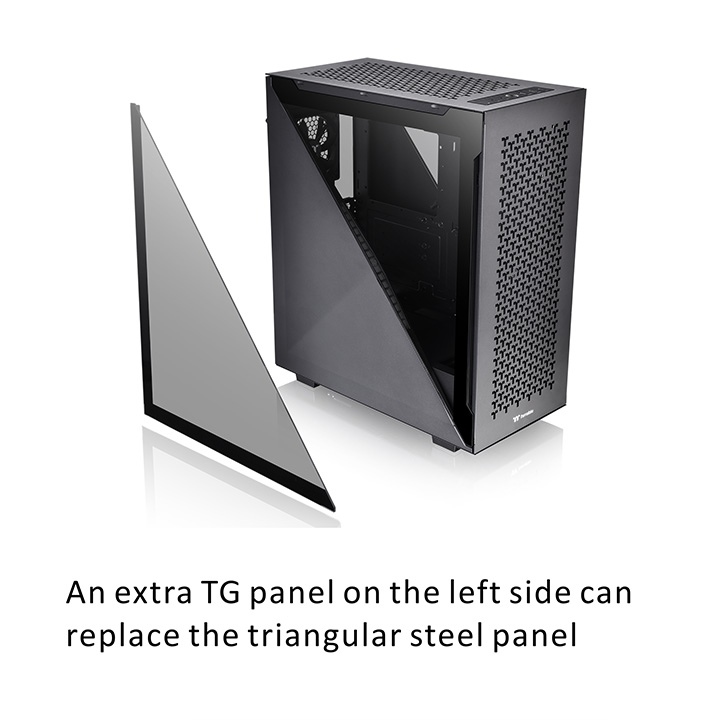

  • The exceptional feature of the THERMALTAKE DIVIDER 500 TG Air is that the four symmetrical triangular pieces are mixed and matched. We provide an extra triangular tempered glass window on the left side which enriches the appearance of the case when building the system.
  • For example, users can can stick to the default form or have two triangular tempered glass windows on the left side, creating various viewing flavors.

Cooling component options on the motherboard side

  • Fans, radiators, and Thermaltake Pacific DP100-D5 Plus Distro-Plate with Pump Combo.

Avant-Grade Style Side Panels – Right Side

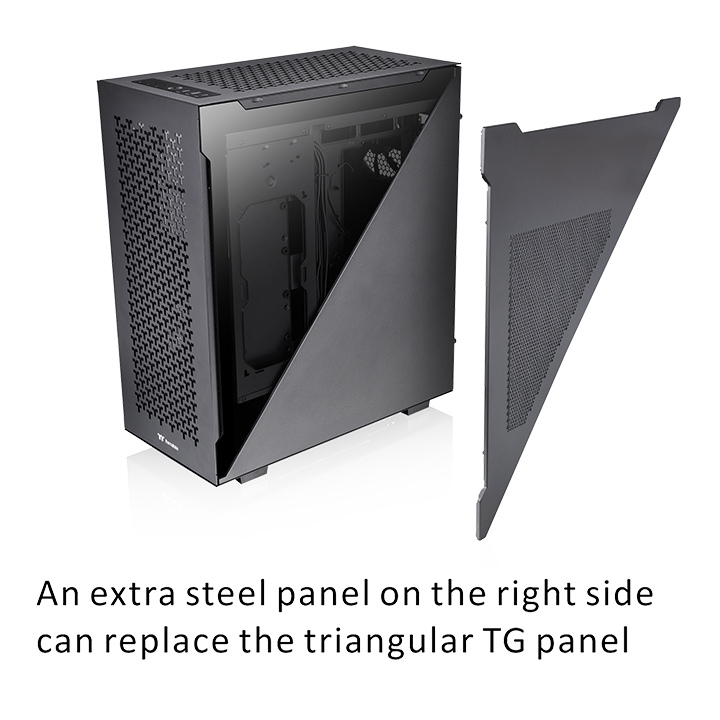

  • The extra triangular mesh panel on the right side enriches the appearance of the case as well as when building in the case. For example, users can stick to the default form or have two steel panels on the right side when installing fans on the motherboard side for air intake or exhaust depending on the PC layout.

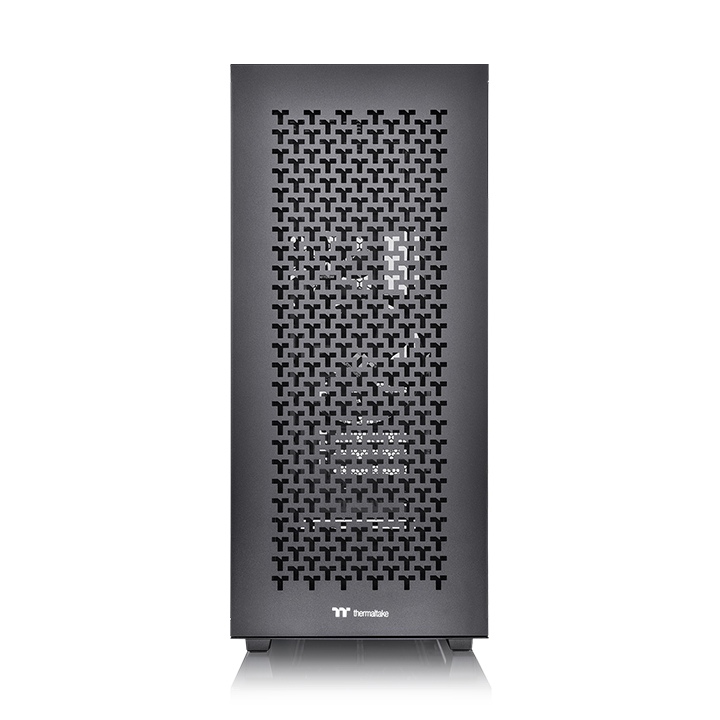

Airflow-Optimized Panels

  • The THERMALTAKE DIVIDER 500 TG Air comes with two large airflow-optimized mesh panels at the front and top for massive airflow performance.

PSU Cover & Riser GPU Support Bracket

  • The built-in PSU cover is designed to hide unsightly cables with overall good ventilation. Riser cable bracket not only enables vertical GPU installation, but also helps reduce the weight on the PCI-E slots.

Display It Your Way

  • Patented rotational PCI-E slots give you the option to display your graphics card either horizontally or vertically, creating plenty of flexible space for your system.

Excellent Dust Filtration

  • The THERMALTAKE DIVIDER 500 TG Air has well-designed dust filtration. All removable filters on inner right side, at the font, top, and base provide excellent dust protection and dirt reduction, ensuring a dust-free environment.

Air Intake and Exhaust

  • The cooling performance of the THERMALTAKE DIVIDER 500 TG Air is superb. Two large mesh panels at the front and top enable massive airflow.
  • Moreover, the gap between two triangular pieces of tempered glass and steel panels on the left side allow optimal air intake. Cooling exhausts could be located on the right side of the steel panel (two steel panels), rear, and top of case depending on user’s overall PC layout design.
  • The additional triangular tempered glass and steel panels not only enrich the build appearance but allow more flexible system cooling.

Idle and Full-load Temperature

  • To let our customers better understand the thermal performance of the THERMALTAKE DIVIDER 500 TG Air ATX Mid Tower Case, we ran a test system at idle and full-load. We used AIDA64 Extreme Portable and FurMark ASUS ROG Edition both running at the same time for 30 minutes, and the thermal images were taken with Testo 885-2 Thermal Imaging Camera.

Excellent Hardware Support & Cooling Solution

  • The THERMALTAKE DIVIDER 500 TG Air has excellent hardware expansion. It can support a CPU cooler with a maximum height of 170mm (two TG), VGA with maximum length of 390mm (without radiator), a power supply with a length of up to 220mm (without HDD Cage), total of two 3.5” HDDs and five 2.5” SSDs or a total of seven 2.5” SSDs.
  • When it comes to the cooling solution, the Divider 500 TG Air comes preinstalled with one 120mm standard front fan for cold air intake and one 120mm standard rear for hot air extraction.
  • The case can hold up to two 140mm fans at the top and two 120mm fans on the right of the motherboard side. Moreover, the THERMALTAKE DIVIDER 500 TG Air is optimized for air cooling and advanced AIO liquid cooling components. It can support AIO 360mm at the front, 240mm on the top and on motherboard side, and a 120mm at the rear.

Handy I/O Ports

  • Two 3.0 USB and one USB 3.2 (Gen 2) Type C ports are placed on the top panel to grant direct access when needed.

DMD: Dismantlable Modular Design

  • Strip your case down to the bones and install elements when and as you need them with our modular design. The THERMALTAKE DIVIDER 500 TG ARGB features modular panels, racks, brackets, and pre-designed mounting arrays. No more unreachable screw corners or gaps, installation can be a breeze with our Dismantlable Modular Design.
Cabinet Colour

Cabinet Size

P/N CA-1T4-00M1WN-02
SERIES Divider
MODEL Divider 500 TG Air
CASE TYPE Mid Tower
DIMENSION (H X W X D) 530 x 230 x 466 mm
(20.9 x 9.1 x 18.3 inch)
NET WEIGHT 10.29 kg / 22.69 lbs.
SIDE PANEL 3mm Tempered Glass x 2
COLOR Black
MATERIAL SPCC
COOLING SYSTEM Front(intake):
120 x 120 x 25 mm fan (1200rpm, 22 dBA) x 1
Rear(exhaust):
120 x 120 x 25 mm fan (1200rpm, 22 dBA) x 1
DRIVE BAYS 2 x 3.5”, 5 x 2.5”
ACCESSIBLE or 7 x 2.5”
HIDDEN
EXPANSION SLOTS 7 (Rotatable Patented Design)
MOTHERBOARDS 6.7″ x 6.7″ (Mini ITX), 9.6″ x 9.6″ (Micro ATX), 12″ x 9.6″ (ATX)
I/O PORT USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
PSU Standard PS2 PSU (optional)
FAN SUPPORT Front:
3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm, 2 x 140mm, 1 x 140mm
Top:
2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm
Right (M/B Side):
2 x 120mm, 1 x 120mm
Rear:
1 x 120mm
RADIATOR SUPPORT Front:
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm
Top:
1 x 280mm, 1 x 140mm
1 x 240mm, 1 x 120mm
Right (M/B Side):
1 x 240mm (vertical-installed GPU recommended),
1 x 120mm
Rear:
1 x 120mm
CLEARANCE CPU cooler max height:
155mm (with one TG and one steel side panel)
170mm (with two TG)
VGA max length:
360mm (with radiator)
390mm (without radiator)
PSU max length:
180mm (with HDD Cage)
220mm (without HDD Cage)
