Description

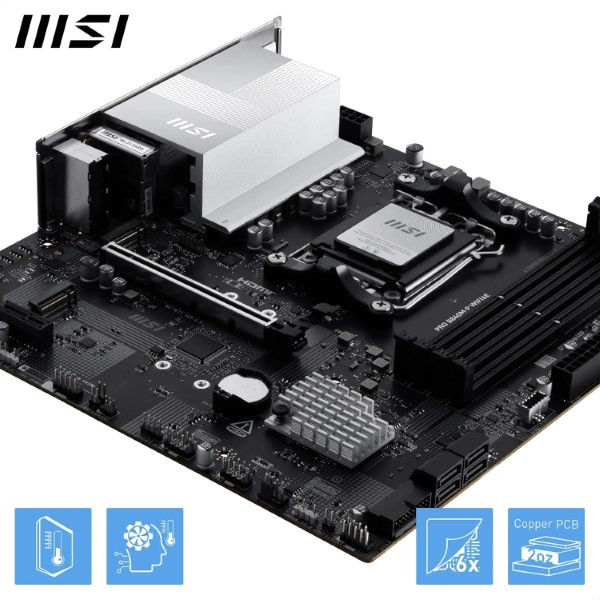

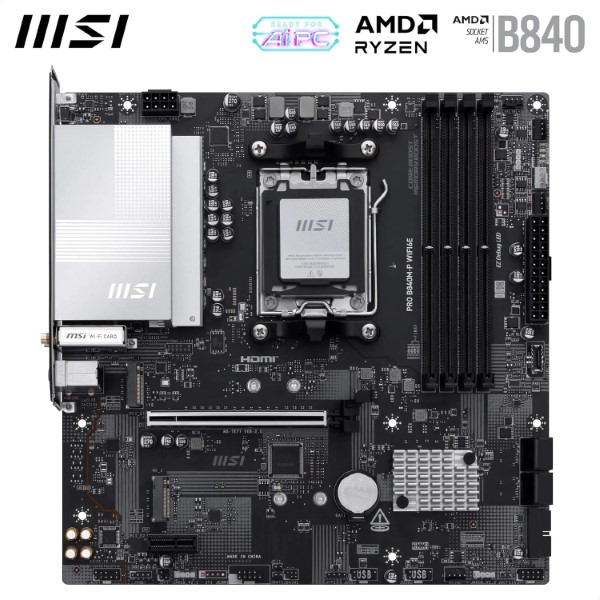

MSI PRO B840M-P WIFI6E DDR5 AMD AM5 M-ATX Motherboard
Features:
MSI PRO B840M-P WIFI6E Motherboard Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
Ultra Performance:
MSI PRO B840M-P WIFI6E 7+2+1 P-PAK Power System, 8-pin CPU power connector, Core Boost, Memory Boost, 6-layer PCB with 2oz thickened copper. Supports DDR5 Memory, Dual Channel DDR5 8000+ MT/s (OC)
Frozr Guard:
Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop experience
Lightning Fast Game experience:

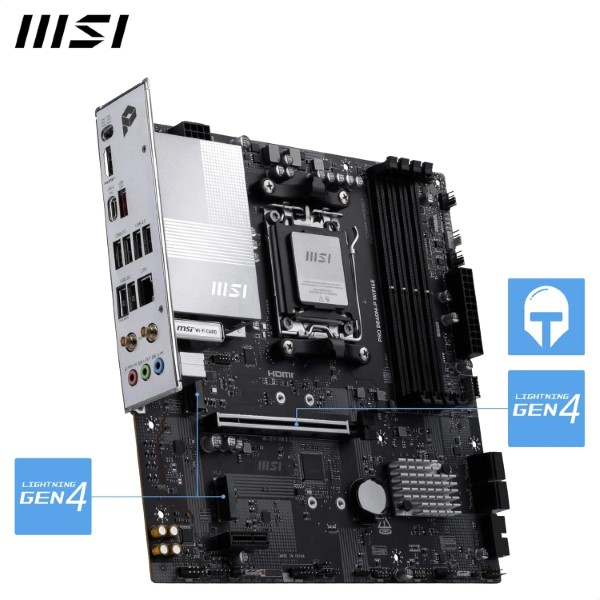

MSI PRO B840M-P WIFI6E PCIe 4.0 slot, Lightning Gen 4 x4 M.2, Front USB Type-C
High-speed Connectivity:
Wi-Fi 6E with 2.5G LAN -The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
EZ DIY:

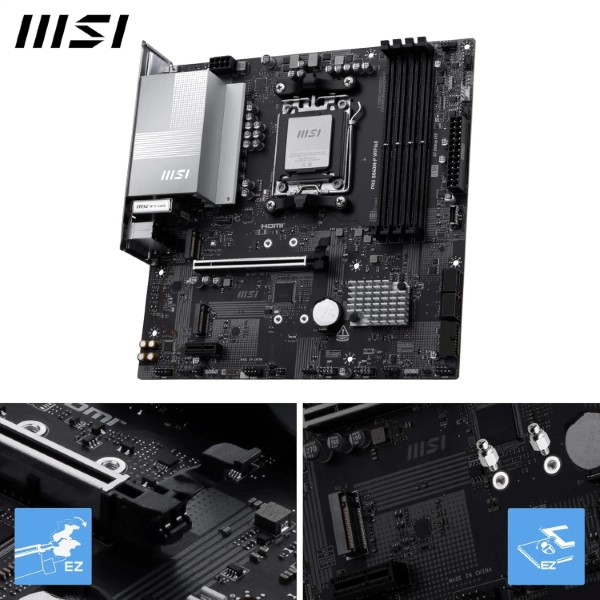

EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
Audio Boost:
MSI PRO B840M-P WIFI6E Reward your ears with studio-grade sound quality for the most immersive gaming experience. The B840M GAMING WIFI6E is crafted to offer extensive connectivity, versatile tools, and Wi-Fi solution for gamers seeking a comprehensive experience. Featuring Wi-Fi 6E, 2.5G LAN, PCIe 4.0 solution and exclusive EZ DIY features, it is ready for 24/7 non-stop gaming optimized for AMD Ryzen™ 9000 series processors.
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
DIRECT 7+2+1 POWER DESIGN
MSI PRO B840M-P WIFI6E Unleash and sustain excellent performance with an enhanced VRM design built with digital CPU power system, 8-pin power connector and exclusive Core Boost technology, the B840M GAMING WIFI6E is ready to sustain heavy gaming loadings.
M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
Additional information
| Motherboard brand chipset | |
|---|---|
| MOTHERBOARD CHIPSET | |
| Motherboard form factor | |
| Motherboard socket |
Brand
MSI
Specification
| Model | PRO B840M-P WIFI6E |
| Chipset | AMD B840 |
| CPU | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors |
| Socket AM5 | |
| Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB |
| Memory Support DDR5 8000 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s | |
| Ryzen™ 9000 Series Processors max. overclocking frequency: | |
| • 1DPC 1R Max speed up to 8000+ MT/s | |
| • 1DPC 2R Max speed up to 6400+ MT/s | |
| • 2DPC 1R Max speed up to 6400+ MT/s | |
| • 2DPC 2R Max speed up to 5600+ MT/sSupports AMD POR Speed and JEDEC Speed | |
| Supports Memory Overclocking and AMD EXPOTM | |
| Supports Dual-Channel mode | |
| Supports Non-ECC, Un-buffered memory | |
| Supports CUDIMM, Clock Driver bypass mode only* | |
| Onboard Graphics | 1x HDMI™ |
| Support HDMI™ 2.1, maximum resolution of 4K 60Hz* | |
| Slot | 1x PCI-E x16 slot |
| 1x PCI-E x1 slot | |
| PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) | |
| PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) | |
| PCI_E1 slot | |
| • Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors) | |
| • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) | |
| • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processors) | |
| Audio | Realtek® ALC897 Codec |
| 7.1-Channel High Definition Audio | |
| Storage | 2x M.2 |
| M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices | |
| M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices | |
| 4x SATA 6G | |
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices |
| Supports RAID 0 and RAID 1 for M.2 NVMe storage devices | |
| USB | 4x USB 2.0 (Rear) |
| 4x USB 2.0 (Front) | |
| 2x USB 5Gbps Type A (Rear) | |
| 2x USB 5Gbps Type A (Front) | |
| 1x USB 5Gbps Type C (Front) | |
| 1x USB 10Gbps Type A (Rear) | |
| 1x USB 10Gbps Type C (Rear) | |
| LAN | Realtek® 8125D 2.5G LAN |
| Internal IO | 1x Power Connector(ATX_PWR) |
| 1x Power Connector(CPU_PWR) | |
| 1x CPU Fan | |
| 1x Combo Fan (Pump_Sys Fan) | |
| 3x System Fan | |
| 2x Front Panel (JFP) | |
| 1x Chassis Intrusion (JCI) | |
| 1x Front Audio (JAUD) | |
| 1x Com Port (JCOM) | |
| 1x Tuning Controller connector(JDASH) | |
| 3x Addressable V2 RGB LED connector (JARGB_V2) | |
| 1x RGB LED connector(JRGB) | |
| 1x TPM pin header(Support TPM 2.0) | |
| 4x USB 2.0 ports | |
| 2x USB 5Gbps Type A ports | |
| 1x USB 5Gbps Type C ports | |
| Wireless LAN & Bluetooth | Wi-Fi 6E |
| The Wireless module is pre-installed in the M.2 (Key-E) slot | |
| Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.4Gbps | |
| Supports 802.11 a/ b/ g/ n/ ac/ ax | |
| Supports Bluetooth® 5.3**, FIPS, FISMA | |
| LED Feature | 4x EZ Debug LED |
| 1x EZ Memory Detection LED | |
| Back Panel Ports | Clear CMOS Button |
| HDMI™ | |
| USB 10Gbps Type-A | |
| USB 2.0 | |
| 2.5G LAN | |
| Wi-Fi / Bluetooth | |
| Audio connectors | |
| Flash BIOS Button | |
| USB 10Gbps Type-C | |
| USB 5Gbps Type-A | |
| Operating System | Support for Windows® 11 64-bit |
| PCB Info | mATX |
| 243.84mmx243.84mm | |
| Warranty | 3 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
