Msi Mag B365M Mortar Motherboard

Availability:

Out of stock


Military style with Extended heatsink design for better thermal solution, Intel Gaming LAN, Pre-installed I/O Shielding, Core Boost, DDR4 Boost, Turbo M.2 and USB 3.1 connector

  • Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
  • Supports DDR4 Memory, up to 2666 MHz
  • Intel Gaming LAN: Premium network solution from Intel® for professional and
    multimedia use. Delivers a secure, stable and fast network connection
  • Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
  • Set Core Power Free: Extended Heatsink Design, Core Boost, DDR4 Boost
  • Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
  • Mystic Light Extension: Control both RGB and RAINBOW strips with independent LEDs added to your system with Mystic Light APP and mobile device
  • Dragon Center: A brand new software which integrates all MSI tools like GAME MODE, VOICE BOOST, LIVE UPDATE  with user friendly user interface.

6,889

Out of stock

Compare

MSI MAG B365M MORTAR MOTHERBOARD

MSI MAG B365M MORTAR MOTHERBOARD

DIY FRIENDLY

MSI motherboards been designed with tons of smart features for convenient setup and usage, such as pin-header keep out zone, friendly SATA & USB location and multiple cooling solutions, so DIY users can pick and choose any gaming rig they want.

STAY COOL FOR RELIABLE SYSTEM

Cooling your PC is essential for reliable performance. MSI motherboards feature excellent power design with solid and heavy heatsink. We’ve made sure to include enough fan headers with full control to allow you to cool your system any way you want.

USER FRIENDLY DESIGN

MSI motherboards feature tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. Makes it so easy to install your own motherboard without any issue.

MAXIMUM COMPATIBILITY

Every MSI motherboards are certified by strict mechanic that feature convenient pin-header keep out zone, friendly SATA & USB location for compatibility with the widest range of components and devices, so DIY user can pick and choose the components they want. More than that, we offer a dedicated Qualified Vendor List (QVL) for the most critical part – memory. Combining with MSI DDR4 Boost technology, we provide the maximum compatibility, so you confirm and choose any gaming rig as you want.

APPS TO GREATLY IMPROVE EFFICIENCY

With years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. Use these tools to get the most out of your motherboard and achieve victory when gaming. Moreover, we made sure our BIOS contains all the latest options and is easy to use for everyone. The extensive features let you fine-tune your system to deliver reliable maximum performance.

ENHANCED PERFORMANCE

MSI motherboards featured all the latest solution for enthusiast gamers and prosumers. CPU and memory enhancement and fast storage and USB transfer speed are ready to be on the battlefield.

TAILORED FOR E-SPORTS ENTHUSIASTS

High-quality materials and intelligent fan optimization help to cool all necessary components, which is critical to ensuring that the system is stable and always delivering the best performance.

UNMATCHED MEMORY PERFORMANCE

Optimized layout design and a fully isolated memory circuitry ensures perfect stability and performance. you never have to worry about your system crashing during games with MSI DDR4 BOOST.

FAST AND FUTURE-READY STORAGE

MSI motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

MAXIMIZE YOUR USB DEVICE PERFORMANCE

Read and write your files over USB faster than ever. MSI offers a wide variety of options to connect and boost your USB devices, delivering lightning-fast transfer speeds up to 10Gb/s

SKU: B365M MORTAR Category: Tags: ,
MOTHERBOARD CHIPSET

MOTHERBOARD FORM FACTOR

MOTHERBOARD SOCKET

PROCESSOR

Supports 9th/ 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket

CHIPSET

Intel® B365 Chipset

MEMORY

  • 4 x DDR4 memory slots, support up to 64GB
  • Supports DDR4 2666/ 2400/ 2133 MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)

SLOTS

  • 1 x PCIe 3.0 x16 slot
  • 2 x PCIe 3.0 x1 slots

ONBOARD GRAPHICS

  • 1 x HDMI™ port 1.4, supports a maximum resolution of 4096×2160@30Hz

*No Display support when using the Processor model with suffix “F”

STORAGE

Intel® B365 Chipset

  • 6 x SATA 6Gb/s ports1
  • 1 x M.2 slots (Key M)
    • Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
    • Intel® Optane™ Memory Ready2
  1. SATA1 port will be unavailable when installing SATA M.2 SSD in M.2 slot.
  2. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

RAID

Intel® B365 Chipset

  • Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices

USB

Intel® B365 Chipset

  • 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)
  • 6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors)

AUDIO

Realtek® ALC892 Codec

  • 7.1-Channel High Definition Audio

LAN

  • 1 x Intel® I219-V Gigabit LAN controller

INTERNAL CONNECTORS

  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 6 x SATA 6Gb/s connectors
  • 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
  • 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
  • 1 x 4-pin CPU fan connector
  • 2 x 4-pin system fan connectors
  • 1 x Front panel audio connector
  • 2 x Front panel connectors
  • 1 x Serial port connector
  • 1 x Parallel port connector
  • 1 x 3-pin RAINBOW LED connector
  • 1 x 4-pin RGB LED connector
  • 1 x TPM module connector
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper

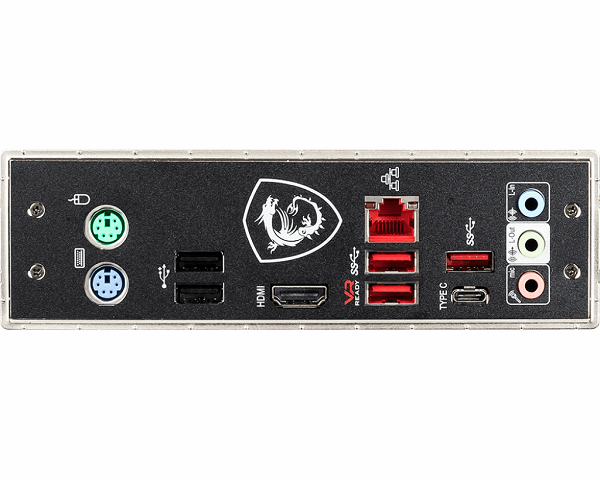

BACK PANEL PORTS

  1. Mouse Port
  2. Intel GAMING LAN
  3. HD Audio Connectors
  4. Keyboard Port
  5. USB 2.0 ports
  6. HDMI Port
  7. USB 3.1 Gen1 Type-A ports
  8. USB 3.1 Gen1 Type-A+C ports
MSI MAG B365M MORTAR back panel ports

DIMENSIONS

  • 9.6 in. x 9.6 in. (24.3 cm x 24.3 cm)
  • Micro-ATX Form Factor

MOUNTING

8 mounting holes

OPERATING SYSTEM

  • Support for Windows® 10 64-bit
