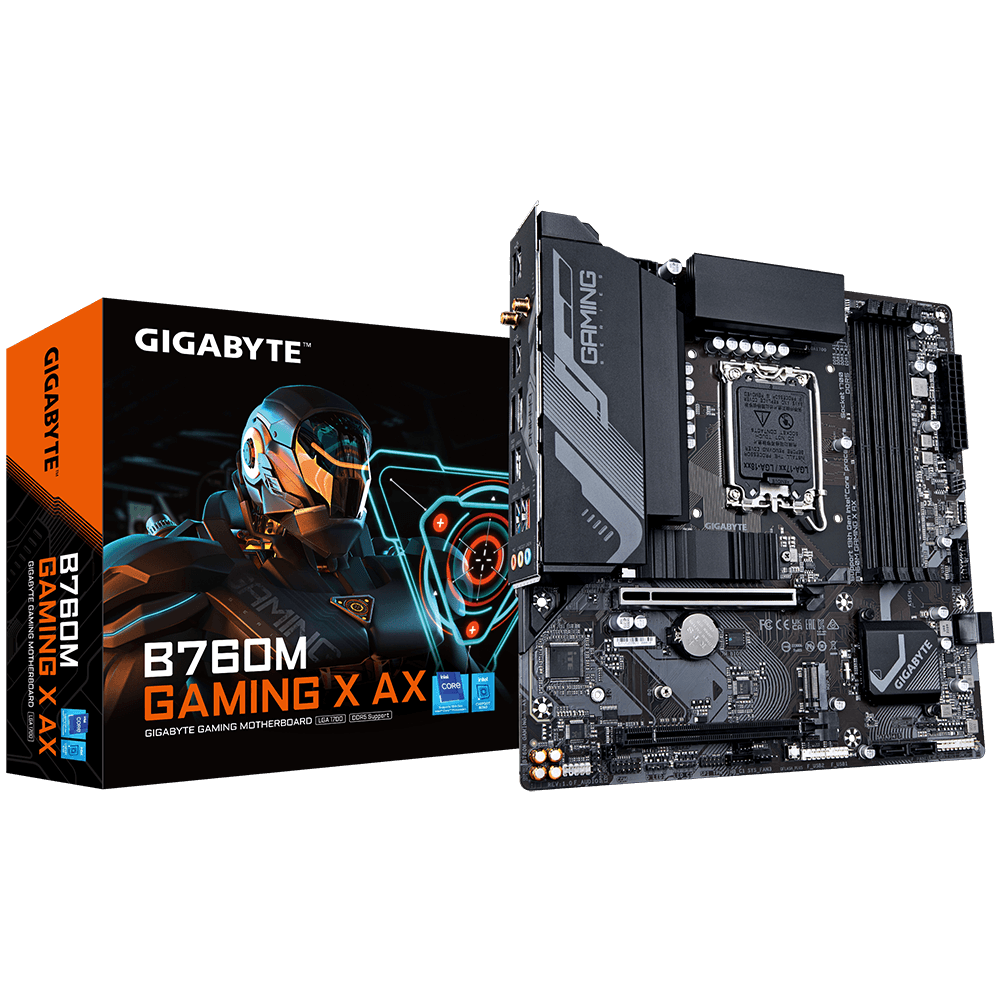

Gigabyte B760M Gaming X AX DDR5 WiFi Intel LGA1700 M-ATX Motherboard
Original price was: ₹25,490.₹17,090Current price is: ₹17,090.
In stock
Description
Gigabyte B760M Gaming X AX DDR5 WiFi Intel LGA1700 M-ATX Motherboard
Gigabyte B760M Gaming X AX Motherboard Supports Intel® Core™ 14th/ 13th /12th processors
Unparalleled Performance: Hybrid 8+1+1 Phases Digital VRM Solution
Dual Channel DDR5:4*DIMMs XMP Memory Module Support
Next Generation Storage:2*PCIe 4.0 x4 M.2 Connectors
Advanced Thermal Design & M.2 Thermal Guard :To Ensure VRM Power Stability & M.2 SSD Performance
EZ-Latch:PCIe 4.0×16 Slot with Quick Release Design
Fast Networks:2.5GbE LAN & Wi-Fi 6E 802.11ax
Extended Connectivity:Front USB-C® 10Gb/s, DP, HDMI
Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card
Additional information
Chipset | |
---|---|
Motherboard brand chipset | |
Motherboard form factor | |
Motherboard socket |
Specification
CPU |
|
1. LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors | |
2. L3 cache varies with CPU | |
(Please refer “CPU Support List” for more information.) | |
Chipset |
1. Intel® B760 Express Chipset |
|
|
Memory |
1. Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules |
2. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory | |
3. Dual channel memory architecture | |
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
6. Support for Extreme Memory Profile (XMP) memory modules | |
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” for more information.) | |
Onboard Graphics |
Integrated Graphics Processor-Intel® HD Graphics support: |
1. 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz | |
* Support for DisplayPort 1.2 version and HDCP 2.3 | |
2. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz | |
* Support for HDMI 2.1 version and HDCP 2.3. | |
** Support native HDMI 2.1 TMDS compatible ports. | |
(Graphics specifications may vary depending on CPU support.) | |
Audio |
1. Realtek® Audio CODEC |
2. High Definition Audio | |
3. 2/4/5.1/7.1-channel | |
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. | |
4. Support for S/PDIF Out | |
LAN |
1. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
|
|
Wireless Communication module |
Intel® Wi-Fi 6E AX210 |
1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands | |
2. BLUETOOTH 5.3 | |
3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate | |
Intel® Wi-Fi 6E AX211 | |
1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands | |
2. BLUETOOTH 5.3 | |
3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate | |
Realtek® Wi-Fi 6E RTL8852CE | |
1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands | |
2. BLUETOOTH 5.3 | |
3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate | |
(Actual data rate may vary depending on environment and equipment.) | |
Expansion Slots |
CPU: |
1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) | |
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. | |
Chipset: | |
1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) | |
Storage Interface |
CPU: |
1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) | |
Chipset: | |
1. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) | |
2. 4 x SATA 6Gb/s connectors | |
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices | |
USB |
Chipset: |
1. 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header | |
2. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) | |
3. 1 x USB 2.0/1.1 port on the back panel | |
Chipset+2 USB 2.0 Hubs: | |
1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) | |
Internal I/O Connectors |
1. 1 x 24-pin ATX main power connector |
2. 1 x 8-pin ATX 12V power connector | |
3. 1 x CPU fan header | |
4. 3 x system fan headers | |
5. 2 x addressable LED strip headers | |
6. 2 x RGB LED strip headers | |
7. 2 x M.2 Socket 3 connectors | |
8. 4 x SATA 6Gb/s connectors | |
9. 1 x front panel header | |
10. 1 x front panel audio header | |
11. 1 x S/PDIF Out header | |
12. 1 x USB Type-C® header, with USB 3.2 Gen 2 support | |
13. 1 x USB 3.2 Gen 1 header | |
14. 2 x USB 2.0/1.1 headers | |
15. 2 x Thunderbolt™ add-in card connectors | |
16. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
17. 1 x serial port header | |
18. 1 x Q-Flash Plus button | |
19. 1 x reset jumper | |
20. 1 x Clear CMOS jumper | |
Back Panel Connectors |
1. 3 x USB 3.2 Gen 1 ports |
2. 5 x USB 2.0/1.1 ports | |
3. 2 x SMA antenna connectors (2T2R) | |
4. 1 x HDMI 2.0 port | |
5. 1 x DisplayPort | |
6. 1 x RJ-45 port | |
7. 3 x audio jacks | |
I/O Controller |
1. iTE® I/O Controller Chip |
|
|
H/W Monitoring |
1. Voltage detection |
2. Temperature detection | |
3. Fan speed detection | |
4. Water cooling flow rate detection | |
5. Fan fail warning | |
6. Fan speed control | |
* Whether the fan speed control function is supported will depend on the fan you install. | |
BIOS |
1. 1 x 256 Mbit flash |
2. Use of licensed AMI UEFI BIOS | |
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
Unique Features |
1. Support for GIGABYTE Control Center (GCC) |
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. | |
2. Support for Q-Flash | |
3. Support for Q-Flash Plus | |
Bundled Software |
1. Norton® Internet Security (OEM version) |
2. LAN bandwidth management software | |
Operating System |
1. Support for Windows 11 64-bit |
2. Support for Windows 10 64-bit | |
Form Factor |
1. Micro ATX Form Factor; 24.4cm x 24.4cm |
