-11%
, ,

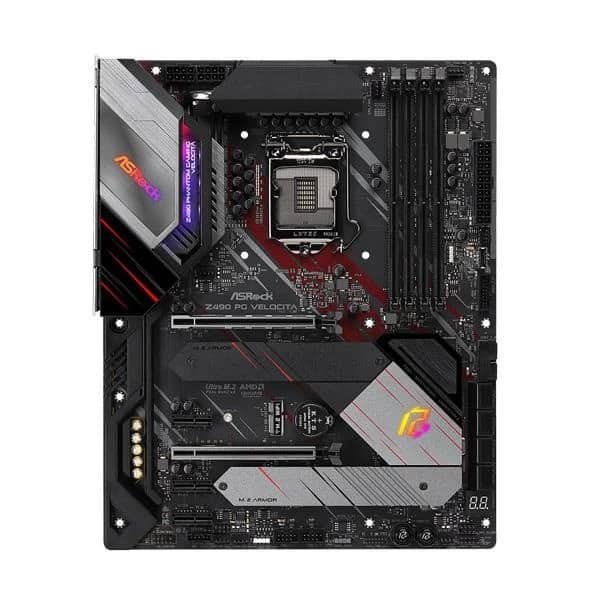

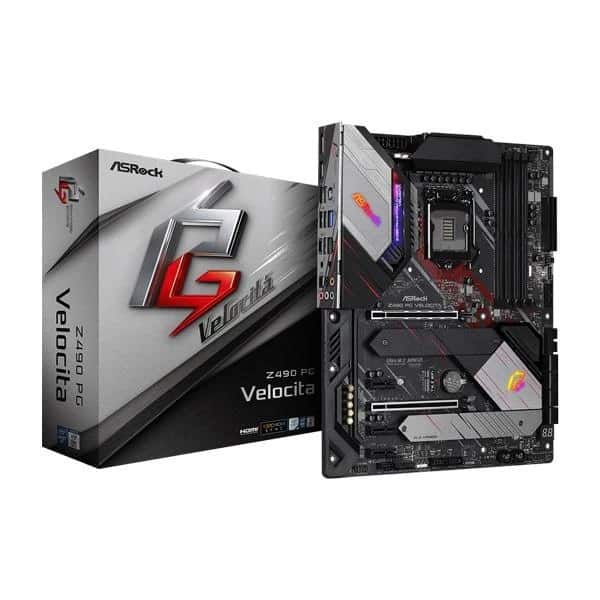

ASROCK Z490 PG VELOCITA MOTHERBOARD

Availability:

Out of stock


  • Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors (LGA1200)*
  • 13 Phase Dr.MOS Power Design
  • Supports DDR4 4666MHz+ (OC)
  • 2 PCIe 3.0 x16, 3 PCIe 3.0 x1, 1 M.2 (Key E) for WiFi
  • AMD Quad CrossFireX™ and CrossFireX™
  • Graphics Output Options: HDMI, DisplayPort
  • 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Nahimic Audio
  • 8 SATA3, 2 Ultra M.2 (PCIe Gen3 x4 & SATA3)
  • 2 USB 3.2 Gen2 (Rear Type A+C), 9 USB 3.2 Gen1 (4 Front, 4 Rear, Front Type-C)
  • Phantom Gaming 2.5 Gigabit LAN, Intel® Gigabit LAN
  • ASRock Polychrome SYNC

24,849 27,999

Out of stock

ASROCK Z490 PG VELOCITA MOTHERBOARD

PG Velocita is a brand new high end product line under the Phantom Gaming family, the PG Velocita motherboard series packed full with uncompromised performance as well as relentless appearance. “Velocità” is Italian for “Velocity”, destined to give a fast and unbeatable gaming experience to the gamers!

PCI Express 4.0 Hardware Ready!

Welcome to the PCI Express 4.0 new era and be a smart buyer with ASRock motherboards! Z490 enthusiast level motherboards equipped with luxury components that allows geeks to be hardware ready for PCI Express 4.0 standard !

XXL Aluminum Alloy Heatsink with Active FAN Design

XXL Aluminum Alloy Heatsink design with active fan that effectively improve heat dissipation and promotes overall performance. This is aimed for die hard gamers and enthusiasts to bring a new computing experience paired with Intel’s 10-core processors.

0dB Silent Cooling

Realize the completely silent computing by automatically adjusts fan speed and even command it stop working when the temperature goes low

Nahimic Audio

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

Dr. MOS

Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

Premium 60A Power Choke

Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Clever Access Memory

Conventional PC systems processor can only access a fraction of graphics memory and limits system performance. With Clever Access Memory, the data channel gets expanded to harness the full potential of GPU memory, removes the bottleneck and increase performance.

Heat Dissipating PCB Technology

Luxurious features extend to the onboard heat dissipating PCB points. Heat Dissipating PCB gives the motherboard a more mysterious touch and this design effectively takes the heat away from PCB and lower down the temperature up to 4.1 degrees!

2oz Copper PCB

2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking, it’s able to support the latest DDR4 memory modules with most extreme memory performance!

RULE YOUR OWN LIGHTING WAY – POLYCHROME RGB

ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.

Phantom Gaming 2.5 Gb/s LAN

The intelligent Phantom Gaming 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

Dual M.2 For SSD

Ready for higher capacity and even faster Type 22110 M.2 NVMe SSD to fulfill the need of performance. Two Ultra M.2 sockets that support both SATA3 6Gb/s and PCIe Gen3 x4 modes, pushing data transfer speeds up to 32Gb/s.

M.2 Armors

Good M.2 SSD protection is important for longevity and stability. ASRock provides a completed M.2 armor solution that makes SSDs to run in a certain low temperature.

Front USB 3.2 Gen1 Type-C

Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

SKU: Z490-PG-VELOCITA Categories: , ,

Brand

Asrock

MOTHERBOARD CHIPSET

MOTHERBOARD FORM FACTOR

MOTHERBOARD SOCKET

    • Gaming Armor
      Power
      – Hi-Density Power Connectors (24 pin and 8 pin)
      Memory
      – 15μ Gold Contact in DIMM Slots
      VGA Card
      – 15μ Gold Contact in VGA PCIe Slot (PCIE1)
      Internet
      – 2.5G LAN
      Cooling
      – XXL Aluminum Alloy Heatsink
      – Heat Pipe Design
      Audio
      – Nahimic Audio
    • Unique Feature
      ASRock USB 3.2 Gen2
      – ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
      – ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)
      ASRock Super Alloy
      – XXL Aluminum Alloy Heatsink
      – Premium 60A Power Choke
      – 50A Dr.MOS
      – Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)
      – Combo Caps (Nichicon 12K Black Caps)
      – Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
      – I/O Armor
      – Matte Black PCB
      – High Density Glass Fabric PCB
      – 2oz Copper PCB
      – ASRock Phantom Gaming 2.5G LAN
      ASRock Steel Slots
      ASRock Full Coverage M.2 Heatsink
      ASRock Hyper M.2 (PCIe Gen4x4)
      ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
      ASRock Ultra USB Power
      ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
      ASRock Live Update & APP Shop
    • CPU
      – Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors (LGA1200)
      – Digi Power design
      – 13 Power Phase design
      – Supports Intel® Turbo Boost Max 3.0 Technology
      – Supports Intel® K-Series unlocked CPUs
      – Supports ASRock BCLK Full-range Overclocking
      – Supports ASRock Hyper BCLK Engine III
    • Chipset
      – Intel® Z490
    • Memory
      – Dual Channel DDR4 Memory Technology
      – 4 x DDR4 DIMM Slots
      – 11th Gen Intel® Core™ Processors support DDR4 non-ECC, un-buffered memory up to 5000+(OC)*
      – 10th Gen Intel® Core™ Processors support DDR4 non-ECC, un-buffered memory up to 4666+(OC)*
      – Supports ECC UDIMM memory modules (operate in non-ECC mode)
      – Max. capacity of system memory: 128GB***
      – Supports Intel® Extreme Memory Profile (XMP) 2.0
      – 15μ Gold Contact in DIMM Slots

      *11th Gen Intel® Core™ (i9/i7/i5) support DDR4 up to 2933; Core™ (i3), Pentium® and Celeron® support DDR4 up to 2666 natively.
      10th Gen Intel® Core™ (i9/i7) support DDR4 up to 2933; Core™ (i5/i3), Pentium® and Celeron® support DDR4 up to 2666 natively.

      **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

    • BIOS
      – 128Mb AMI UEFI Legal BIOS with multilingual GUI support
      – ACPI 6.0 Compliant wake up events
      – SMBIOS 2.7 Support
      – CPU Core/Cache, GT, DRAM, VPPM,VTTDDR, VCCSFR, VCCPLL_OC, PCH Voltage, VCCIO, VCCST, VCCSA, CPU Internal PLL, GT PLL, Ring PLL, System Agent PLL, Memory Controller PLL Voltage Multi-adjustment
    • Graphics
      – Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1**
      – Graphics, Media & Compute: Microsoft® DirectX 12, OpenGL 4.5, Intel® Built In Visuals, Intel® Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
      – Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft® PlayReady 3.0, Intel® SGX Content Protection, UHD/HDR Blu-ray Disc
      – Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
      – Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096×2160) @ 30Hz
      – Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096×2304) @ 60Hz
      – Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
      – Supports HDCP 2.3 with HDMI 1.4 and DisplayPort 1.4 Ports
      – Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.4 Ports

      *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

      **VP9 10bit and VC-1 are for decode only.
      VP8 and VP9 encode are not supported by Windows® OS.

    • Audio
      – 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
      – Premium Blu-ray Audio support
      – Supports Surge Protection
      – 120dB SNR DAC with Differential Amplifier
      – NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)
      – Pure Power-In
      – Direct Drive Technology
      – PCB Isolate Shielding
      – Impedance Sensing on Rear Out port
      – Individual PCB Layers for R/L Audio Channel
      – Gold Audio Jacks
      – 15μ Gold Audio Connector
      – Nahimic Audio
    • LAN
      1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)
      – Supports Phantom Gaming LAN Software
      – Smart Auto Adjust Bandwidth Control
      – Visual User Friendly UI
      – Visual Network Usage Statistics
      – Optimized Default Setting for Game, Browser, and Streaming Modes
      – User Customized Priority Control
      – Supports Wake-On-LAN
      – Supports Lightning/ESD Protection
      – Supports Energy Efficient Ethernet 802.3az
      – Supports PXE
      1 x Gigabit LAN 10/100/1000 Mb/s (Intel® I219V)
      – Supports Wake-On-LAN
      – Supports Lightning/ESD Protection
      – Supports Energy Efficient Ethernet 802.3az
      – Supports PXE
  • Slots
    11th Gen Intel® Core™ Processors
    – 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x4 (PCIE3)*
    10th Gen Intel® Core™ Processors
    – 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen3x16 (PCIE1); dual at Gen3x16 (PCIE1) / Gen3x4 (PCIE3)*
    – 3 x PCI Express 3.0 x1 Slots
    – Supports AMD Quad CrossFireX™ and CrossFireX™
    – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT)
    – 15μ Gold Contact in VGA PCIe Slot (PCIE1)

    *Supports NVMe SSD as boot disks
  • Storage
    – 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 17), NCQ, AHCI and Hot Plug*
    – 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug*
    – 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (Socket M2_1 works with 11th Gen Intel® Core™ processors only)**
    – 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
    – 1 x Ultra M.2 Socket (M2_3), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**

    *M2_2, SATA3_0 and SATA3_1 share lanes. If either one of them is in use, the others will be disabled.
    M2_3, SATA3_4 and SATA3_5 share lanes. If either one of them is in use, the others will be disabled.

    **Supports Intel® Optane™ Technology
    Supports NVMe SSD as boot disks
    Supports ASRock U.2 Kit

  • Connector
    – 1 x SPI TPM Header
    – 1 x Power LED and Speaker Header
    – 2 x RGB LED Headers*
    – 2 x Addressable LED Headers**
    – 1 x CPU Fan Connector (4-pin)***
    – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
    – 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****
    – 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
    – 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
    – 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
    – 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 3 AIC R2.0 Card only)
    – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Intel® Z490) (Supports ESD Protection)
    – 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)
    – 1 x Front Panel Type C USB 3.2 Gen1 Header (Intel® Z490) (Supports ESD Protection)
    – 1 x Dr. Debug with LED
    – 1 x Power Button with LED
    – 1 x Reset Button with LED

    *Support in total up to 12V/3A, 36W LED Strip

    **Support in total up to 5V/3A, 15W LED Strip

    ***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

    ****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
    CPU_FAN2/WP_3A, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP, CHA_FAN4/WP and CHA_FAN5/WP can auto detect if 3-pin or 4-pin fan is in use.
    CPU_FAN2/WP_3A supports the water cooler fan of maximum 3A (36W) fan power.

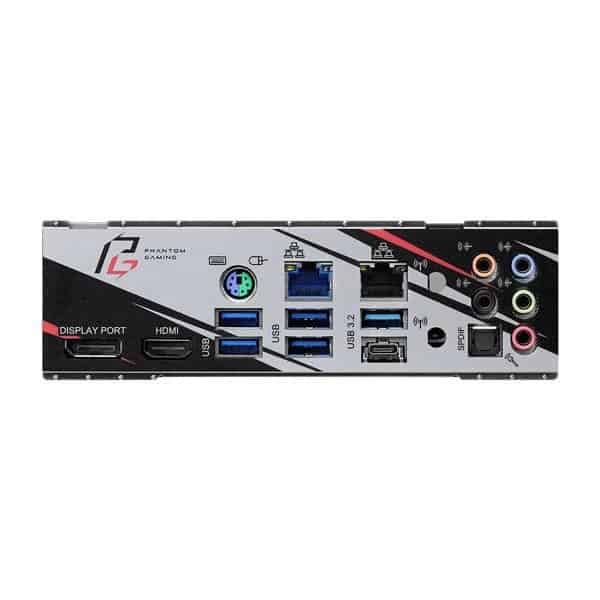

  • Rear Panel I/O
    – 2 x Antenna Mounting Points
    – 1 x PS/2 Mouse/Keyboard Port
    – 1 x HDMI Port
    – 1 x DisplayPort 1.4
    – 1 x Optical SPDIF Out Port
    – 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
    – 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
    – 4 x USB 3.2 Gen1 Ports (Intel® Z490) (Supports ESD Protection)*
    – 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
    – HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)

    *Ultra USB Power is supported on USB3_34 ports.
    ACPI wake-up function is not supported on USB3_34 ports.
  • Software and UEFI
    Software
    – ASRock Motherboard Utility (Phantom Gaming Tuning)
    – ASRock Phantom Gaming LAN Software
    – ASRock Polychrome SYNC
    – ASRock Key Master*
    UEFI
    – ASRock EZ Mode
    – ASRock Full HD UEFI
    – ASRock My Favorites in UEFI
    – ASRock Instant Flash
    – ASRock Internet Flash
    – ASRock Easy RAID Installer

    *These utilities can be downloaded from ASRock Live Update & APP Shop.
  • Support CD
    – Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
  • Accessories
    – Quick Installation Guide, Support CD
    – 4 x SATA Data Cables
    – 3 x Screws for M.2 Sockets
    – 2 x Standoffs for M.2 Sockets
  • Hardware Monitor
    – Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans
    – Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
    – Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
    – Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
    – Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, PCH, VCCSA, VCCST, VCCIO, VCCPLL_OC, VCCSFR
  • Form Factor
    – ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
    – 2oz Copper PCB
  • OS
    – Microsoft® Windows® 10 64-bit
  • Certifications
    – FCC, CE
    – ErP/EuP ready (ErP/EuP ready power supply is required)
