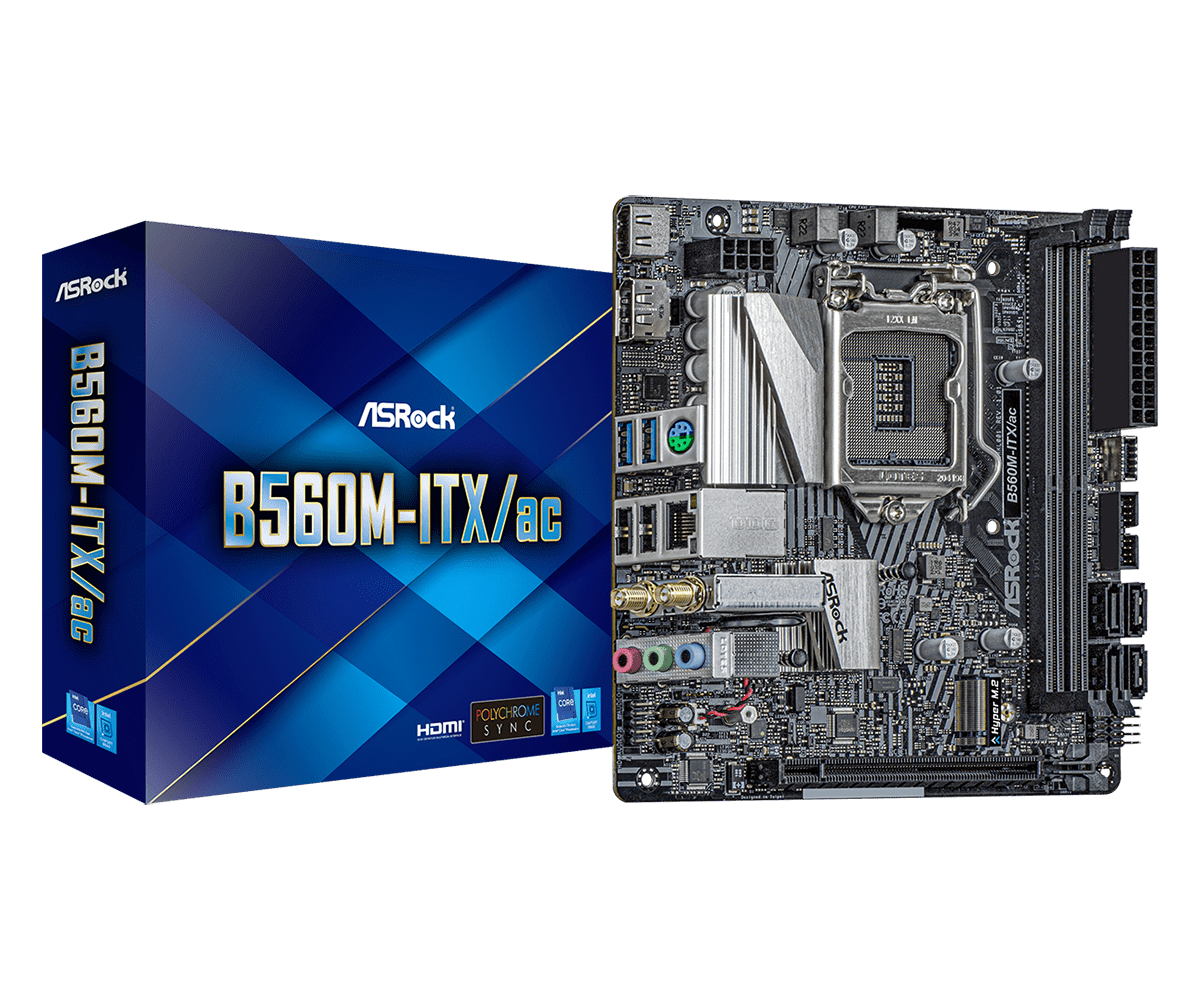

ASROCK B560M-ITX/AC WIFI INTEL 11TH AND 10TH GEN LGA1200 MOTHERBOARD

Availability:

Out of stock


  • Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors
  • 6 Phase Dr.MOS Power Design
  • Supports DDR4 4600MHz (OC)
  • 1 x PCIe 4.0 x16
  • Graphics Output Options: HDMI, DisplayPort
  • 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  • 4 SATA3, 1 x Hyper M.2 (PCIe Gen4 x4 & SATA3)
  • 5 x USB 3.2 Gen1 (2 x Rear, 2 x Front, 1 x Front Type-C)
  • 4 x USB 2.0 (2 x Rear, 2 x Front)
  • Intel® Gigabit LAN
  • Intel® 802.11ac WiFi + BT 4.2

9,749 13,599

Out of stock

ASROCK B560M-ITX/AC WIFI INTEL 11TH AND 10TH GEN LGA1200 MOTHERBOARD

ASROCK B560M-ITX/AC WIFI Dr. MOS

  • Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

Premium 60A Power Choke

  • Compared to traditional chokes, ASROCK B560M-ITX/AC WIFI motherboard’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Clever Access Memory

  • Conventional PC systems processor can only access a fraction of graphics memory and limits system performance. With ASROCK B560M-ITX/AC WIFI Clever Access Memory, the data channel gets expanded to harness the full potential of GPU memory, removes the bottleneck and increase performance.

Base Frequency Boost (BFB) Technology

  • Who ever said that only K series CPUs and the Z-family platform are capable of being performed with maximum power. Via ASROCK B560M-ITX/AC WIFI BFB (Base Frequency Boost) Technology, users may install their non K series CPUs to ASRock’s selected 500 series motherboards and enjoy the base frequency boost with the hidden power of processors immediately.
  • While ASROCK B560M-ITX/AC WIFI BFB breathes life into non K series CPUs, the boost frequency currently still depends on the cooling system applied on your rig.

Hyper M.2 (PCIe Gen4 x4)

  • ASROCK B560M-ITX/AC WIFI Supports the next generation PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Dual Band 802.11ac WiFi

  • No one has time for weak WiFi signals and sluggish internet! That’s why this motherboard comes with a 802.11ac WiFi (2.4G / 5G WiFi) module which supports wireless networks and Bluetooth v4.2.

Intel® LAN

  • Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!

RULE YOUR OWN LIGHTING WAY – POLYCHROME RGB

  • ASROCK B560M-ITX/AC WIFI motherboard features onboard addressable RGB header that allows motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

Front USB 3.2 Gen1 Type-C

  • Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

Dual Graphics Outputs

  • Complete with two types of most used connectors! ASROCK B560M-ITX/AC WIFI Packed with a HDMI + DisplayPort combo, you have more graphics output options now.

HDMI 4k @60Hz

  • ASROCK B560M-ITX/AC WIFI Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.

Brand

Asrock

MOTHERBOARD CHIPSET

Intel B560

MOTHERBOARD FORM FACTOR

MINI ITX

MOTHERBOARD SOCKET

LGA 1200

Unique Feature ASRock Super Alloy
– Premium 60A Power Choke
– 50A Dr.MOS
– Sapphire Black PCB
– High Density Glass Fabric PCB
Intel® 802.11ac WiFi
ASRock Hyper M.2 (PCIe Gen4x4 & SATA3)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
CPU – Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors (LGA1200)
– Digi Power design
– 6 Power Phase design
– Supports Intel® Turbo Boost Max 3.0 Technology
Chipset – Intel® B560
Memory – Dual Channel DDR4 Memory Technology
– 2 x DDR4 DIMM Slots
– 11th Gen Intel® Core™ Processors support DDR4 non-ECC, un-buffered memory up to 4600+(OC)*
– 10th Gen Intel® Core™ Processors support DDR4 non-ECC, un-buffered memory up to 4400+(OC)*
– Supports ECC UDIMM memory modules (operate in non-ECC mode)
– Max. capacity of system memory: 64GB**
– Supports Intel® Extreme Memory Profile (XMP) 2.0
BIOS – 128Mb AMI UEFI Legal BIOS with multilingual GUI support
– ACPI 6.0 Compliant wake up events
– SMBIOS 2.7 Support
– CPU, CPU GT, VCCSA, DRAM, VPPM, VCCIN AUX, VCCIO, VCCST Voltage Multi-adjustment
Graphics – 11th Gen Intel® Core™ Processors support Intel® Xe Graphics Architecture (Gen 12). 10th Gen Intel® Core™ Processors support Gen 9 Graphics
– Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
– Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz with 11th Gen Intel® Core™ Processors
– Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096×2160) @ 30Hz with 10th Gen Intel® Core™ Processors
– Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096×2304) @ 60Hz
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required)
– Supports HDCP 2.2 with DisplayPort and HDMI Ports (HDCP 2.3 ready with 11th Gen Intel® Core™ Processors)
Audio – 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
– Supports Surge Protection
LAN – Gigabit LAN 10/100/1000 Mb/s
– Giga PHY Intel® I219V
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE
Wireless LAN – Intel® 802.11ac WiFi Module
– Supports IEEE 802.11a/b/g/n/ac
– Supports Dual-Band (2.4/5 GHz)
– Supports high speed wireless connections up to 433Mbps
– Supports Bluetooth 4.2 / 3.0 + High speed class II
Slots 11th Gen Intel® Core™ Processors
– 1 x PCI Express 4.0 x16 Slot*
10th Gen Intel® Core™ Processors
– 1 x PCI Express 3.0 x16 Slot*
– 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac PCIe WiFi module (on the rear I/O)
Storage – 4 x SATA3 6.0 Gb/s Connectors, support Intel® Rapid Storage Technology 18, NCQ, AHCI and Hot Plug*
– 1 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4 x4 (64 Gb/s) (with 11th Gen Intel® Core™ Processors) or Gen3 x4 (32 Gb/s) (with 10th Gen Intel® Core™ Processors)
Connector – 1 x Chassis Intrusion Header
– 1 x Addressable LED Header*
– 1 x CPU Fan Connector (4-pin)**
– 1 x Chassis Fan Connector (4-pin)***
– 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
– 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
– 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection)
Rear Panel I/O – 2 x Antenna Ports
– 1 x PS/2 Mouse/Keyboard Port
– 1 x HDMI Port
– 1 x DisplayPort 1.4
– 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
– 2 x USB 2.0 Ports (Supports ESD Protection)
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI Software
– ASRock Motherboard Utility (A-Tuning)
– ASRock Polychrome SYNC
– ASRock XFast LAN
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Instant Flash
– ASRock Internet Flash
Support CD – Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Accessories – Quick Installation Guide, Support CD, I/O Shield
– 2 x SATA Data Cables
– 2 x ASRock WiFi 2.4/5 GHz Antennas
– 1 x Screw for M.2 Socket
Hardware Monitor – Fan Tachometer: CPU, Chassis, Chassis/Water Pump Fans
– Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis, Chassis/Water Pump Fans
– Fan Multi-Speed Control: CPU, Chassis, Chassis/Water Pump Fans
– CASE OPEN detection
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, VCCSA
Form Factor – Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
– Solid Capacitor design
OS – Microsoft® Windows® 10 64-bit / 11 64-bit
Certifications – FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
Warranty 3 Years
