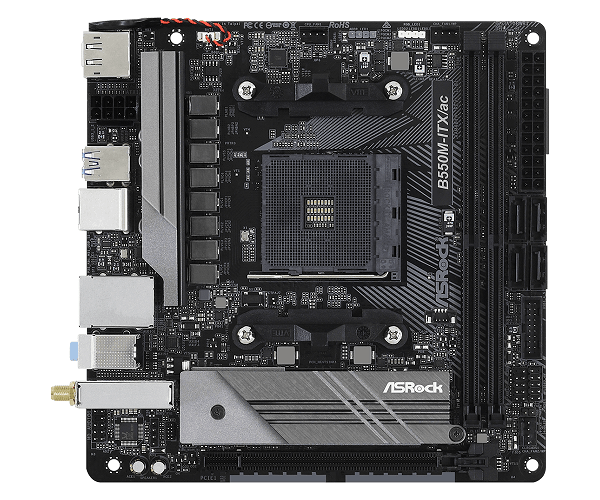

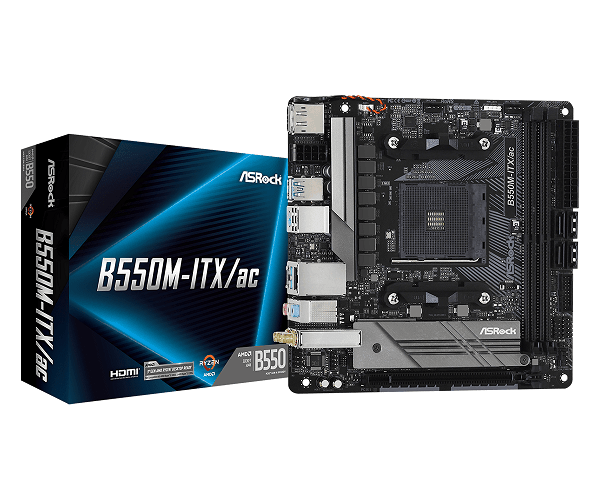

ASROCK B550M ITX AC MOTHERBOARD
Free Shipping
ASROCK B550M ITX AC MOTHERBOARD
, ,

ASROCK B550M ITX AC MOTHERBOARD

Availability:

Out of stock
Add to wishlist
Compare
  • Supports AMD AM4 Socket Ryzen™ 3000, 4000 G-Series and 5000 Series Desktop Processors*
  • Supports DDR4 4733+ (OC)
  • 1 PCIe 4.0 x16
  • Graphics Output: DisplayPort, HDMI
  • 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
  • 4 SATA3, 1 Hyper M.2 (PCIe Gen4 x4 & SATA3)
  • 6 USB 3.2 Gen1 (2 Front, 3 Rear Type-A, 1 Rear Type-C)
  • Realtek Gigabit LAN
  • Intel® 802.11ac WiFi + BT 4.2

₹12,449 ₹14,999

Out of stock

Compare

ASROCK B550M ITX AC MOTHERBOARD

8 Power Phase Design

Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

Premium 60A Power Choke

Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

RULE YOUR OWN LIGHTING WAY – POLYCHROME RGB

This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

Dual Band 802.11ac WiFi

No one has time for weak WiFi signals and sluggish internet! That’s why this motherboard comes with a 802.11ac WiFi (2.4G / 5G WiFi) module which supports wireless networks and Bluetooth v4.2.

Hyper M.2 (PCIe Gen4 x4)

Supports the next generation PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

M.2 Armors

Good M.2 SSD protection is important for longevity and stability. ASRock provides a completed M.2 armor solution that makes SSDs to run in a certain low temperature.

AMD SMART ACCESS MEMORY

Conventional PC systems processor can only access a fraction of graphics memory and limits system performance. With AMD Smart Access Memory, the data channel gets expanded to harness the full potential of GPU memory, removes the bottleneck and increase performance.

Dual USB 3.2 Gen1 (Type-A + Type-C)

This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen1 ports built on the rear i/o for supporting next generation USB 3.2 Gen1 devices and to deliver up to 5 Gbps data transfer rates.

Dual Graphics Outputs

Complete with two types of most used connectors! Packed with a HDMI + DisplayPort combo, you have more graphics output options now.

HDMI 4k @60Hz

Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.

AMD StoreMI Technology

A powerful tool that combines the speed of your SSD with the capacity of your hard disk into a single, fast, easy-to-manage drive, AMD StoreMI technology “combines” these two types of storage into a single drive and automatically moves the data you access the most to the SSD, so you get the best of both worlds.

Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

Live Update & APP Shop

ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

SKU: B550M-ITX-AC Categories: , ,
MOTHERBOARD CHIPSET

Motherboard Brand and Chipset

MOTHERBOARD FORM FACTOR

MOTHERBOARD SOCKET

  • Unique Feature
    ASRock Super Alloy
    – Premium 60A Power Choke
    – 50A Dr.MOS
    – Sapphire Black PCB
    – High Density Glass Fabric PCB
    Intel® 802.11ac WiFi
    ASRock Full Coverage M.2 Heatsink
    ASRock Hyper M.2 (PCIe Gen4x4)
    ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
    ASRock Live Update & APP Shop
  • CPU
    – Supports AMD AM4 Socket Ryzen™ 3000, 4000 G-Series and 5000 Series Desktop Processors*
    – Digi Power design
    – 8 Power Phase design

    *Not compatible with AMD Ryzen™ 5 3400G and Ryzen™ 3 3200G.
  • Chipset
    – AMD B550
  • Memory
    – Dual Channel DDR4 Memory Technology
    – 2 x DDR4 DIMM Slots
    – AMD Ryzen series CPUs (Vermeer) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
    – AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
    – AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
    – Max. capacity of system memory: 64GB**
    – Supports Extreme Memory Profile (XMP) memory modules
    – 15μ Gold Contact in DIMM Slots

    *For Ryzen Series APUs (Renoir), ECC is only supported with PRO CPUs.
    Please refer to below table for AMD non-XMP memory frequency support. For more details.

    Ryzen Series CPUs (Vermeer):

    Ryzen Series CPUs (Matisse):

    Ryzen Series APUs (Renoir):

    SR: Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label
    DR: Dual rank DIMM, 2Rx4 or 2Rx8 on DIMM module label

    **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

  • BIOS
    – 256Mb AMI UEFI Legal BIOS with GUI support
    – Supports “Plug and Play”
    – ACPI 5.1 compliance wake up events
    – Supports jumperfree
    – SMBIOS 2.3 support
    – CPU, CPU VDDCR_SOC, DRAM, VPPM, +1.8VSB, VDDP Voltage Multi-adjustment
  • Graphics
    – Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
    – DirectX 12, Pixel Shader 5.0
    – Shared memory default 2GB. Max Shared memory supports up to 16GB.**
    – Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
    – Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz
    – Supports DisplayPort 1.4 Input with max. resolution up to 5K (5120×2880)@120Hz
    – Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
    – Supports HDR (High Dynamic Range) with HDMI 2.1
    – Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports
    – Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports
    – Supports Microsoft® PlayReady

    *Actual support may vary by CPU

    **The Max shared memory 16GB requires 32GB system memory installed.

  • Audio
    – 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
    – Supports Surge Protection
  • LAN
    – PCIE x1 Gigabit LAN 10/100/1000 Mb/s
    – Realtek RTL8111H
    – Supports Wake-On-LAN
    – Supports Lightning/ESD Protection
    – Supports Energy Efficient Ethernet 802.3az
    – Supports PXE
  • Wireless LAN
    – Intel® 802.11ac WiFi Module
    – Supports IEEE 802.11a/b/g/n/ac
    – Supports Dual-Band (2.4/5 GHz)
    – Supports high speed wireless connections up to 433Mbps
    – Supports Bluetooth 4.2 + High speed class II
  • Slots
    AMD Ryzen series CPUs (Vermeer and Matisse)
    – 1 x PCI Express 4.0 x16 Slot (PCIE1: x16 mode)*
    AMD Ryzen series APUs (Renoir)
    – 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*

    – 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac PCIe WiFi module (on the rear I/O)

    *Supports PCIe riser cards to extend x8/x8 slots
    Supports NVMe SSD as boot disks
  • Storage
    – 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
    – 1 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Renoir)**

    *Supports NVMe SSD as boot disks
    Supports ASRock U.2 Kit
  • Connector
    – 1 x RGB LED Header*
    – 1 x Addressable LED Header**
    – 1 x CPU Fan Connector (4-pin)***
    – 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****
    – 1 x 24 pin ATX Power Connector
    – 1 x 8 pin 12V Power Connector
    – 1 x Front Panel Audio Connector
    – 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
    – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

    *Supports in total up to 12V/3A, 36W LED Strip

    **Supports in total up to 5V/3A, 15W LED Strip

    ***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

    ****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
    CHA_FAN1/WP and CHA_FAN2/WP can auto detect if 3-pin or 4-pin fan is in use.

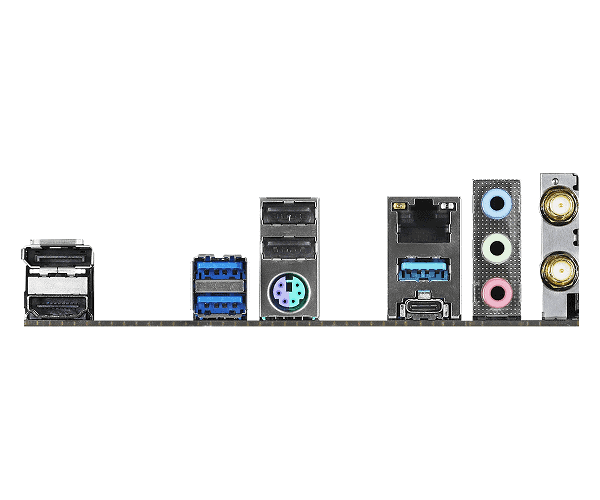

  • Rear Panel I/O
    – 2 x Antenna Ports
    – 1 x PS/2 Mouse/Keyboard Port
    – 1 x HDMI Port
    – 1 x DisplayPort 1.4
    – 2 x USB 2.0 Ports (Supports ESD Protection)
    – 3 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)
    – 1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection)
    – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    – HD Audio Jacks: Line in / Front Speaker / Microphone
  • Software and UEFI
    Software
    – ASRock Motherboard Utility (A-Tuning)
    – ASRock Polychrome SYNC
    – ASRock XFast LAN
    UEFI
    – ASRock Full HD UEFI
    – ASRock Instant Flash

    *These utilities can be downloaded from ASRock Live Update & APP Shop.
  • Support CD
    – Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
  • Accessories
    – Quick Installation Guide, Support CD, I/O Shield
    – 2 x SATA Data Cables
    – 2 x ASRock WiFi 2.4/5 GHz Antennas
  • Hardware Monitor
    – Temperature Sensing: CPU, Chassis/Water Pump Fans
    – Fan Tachometer: CPU, Chassis/Water Pump Fans
    – Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans
    – Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans
    – Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
  • Form Factor
    – Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
    – Solid Capacitor design
  • OS
    – Microsoft® Windows® 10 64-bit
  • Certifications
    – FCC, CE
    – ErP/EuP ready (ErP/EuP ready power supply is required)
