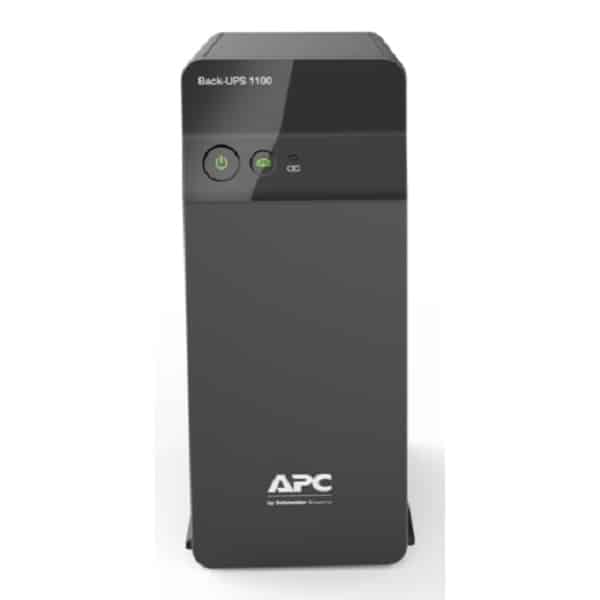

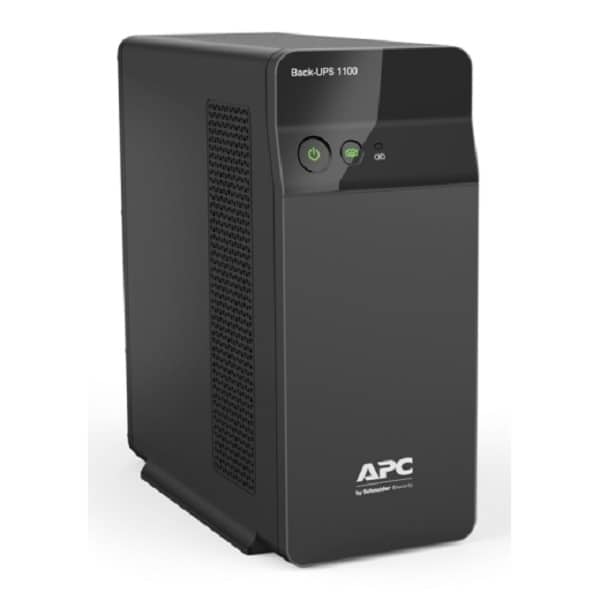

Apc 1100va 230v BX1100C-in Ups


In stock

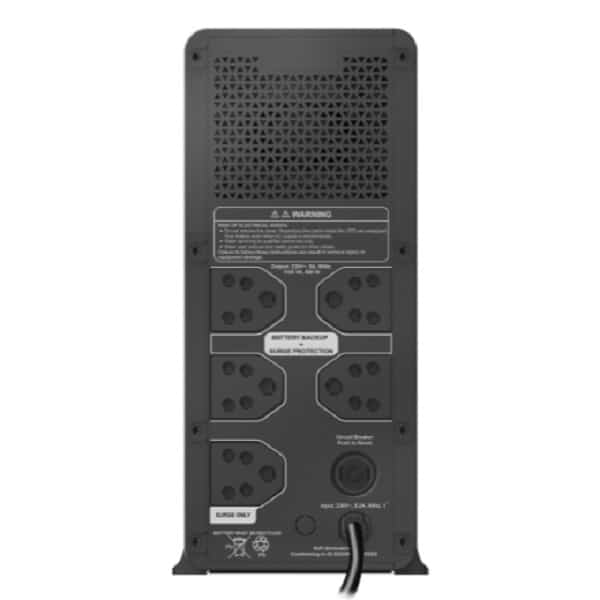

  • Four battery backed outlets with continuous surge protection and one surge only
  • Faster charging 4-6 hours
  • Battery Saver : Increases battery life upto two times. Experience consistent runtime through the battery life
  • Wide input voltage window : 145 V to 290 V
  • Cold start capability allows the load to power on just on battery
  • Automatic Voltage Regulation (AVR) corrects incoming voltage

6,990 8,300

In stock

APC 1100VA 230V BX1100C-IN UPS


Audible alarms

Provides notification of changing utility power and UPS power conditions

Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Automatic Voltage Regulation (AVR)

Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment.

Battery charging indicator

Lets you know when your battery is charging and when it is fully charged.

Battery Saver

Extends battery life by preventing unnecessary discharges while the UPS is on battery.

Boost and Trim Automatic Voltage Regulation (AVR)

Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).

Cold-start capable

Provides temporary battery power when the utility power is out.

Fast battery charging capability

Allows for reduced battery recharge time, prevents disturbances on the distribution system by correcting the power factor, protects the battery against damage caused by deep discharge and provides backfeed protection.

Generator compatibility

Allows you to recharge your battery while on generator power.

LED Indicators

Provide easy-to-read status of the unit and utility power conditions.

SKU: BX1100C-IN Category: Tags: , , ,


Output power capacity 660Watts / 1.1 kVA
Max Configurable Power (Watts) 660Watts / 1.1 kVA
Nominal Output Voltage 230V
Efficiency at Full Load 72.0 %
Output Frequency (sync to mains) 50 Hz
Topology Line Interactive
Waveform type Stepped approximation to a sinewave
Transfer Time 10ms typical : 12ms maximum
Nominal Input Voltage 230V
Input frequency 45 – 65 Hz (auto sensing)
Input Connections India 3-pin 6A
Cord Length 1.52meters
Input voltage range for main operations 145 – 290V
Number of Power Cords 1
Efficiency at Full Load 72.0 %
Batteries & Runtime
Battery type Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time 6hour(s)
Communications & Management
Control panel LED status display with On Line : On Battery : Replace Battery and Overload indicators
Audible Alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rating 255Joules
Maximum Height 282mm , 28.2cm
Maximum Width 132mm , 13.2cm
Maximum Depth 259mm , 25.9cm
Net Weight 8.98kg
Shipping weight 10.21kg
Shipping Height 394mm , 39.4cm
Shipping Width 203mm , 20.3cm
Shipping Depth 384mm , 38.4cm
Color Black
Operating Environment 0 – 40 °C
Operating Relative Humidity 0 – 95 %
Operating Elevation 0-3000meters
Storage Temperature -15 – 45 °C
Storage Relative Humidity 0 – 95 %
Storage Elevation 0-15000meters
Audible noise at 1 meter from surface of unit 45.0dBA
Warranty 1 Year
