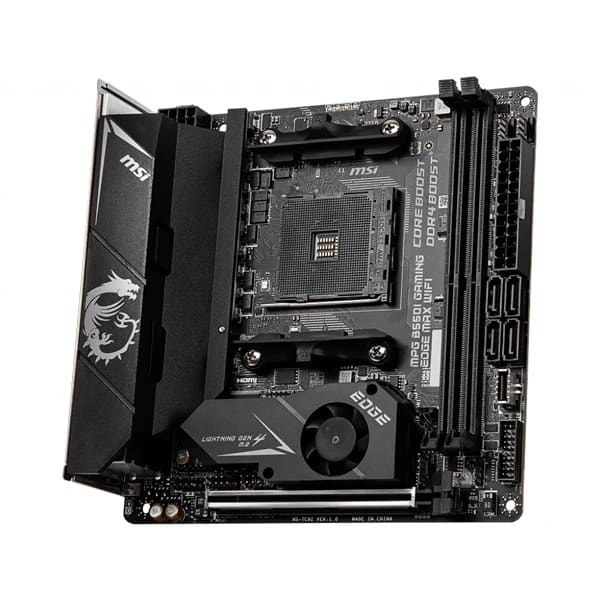

Msi Mpg B550i Gaming Edge Max WiFi Mini-ITX Motherboard

Availability:

Out of stock


  • Supports DDR4 Memory, up to 4600(OC) MHz
  • Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2, AMD Turbo USB 3.2 Gen 2 10Gbps and Front USB Type-C connector
  • Enhanced Power Design: 8+2+1 Digital Power Design with Dr.MOS 60A, Core Boost, DDR4 Boost
  • Premium Thermal Solution: Extended Heatsink Design, M.2 Shield Frozr and 8 layer PCB with 2oz Thickened Copper are built for high performance system and non-stop gaming experience
  • 2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • HDMI 2.1: Support 4K display with up to 4096×2160@60Hz
  • Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
  • Audio Boost: Reward your ears with studio grade sound quality
  • Flash BIOS Button with Optmized ClearCMOS Function: Simply use a USB key to flash any BIOS within seconds. Restore the BIOS to the default settings without any additional actions.

26,700

Out of stock

Compare

MSI MPG B550i GAMING EDGE MAX WIFI MINI-ITX MOTHERBOARD



GAME IN STYLE

The MPG series brings out the best in gamers by allowing full expression in color with advanced RGB lighting control and synchronization. Experiment on another level of personalization with a front LED strip that provides convenient in-game and real time notifications. With the MPG series, transform your equipment into the center of attention and top leaderboards in style.

THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE

With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end CPU to run in full speed with MSI motherboards.

M.2 SHIELD FROZR WITH FROZR HEATSINK DESIGN

World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance. Frozr Heatsink Design features a double ball bearings fan to help improve better airflow for M.2 devices.

FULLY CONTROLLABLE IN BIOS AND SOFTWARE

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you to check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

OPTIMIZED FOR WATER COOLING

Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.

LIGHTNING GEN 4 M.2

Utilizing 3rd Gen Ryzen processors, MSI B550 motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.

FAST AND FUTURE-READY STORAGE

MSI B550 motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.

EXTREME STABILITY & COMPATIBILITY TESTING

MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules, configurations and even improve overclocking.

A HUGE STEP OF DDR PERFORMANCE

MSI OC LAB does not merely work hard on extreme overclocking. Compared to B450 motherboard memory A-XMP profile, MSI does have great improvement on performance and efficiency for B550 motherboards. Easy to enable A-XMP profile with auto power settings to get the best memory speed and stability.

EASY OVERCLOCKING WITH A-XMP PROFILE

The A-XMP in MSI BIOS are tested and certified by MSI OC LAB. It is easy to enable with auto power settings to get the best memory speed and stability.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.

DEDICATED HIGH DEFINITION AUDIO PROCESSOR

Make sure you enjoy the purest sound quality in both stereo and surround sound.

HIGH QUALITY AUDIO CAPACITORS

A high fidelity sound experience with exceptional acoustics and realism for studio level headphones is ensured.

HIGH QUALITY AUDIO JACKS WITH S/PDIF

Keep your sound perfect by transmit your audio with pure digital signal.

SKU: MPG-B550I-GAMING-EDGE-MAX-WIFI Category: Tags: , , ,
MOTHERBOARD CHIPSET

MOTHERBOARD FORM FACTOR

MOTHERBOARD SOCKET

CPU Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
Chipset AMD B550 Chipset
Memory 2x DDR4 memory slots, support up to 64GB
Supports DDR4 1866/ 2133/ 2400/ 2667 MHz by JEDEC
Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4466/ 4533 / 4600+ MHz by A-XMP OC MODE
1DPC 1R max speed 4600 MHZ
1DPC 2R max speed 4000 MHZ
Dual channel memory architecture
Supports non-ECC UDIMM memory
Supports un-buffered memory
Expansion Slots 1x PCIe 4.0 / 3.0 x16 slot 1
1. The supported specification depends on installed processor.
Onboard Graphics 1x HDMI 2.0:/ 2.1 port, supports a maximum resolution of 4096×2160 @60Hz1
Maximum shared memory of 2048 MB
1. Available for the processor with integrated graphics.
Storage AMD B550 Chipset
4x SATA 6Gb/s ports
2x M.2 slots [Key M]
M2 1 slot [from AMD Processor]
Supports PCIe 4.0/3.0 x4 1
Supports SATA 6Gb/s
Supports 2260/ 2280 storage devices
M2_2 slot [from AMD B550 chipset]
Supports PCIe 3.0×4
Supports 2280 storage devices
1. The supported specification depends on installed processor.
RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB AMD B550 Chipset
3x USB 3.2 Gen 1 5Gbps ports [1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector]
4x USB 2.0 ports [2 Type-A ports on the back panel, 2 ports through the internal USB 2.0 connector]
AMD Processor
2x USB 3.2 Gen 2 10Gbps ports [1 Type-C port and 1 Type-A port] on the back panel
2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Audio Realtek® ALC1200 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
LAN 1x Realtek® RTL8125B 2.5Gbps LAN controller
Wireless LAN & Bluetooth® Intel® AX200
The Wireless module is pre-installed in the M.2 [Key-E] slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz [160MHz] up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.1
Internal connectors 1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
4x SATA 6Gb/s connectors
2x M.2 slots [M-Key]
1x USB 3.2 Gen 1 5Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector [supports additional 2 USB 3.2 Gen 1 5Gbps ports]
1x USB 2.0 connector [supports additional 2 USB 2.0 ports]
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
1x 4-pin system fan connector
1x Front panel audio connector
2x System panel connectors
1x 3-pin RAINBOW LED connector
1x Clear CMOS jumper
4x EZ Debug LED
Back panel ports 1. USB 2.0
2. WiFi / Bluetooth
3. USB 3.2 Gen 2 10Gbps(Type-A)
4. 2.5G LAN
5. HD Audio Connectors
6. Flash BIOS Button
7. PS/2 Combo Port
8. HDMI 2.1
9. USB 3.2 Gen 2 10Gbps(Type-C)
10. Clear CMOS
11. USB 3.2 Gen 1 5Gbops(Type-A)
12. Optical S/PDIF OUT
I/O Controller NUVOTON NCT6687-R Controller Chip
Dimensions Mini-ITX Form Factor
6.7 in. x 6.7 in. (17.0 cm x 17.0 cm)
Warranty 3 Years

Brand

MSI
