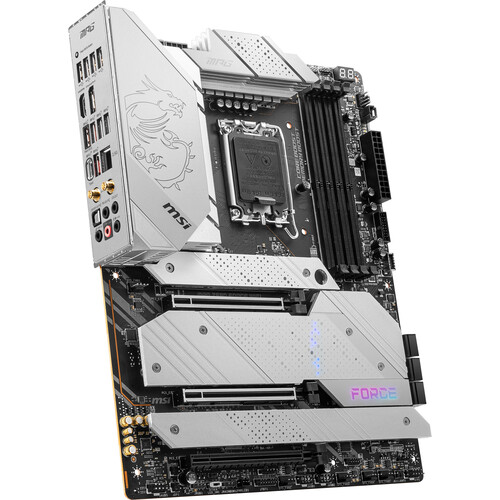

Msi Meg Z690 Force WiFi Intel 12th Gen LGA1700 DDR5 ATX Motherboard

Availability:

Out of stock


59,700

Out of stock

Compare

MSI MEG Z690 FORCE WIFI INTEL 12TH GEN LGA1700 DDR5 ATX MOTHERBOARD

msi z690 force wifi thermal

  • MSI MEG Z690 FORCE WIFI motherboard Supports 12th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1700 socket
  • Supports DDR5 Memory, up to 6666+(OC) MHz
  • Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2×2
  • Enhanced Power Design: Direct 18+1+1 phases power, dual 8-pin CPU power connectors, Core Boost, Memory Boost
  • Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
  • MYSTIC LIGHT: 16.8 million colors / fancy lighting effects controlled in one click. MSI MEG Z690 FORCE WIFI MYSTIC LIGHT SYNC supports RGB, RAINBOW(ARGB), Corsair LED strips and Ambient devices.
  • 2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • High Quality PCB: 8-layer PCB made by 2oz thickened copper and server grade level material
  • Pre-installed I/O Shield: Better EMI protection and more convenience for installation



SKU: MPG-Z690-FORCE-WIFI Category: Tags: , , , ,
MOTHERBOARD CHIPSET

Motherboard Brand and Chipset

MOTHERBOARD FORM FACTOR

MOTHERBOARD SOCKET

CPU
Chipset Intel Z690
CPU Socket LGA 1700

Back Panel I/O

USB 5 x USB 3.1 / USB 3.2 Gen 2 Type-A
4 x USB 2.0 Type-A
1 x USB 3.2 Gen 2×2 Type-C
Thunderbolt None
Display 1 x DisplayPort 1.4
1 x HDMI 2.1
Audio 1 x S/PDIF
5 x 3.5 mm
Ethernet / Controller 1 x Intel I225-V 2.5Gigabit
Wi-Fi Antenna 2 x Connector
Buttons BIOS Flashback

Memory

Memory Slots 4 x 288-Pin
Memory Support DDR5 4000, 4800, 5600, 6666 MHz
Maximum Capacity 128 GB
Channel Architecture Dual Channel
ECC Support Non-ECC Unbuffered

Storage Expansion

SATA 6 x SATA III
M.2 1 x M Key 2260, 2280, 22110 (PCIe 4.0 x4)
1 x M Key 2260, 2280 (PCIe 4.0 x4)
1 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4)
1 x M Key 2242, 2260, 2280 (PCIe 3.0 x4, SATA III)
1 x M Key 2260, 2280 (PCIe 4.0 x4, SATA III)
U.2 None
Optane Memory Support Yes
RAID Support RAID 0, 1, 10 (SATA)
RAID 0, 1, 5, 10 (M.2)

Internal I/O

Expansion Slots 1 x PCIe 5.0 x16
1 x PCIe 5.0 x16 (x8 mode)
1 x PCIe 3.0 x16 (x4 mode)
USB 2 x USB 2.0 Header (Supports 4 USB Type-A Port)
1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)
1 x USB 3.1 / USB 3.2 Gen 2 Header (Supports 1 USB Type-C Port)
Multi-GPU Support AMD CrossFireX
Air Cooling 6 x 4-Pin System
1 x 4-Pin CPU
Liquid Cooling 1 x 4-Pin Pump
Power Connectors 1 x 24-Pin Mainboard
2 x 8-Pin ATX
Security Chassis Intrusion, TPM Header
LED Header 1 x RGB
Diagnostics 2-Digit Debug LED, Clear CMOS

Front Panel I/O

I/O Connection Headers AAFP, USB 3.1 / USB 3.2 Gen 1, USB 3.1 / USB 3.2 Gen 2

Audio

Audio Codec Realtek ALC4080 (8-Channel)

Wireless

Bluetooth 5.2
Wi-Fi Wi-Fi 6E (802.11ax) (MU-MIMO)
Module Support 1 E Key M.2

Software

Supported Operating Systems Windows 10 (64-Bit)
Windows 11 (64-Bit)

Physical

Form Factor ATX
Dimensions 12.0 x 9.6″ / 30.5 x 24.4 cm

Brand

MSI
