| Model |
| Brand |
GIGABYTE |
| Model |

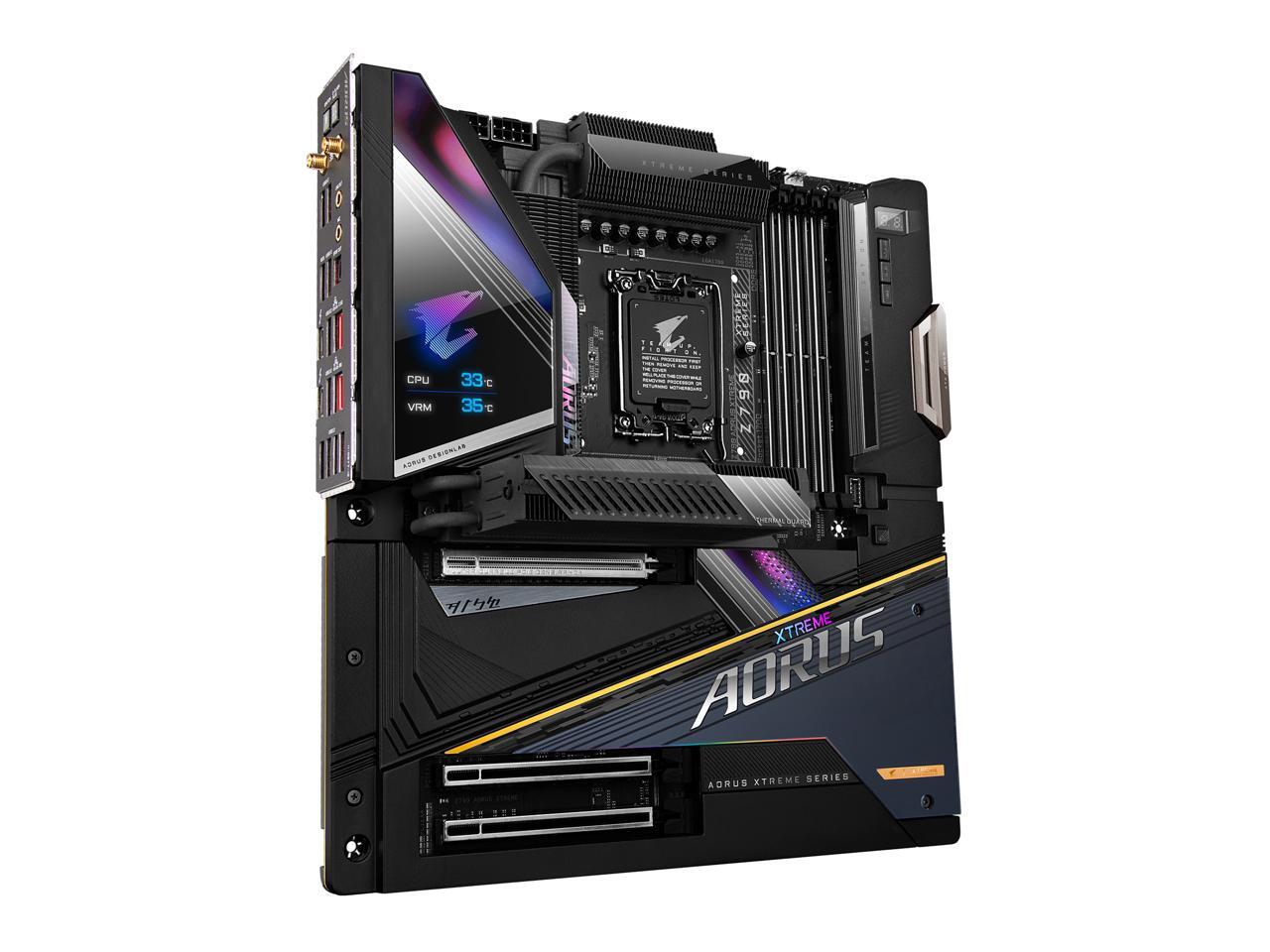

Z790 AORUS XTREME |
| Part Number |
Z790 AORUS XTREME (rev. 1.0) |
| Supported CPU |
| CPU Socket Type |
LGA 1700 |
| CPU Type |
LGA1700 socket: Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors* |
| L3 cache varies with CPU |
| * Please refer to “CPU Support List” for more information. |
| Chipsets |
| Chipset |
Intel Z790 |
| Memory |
| Number of Memory Slots |
4x288pin (DDR5) |
| Memory Standard |
Support for DDR5 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) |
| / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules |
| 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
| Support for Extreme Memory Profile (XMP) memory modules |
| Maximum Memory Supported |
128GB |
| Channel Supported |
Dual Channel |
| Expansion Slots |
| PCI Express 5.0 x16 |
1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) |
| * The PCIEX16 slot shares bandwidth with the M2C_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector. |
| * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
| PCI Express 3.0 x16 |
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) |
| 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) |
| Support for AMD CrossFire technology (PCIEX16 and PCIEX4) |
| Storage Devices |
| SATA 6Gb/s |
4 x SATA 6Gb/s |
| M.2 |
CPU: |
| 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU) |
| 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) |
|
| Chipset: |
| 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) |
| 1 x M.2 connector (Socket 3, M key, type 2280/2260 SATA and PCIe 4.0 x4/ x2 SSD support) (M2M_SB) |
| SATA RAID |
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices |
| RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Onboard Audio |
| Audio Channels |
ESS ES9280AC DAC chip + 2 ESS ES9080 chips |
| DTS® Sound Unbound™ |
| High Definition Audio |
| 2-channel |
| Support for S/PDIF Out |
| * The line out jack and the optical S/PDIF out connector can only be used one at a time. |
| Onboard LAN |
| LAN Chipset |
Marvell AQtion AQC107 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN1) |
| Intel 2.5GbE (2.5 Gbps/1 Gbps/100 Mbps) (LAN2) |
| Max LAN Speed |
10Gbps + 2.5Gbps |
| Wireless LAN |
Intel Killer Wi-Fi 6E AX1690 |
| WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands |
| Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
| * Actual data rate may vary depending on environment and equipment. |
| Bluetooth |
BLUETOOTH 5.3 |
| Rear Panel Ports |
| Back I/O Ports |
1 x Q-Flash Plus button |
| 1 x OC Ignition button |
| 2 x SMA antenna connectors (2T2R) |
| 2 x Thunderbolt 4 connectors (USB Type-C ports, with USB 3.2 Gen 2 support) |
| 10 x USB 3.2 Gen 2 Type-A ports (red) |
| 2 x RJ-45 ports |
| 1 x optical S/PDIF Out connector |
| 2 x audio jacks |
| * The mic in jack supports only mono microphone input |
| Internal I/O Connectors |
| Onboard USB |
1 x USB Type-C header, with USB 3.2 Gen 2×2 support |
| 2 x USB 3.2 Gen 1 headers |
| 1 x USB 2.0/1.1 header |
| Other Connectors |
1 x CPU fan header |
| 1 x water cooling CPU fan header |
| 4 x system fan headers |
| 4 x system fan/water cooling pump headers |
| 1 x noise detection header |
| 2 x integrated extension cable headers for addressable and RGB LED strips |
| 4 x SATA 6Gb/s connectors |
| 5 x M.2 Socket 3 connectors |
| 1 x front panel header |
| 2 x temperature sensor headers |
| 1 x power button |
| 1 x reset button |
| 1 x Clear CMOS button |
| Physical Spec |
| Form Factor |
E-ATX Form Factor |
| LED Lighting |
RGB |
| Dimensions (W x L) |
30.5cm x 28.5cm |
| Power Pin |
1 x 24-pin ATX main power connector |
| 2 x 8-pin ATX 12V power connectors |
| Windows Compatibility |
| Windows 11 |
Support for Windows 11 64-bit |
| Support for Windows 10 64-bit |
