GIGABYTE Z690M AORUS ELITE DDR4
Free Shipping
GIGABYTE Z690M AORUS ELITE DDR4

Gigabyte Z690M Aorus Elite DDR4 Intel 12th Gen LGA 1700 Motherboard

Availability:

Out of stock
Add to wishlist
Compare

₹18,999 ₹34,000

Out of stock

Compare

Gigabyte Z690M Aorus Elite DDR4 Intel 12th Gen LGA 1700 Motherboard

GIGABYTE Z690M AORUS ELITE DDR4 Motherboard with Direct 12+1+2 Phases Digital VRM Design, PCIe 5.0 Design, Fully Covered Thermal Design ,3 x PCIe 4.0 M.2 with Thermal Guard, Intel® 2.5GbE, Rear USB 3.2 Gen2x2 TYPE-C®, RGB FUSION 2.0, Q-Flash Plus

  • Supports 12th Gen Intel® Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Direct 12+1+2 Digital VRM Design with 60A Power Stage* and Tantalum Polymer Capacitor
  • Shielded Memory Routing to Avoid Interference
  • Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
  • Fast Intel® 2.5GbE LAN with Bandwidth Management
  • 3 x Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard
  • SuperSpeed USB 3.2 Gen2x2 TYPE-C® delivers up to 20Gb/s transfer speeds
  • Pre-installed IO Shield for easy and quick installation
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
SKU: Z690M-AORUS-ELITE-DDR4 Category: Tags: , , , , , , ,
MOTHERBOARD CHIPSET

Motherboard Brand and Chipset

MOTHERBOARD FORM FACTOR

MOTHERBOARD SOCKET

Model
Brand GIGABYTE
Model Z690M A ELITE DDR4
Supported CPU
CPU Socket Type 1700
CPU Type 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supported CPU Technologies Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Chipsets
Chipset Z690
Memory
Number of Memory Slots 4 x DDR4 DIMM Slots
Memory Standard DDR4
Maximum Memory Supported 128 GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 1
PCI Express x4 1
PCI Slots 1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 4.0 standard.) (Note), 2 x PCI Express x1 slots (The PCIEX1 slot conforms to PCI Express 3.0 standard.)
Storage Devices
SATA RAID Raid 0, 1, 5, 10
Additional RAID Controller 6 x SATA 6Gb/s connectors
Onboard Video
Onboard Video Chipset Intel® Z690 Express Chipset
Onboard Audio
Audio Channels 2/4/5.1/7.1-channel
Audio Chipset Realtek audio codec
Onboard LAN
LAN Chipset Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Max LAN Speed 10/100/1000

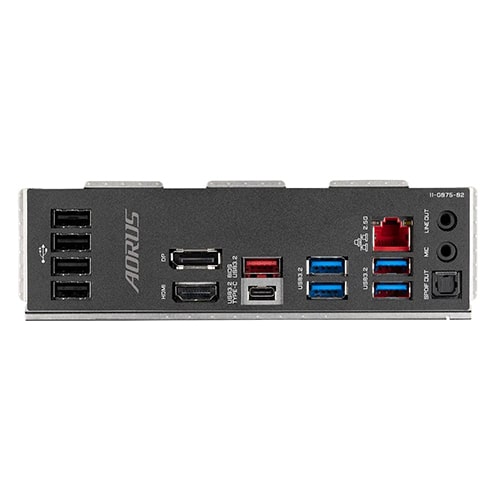

Rear Panel Ports
USB 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header 1 x USB 3.2 Gen 2 Type-A ports (red)
S/PDIF Out Support for S/PDIF Out
Audio Ports 2 x audio jacks
Video Ports 1 x DisplayPort and 1 x HDMI
HDMI 1 x HDMI
Onboard USB
Onboard USB 1 x USB Type-C® header, with USB 3.2 Gen 1 support; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers
Onboard 1394
Onboard 1394 N/A
Physical Spec
Form Factor Micro ATX
Power Pin 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector
Dimensions 24.4 x 24.0 cm
