| WIRELESS |
| Standards |
Wi-Fi 6 |
| IEEE 802.11ax/ac/n/a 5 GHz |
| IEEE 802.11ax/n/b/g 2.4 GHz |
| WiFi Speeds |
AX5400 |
| 5 GHz: 4804 Mbps (802.11ax, HE160) |
| 2.4 GHz: 574 Mbps (802.11ax) |
| WiFi Range |
3 Bedroom Houses |
|

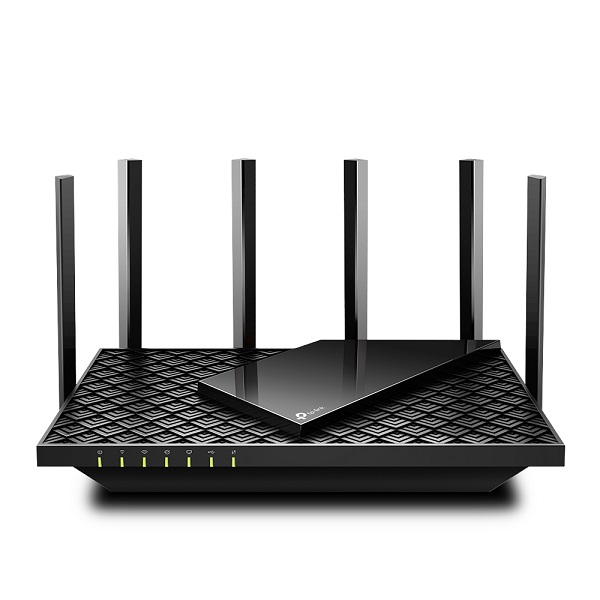

| 6× Fixed High-Performance Antennas |
| Multiple antennas form a signal-boosting array to cover more directions and large areas |
|
| Beamforming |
| Concentrates wireless signal strength towards clients to expand WiFi range |
|
| High-Power FEM |
| Improves transmission power to strengthen signal coverage |
|
| 4T4R |
| Multiple streams in the same band strengthen the fault tolerance in transmission |
| WiFi Capacity |
High |
|
| Dual-Band |
| Allocate devices to different bands for optimal performance |
|
| 4×4 MU-MIMO |
| Simultaneously communicates with multiple MU-MIMO clients |
|
| OFDMA |
| Simultaneously communicates with multiple Wi-Fi 6 clients |
|
| Airtime Fairness |
| Improves network efficiency by limiting excessive occupation |
|
| DFS |
| Access an extra band to reduce congestion |
|
| 6 Streams |
| Connect your devices to more bandwidth |
| Working Modes |
Router Mode |
| Access Point Mode |
| SECURITY |
| Network Security |
SPI Firewall |
| Access Control |
| IP & MAC Binding |
| Application Layer Gateway |
|
| HomeShield Security |
|
| Real-Time IoT Protection |
| Malicious Site Blocker |
| Intrusion Prevention System |
| DDoS Attack Prevention |
| Home Network Scanner |
| Guest Network |
1× 5 GHz Guest Network |
| 1× 2.4 GHz Guest Network |
| VPN Server |
• OpenVPN |
| • PPTP |
| • L2TP |
| VPN Client |
• OpenVPN |
| • PPTP |
| • L2TP |
| WiFi Encryption |
WPA |
| WPA2 |
| WPA3 |
| WPA/WPA2-Enterprise (802.1x) |
| HARDWARE |
| Processor |
1 GHz Dual-Core CPU |

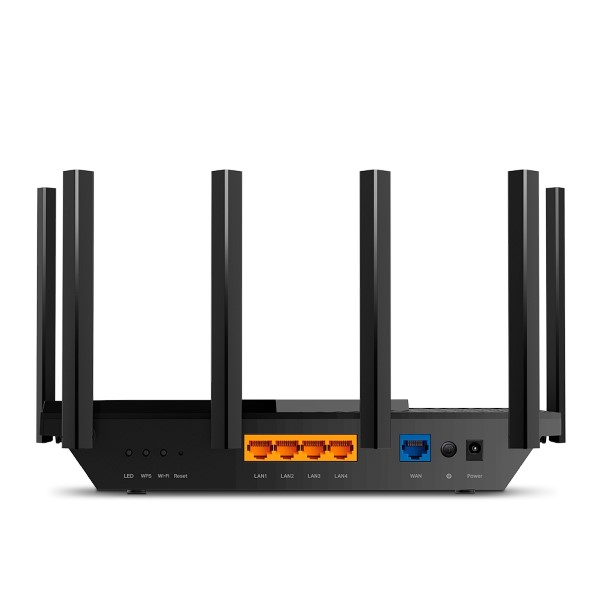

| Ethernet Ports |
• 1× 2.5 Gigabit WAN/LAN Port |
| • 1× Gigabit WAN/LAN Port |
| • 3× Gigabit LAN Ports |

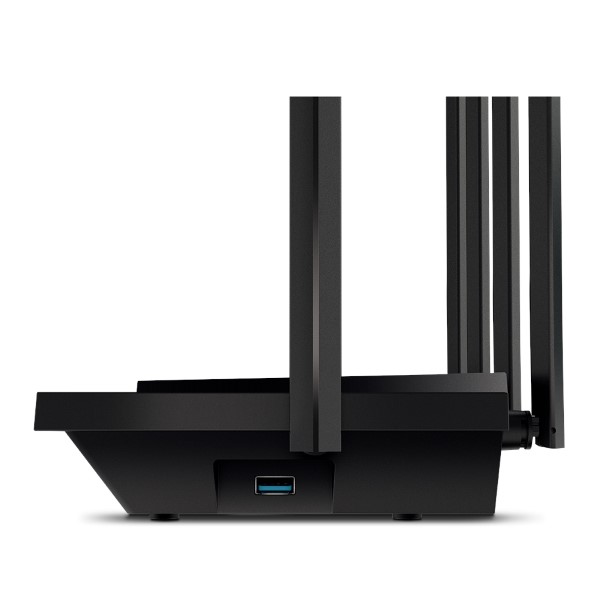

| USB Support |
1× USB 3.0 Port |
|
| Supported Partition Formats: |
| NTFS, exFAT, HFS+, FAT32 |
|
| Supported Functions: |
| Apple Time Machine |
| FTP Server |
| Media Server |
| Samba Server |
| Buttons |
Wi-Fi On/Off Button |
| Power On/Off Button |
| LED On/Off Button |
| WPS Button |
| Reset Button |
| Power |
12 V ⎓ 2.5 A |
| SOFTWARE |
| Protocols |
IPv4 |
| IPv6 |
| Service Kits |
HomeShield |
|
| OneMesh™ |
OneMesh™ Supported |
| Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. |
|
|
| Parental Controls |
HomeShield Parental Controls |
|
| Custom Profiles |
| Professional Content Filter Library |
| Family Time |
| Bedtime |
| Off Time |
| Time Rewards |
| Family Online Time Ranking |
| Pause the Internet |
| Weekly and Monthly Reports |
| WAN Types |
Dynamic IP |
| Static IP |
| PPPoE |
| PPTP |
| L2TP |
| Quality of Service |
QoS by Device |
| Cloud Service |
Auto Firmware Upgrade |
| TP-Link ID |
| DDNS |
| NAT Forwarding |
Port Forwarding |
| Port Triggering |
| DMZ |
| UPnP |
| Virtual Server |
| IPTV |
IGMP Proxy |
| IGMP Snooping |
| Bridge |
| Tag VLAN |
| DHCP |
Address Reservation |
| DHCP Client List |
| Server |
| DDNS |
TP-Link |
| NO-IP |
| DynDNS |
| Management |
Tether App |
|
| OTHER |
| System Requirements |
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser |
|
| Cable or DSL Modem (if needed) |
|
| Subscription with an internet service provider (for internet access) |
| Certifications |
FCC, CE, RoHS |
| Environment |
Operating Temperature: 0℃~40℃ (32℉ ~104℉) |
| Storage Temperature: -40℃~70℃ (-40℉ ~158℉) |
| Operating Humidity: 10%~90% non-condensing |
| Storage Humidity: 5%~90% non-condensing |
| TEST DATA |
| WiFi Transmission Power |
CE: |
| <20dBm{2.4GHz} |
| <23dBm{5.15GHz~5.35GHz} |
| <30dBm{5.47GHz~5.725GHz} |
| FCC: |
| <24dBm{5.25GHz~5.35GHz&5.47GHz~5.725GHz } |
| <30dBm{2.4GHz &5.15GHz~5.25GHz&5.725GHz~5.825GHz } |
| WiFi Reception Sensitivity |
2.4GHz: |
| 11ac VHT20 MCS0:-94.5dBm |
| 11ac VHT20 MCS8:-72.5dBm |
| 11ac VHT40 MCS0:-92.5dBm |
| 11ac VHT40 MCS9:-69.5dBm |
| 11ax HE20 MCS0:-95dBm |
| 11ax HE20 MCS11:-64.5dBm |
| 11ax HE40 MCS0:-92.5dBm |
| 11ax HE40 MCS11:-62dBm |
| 5GHz: |
| 11ac VHT20 MCS0:-97dBm |
| 11ac VHT20 MCS8:-74dBm |
| 11ac VHT40 MCS0:-95dBm |
| 11ac VHT40 MCS9:-70dBm |
| 11ac VHT80 MCS0:-91.5dBm |
| 11ac VHT80 MCS9:-66dBm |
| 11ac VHT160 MCS0:-86dBm |
| 11ac VHT160 MCS9:-61dBm |
| 11ax HE20 MCS0:-95dBm |
| 11ax HE20 MCS11:-64dBm |
| 11ax HE40 MCS0:-91.5dBm |
| 11ax HE40 MCS11:-62dBm |
| 11ax HE80 MCS0:-88dBm |
| 11ax HE80 MCS11:-58dBm |
| 11ax HE160 MCS0:-85.5dBm |
| 11ax HE160 MCS11:-55dBm |
| PHYSICAL |
| Dimensions (W×D×H) |
10.7 × 5.8 × 1.9 in |
| (272.5 × 147.2 × 49.2 mm) |
| Package Contents |
Wi-Fi Router Archer AX72 |
| Power Adapter |
| RJ45 Ethernet Cable |
| Quick Installation Guide |
